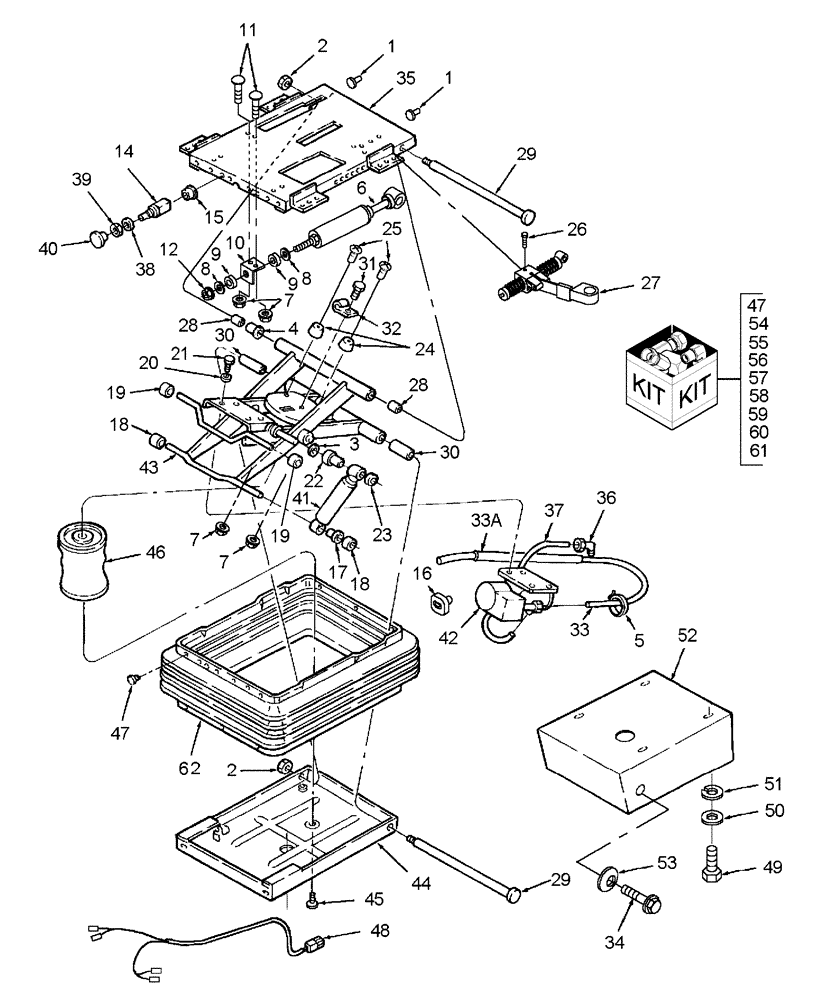

Запчасти Case IH WDX1701 (019) - SEAT, AIR SUSPENSION, LOWER (90) - PLATFORM, CAB, BODYWORK AND DECALS

86618598

SEAT ASSY.

Complete

1шт.

WDX1101 & WDX1701 Only

1шт.

Includes: Upper & Lower, Pages 019 & 020

1шт.

86618599

SEAT ASSY.

Complete

1шт.

WDX901-Only

1шт.

86555664

SUSPENSION

Air

1шт.

Includes: Ref.s 1 thru 33A & 35 thru 48

1шт.

1

86508390

BUMPER

Rubber, Horiz.

2шт.

2

232-4146

NUT,3/8"-16, GC

1шт.

3

86508384

SPACER

Shock

1шт.

4

9845757

DRIVE BUSHING

Shock

1шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

5шт.

6

NSS

NOT SOLD SEPARAT

Shock Absorber, Part of F/Aft Shock Abs. Kit Ref. 54

1шт.

7

280129

NUT,1/4"-20

4шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

2шт.

9

9845774

RUBBER WASHER

2шт.

10

86508385

BRACKET

Shock Mounting

1шт.

11

88715

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 5, Full Thd

2шт.

12

280736

NUT,5/16"-18, GC

1шт.

13

NSS

NOT SOLD SEPARAT

Serial # Decal

1шт.

14

86556263

CONTROL VALVE

Air

1шт.

15

NSS

NOT SOLD SEPARAT

Connector, 1/4" Tube to NPT, Part of Air Line Fit Kit Ref. 57

1шт.

16

276467

BUMPER

1шт.

17

86000902

BUSHING

Shock

1шт.

18

NSS

NOT SOLD SEPARAT

Roller, Part of Roller & Bearing Kit Ref. 55

2шт.

19

NSS

NOT SOLD SEPARAT

Roller, Delrin, Part of Roller & Bearing Kit Ref. 55

2шт.

20

495-31022

WASHER,#10

2шт.

21

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

2шт.

22

276469

NYLON BEARING,0.504" ID x 0.628" OD x 0.562"

Shock Sleeve, Upper Bearing

1шт.

23

276801

PUSH-ON NUT

Push, 1/2"

1шт.

24

86508389

BUMPER

2шт.

25

280241

SCREW,Sl Fil Hd, 1/4" - 20 x 7/8"

2шт.

26

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

27

86000906

LATCH

1шт.

28

NSS

NOT SOLD SEPARAT

Roller, Delrin, Narrow, Part of Roller & Bearing Kit Ref. 55

2шт.

29

9845764

SHAFT

1шт.

30

276481

TUBE

Tube

2шт.

31

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

32

134579

WIRE CLAMP,J

1шт.

33

NSS

NOT SOLD SEPARAT

Nylon Tube, 1/4 x 26-1/2", Part of Air Line & Fit Kit Ref. 57

1шт.

33a

NSS

NOT SOLD SEPARAT

Flex Tube

1шт.

34

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

35

9845767

HOUSING

Upper

1шт.

36

NSS

NOT SOLD SEPARAT

Male EL 1/4 Tube to 1/8 NPT Connector, Included in Kit Ref. 57 and Kit Ref. 60

1шт.

37

NSS

NOT SOLD SEPARAT

Nylon Tube, 1/4" x 11-5/8", Part of Air Line & Fit Kit Ref. 57

1шт.

38

88502

LOCK WASHER

Int T, Heavy, 5/8"

1шт.

39

425-1110

NUT,5/8"-18, G5

1шт.

40

NSS

NOT SOLD SEPARAT

Air Valve Knob W/ Set Screw, Part of Ref. 14, Air Valve

1шт.

41

NSS

NOT SOLD SEPARAT

Shock Absorber, Part of Suspension Shock Abs. Kit Ref. 59

1шт.

42

NSS

NOT SOLD SEPARAT

Compressor, Part of Compressor & Wire Harness Kit Ref. 56

1шт.

43

86556262

ARM

1шт.

44

86556264

HOUSING

1шт.

45

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

1шт.

46

9845760

SPRING

Air

1шт.

47

9845759

KIT

Boot Button Service; Includes 23 Clips

1шт.

48

NSS

NOT SOLD SEPARAT

Wire Harness, Part of Compressor & Wire Harness Kit Ref. 56

1шт.

49

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

50

495-21038

WASHER,5/16"

4шт.

51

492-11031

LOCK WASHER,5/16"

4шт.

52

86551533

SUPPORT

2шт.

53

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

54

86502152

KIT

Front & Aft Shock Absorber, Includes Ref. 4, 6, 7, 8, 9, 12 & 47

1шт.

55

86520889

ROLLER BEARING

Roller & Bearing, Includes Ref. 4,17,18,19, 22, 23, 28, 30 & 47

1шт.

56

9845753

KIT

Compressor & Wire Harness, Includes Ref. 5, 20, 33, 42, 48, Compressor Bracket, & 2ea Self Tapping Screws, 8 x 1-1/4"

1шт.

57

9845761

KIT

Air Line & Fit, Includes Ref. 5, 15, 32, 33, 36 &37

1шт.

58

9845758

KIT

Suspension Boot, Includes Ref. 47 & 62

1шт.

59

9845755

KIT

Suspension Shock Abs., Includes Ref. 17, 22, 23 & 41

1шт.

60

86520856

KIT

Seat Air Spring, Includes Ref. 36, 46 &47

1шт.

61

86502158

KIT

Seat Isolator Spring, Includes Ref. 27

1шт.

62

NSS

NOT SOLD SEPARAT

Boot; Included in Suspension Boot Kit, Ref. 58

1шт.
