Запчасти Case IH WDX1701 (007) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS

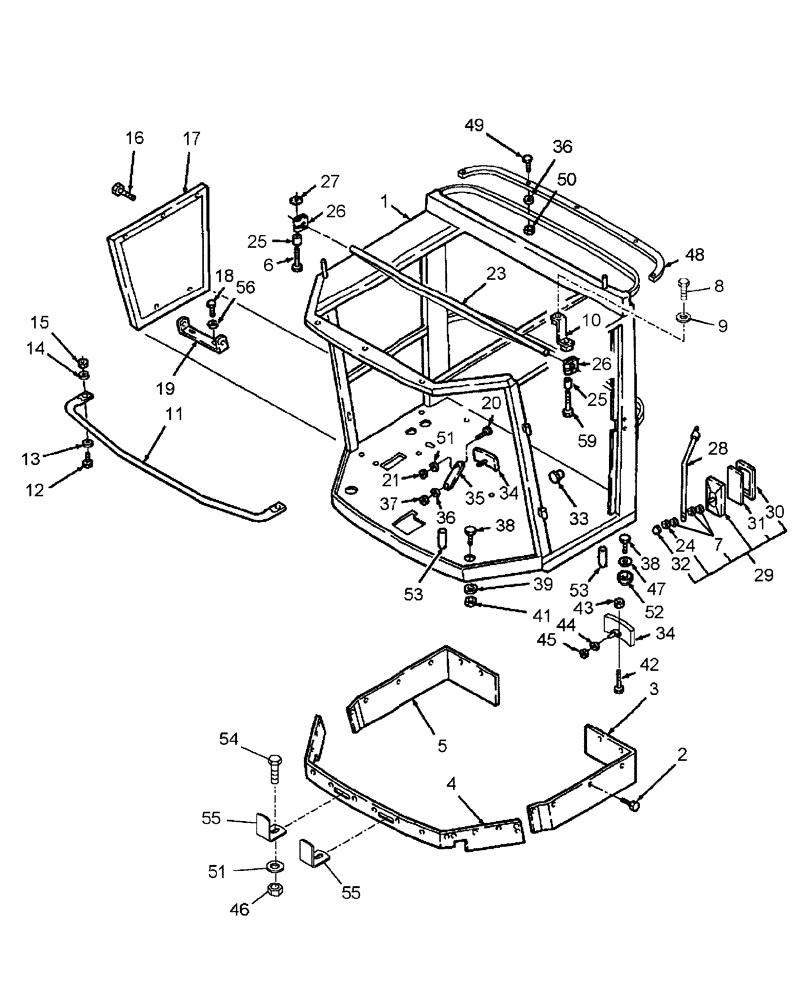

Схема запчастей Case IH WDX1701 - (007) - CAB FRAME (90) - PLATFORM, CAB, BODYWORK AND DECALS
34
37
27
16
5
13
33
3
41
31
29
52
54
38
32
25
46
45
14
44
38
17
26
49
36
12
42
23
51
7
15
4
56
26
53
11
55
6
43
51
19
21
2
28
25
10
35
30
18
20
36
47
9
59
55
8
53
50
24
48
39
34
1

Артикул

Название

Примечание

Количество

1

86526640

FRAME

1шт.

1

281008

SELF-TAP SCREW,Hex Hd, 1/4" x 1"

17шт.

1

86523932

WASHER

17шт.

1

495-21031

WASHER,1/4"

17шт.

2

86636801

SELF-TAP SCREW

WH, S#3 Pt, #10 x 1"

24шт.

3

86625338

PROTECTING COVER

LH

1шт.

4

86621971

SKIRT

Front

1шт.

5

86625340

PROTECTING COVER

RH, Includes: Decal, Ref. 57

1шт.

6

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

7

412328

WASHER

Hardened, M8, Used With Ref. 29

6шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

1шт.

10

86548366

BRACKET

1шт.

11

86624425

HANDRAIL

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

5шт.

13

495-21044

WASHER,3/8"

8шт.

14

492-11038

LOCK WASHER,3/8"

5шт.

15

425-106

NUT,3/8"-16, Cl 5

2шт.

16

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

3шт.

17

86534789

PANEL

Includes: Sealing Strip

1шт.

18

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

695693

SUPPORT

2шт.

20

135270

SERRATED SCREW,5/16" - 18 x 3/4"

15шт.

21

425-285

FLANGE NUT,Flg, 5/16"-18, G5

15шт.

23

86640275

TUBE

Mirror

1шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

25

64127

SPACER

Split Tube

2шт.

26

86640274

CLAMP

2шт.

27

80607

SQUARE NUT,Sq, 1/2"-13

1шт.

28

86583083

SUPPORT

Mirror, LH

1шт.

28

86583084

SUPPORT

Mirror, RH

1шт.

29

82014587

REAR VIEW MIRROR

Includes Glass & Knob, BRITAX # 02*5481

2шт.

30

NSS

NOT SOLD SEPARAT

Guard, Rubber Retaining

2шт.

31

NSS

NOT SOLD SEPARAT

Glass, Mirror

2шт.

32

NSS

NOT SOLD SEPARAT

Knob

2шт.

33

556794

PLUG

Door Hinge Pillar

1шт.

34

86011713

REAR VIEW MIRROR

1шт.

35

9840315

BRACKET

Mirror Includes: Ref. 36 & 37

1шт.

36

492-11025

LOCK WASHER,1/4"

6шт.

37

425-114

NUT,1/4"-28, G5

1шт.

38

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

4шт.

39

86550153

KIT

Includes: Rebound Washer

2шт.

41

232-41412

LOCK NUT,3/4"-10, GC

4шт.

42

840-1416

SCREW,Pan, M4 x 16mm, Cl 4.8

2шт.

43

825-1404

NUT,M4, Cl 8

2шт.

44

492-11031

LOCK WASHER,5/16"

1шт.

45

825-1408

NUT,M8, Cl 8

1шт.

46

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

47

86599521

WASHER

19.8mm ID x 95.3mm OD x 9.53mm Thick

2шт.

48

NSS

NOT SOLD SEPARAT

Support

1шт.

49

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

5шт.

51

492-11031

LOCK WASHER,5/16"

6шт.

52

86017983

KIT

Cab Rear, Includes: Rebound Washer

2шт.

52

86550153

KIT

2шт.

53

86525449

SPACER

4шт.

54

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

55

86554435

BRACKET

2шт.

56

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

57

86630510

DANGER DECAL

Included on Ref. 5 (Not Shown)

1шт.

Выбрано товаров: 59
