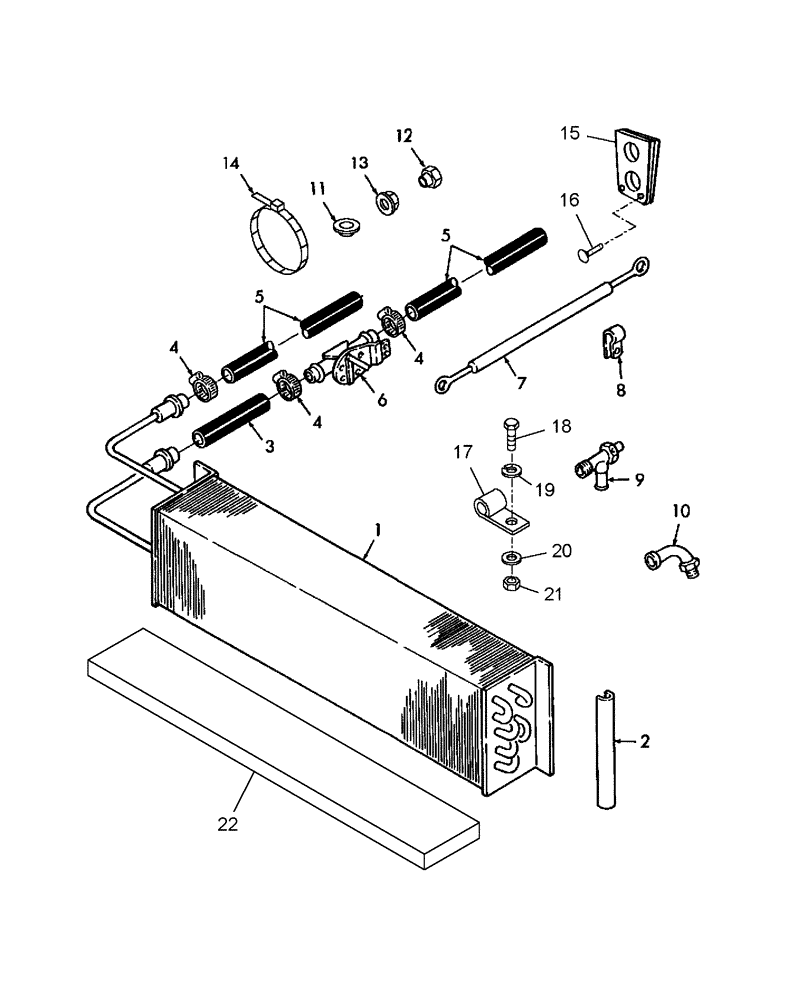

Запчасти Case IH WDX1101 (035) - HEATER CORE (50) - CAB CLIMATE CONTROL

1

632772

HEATER

Heater

1шт.

2

617216

SEALING STRIP

, Serial Range: Cut-Fit

1шт.

3

631239

HOSE,0.62" ID x 4.00", SAE 20R3 Class D2

1шт.

4

9706921

HOSE CLAMP,12.7mm - 35mm

6шт.

5

PL

PROCURE LOCALLY

Hose, Heater

1шт.

6

632773

HYDRAULIC VALVE

Heater

1шт.

7

631594

CABLE

1шт.

8

134859

CLAMP,1/8" ID

.12 x 5/16" Bolt

1шт.

9

83961305

VALVE

1шт.

10

134311

HYD CONNECTOR

1шт.

11

682379

PUSH-ON NUT

Push, 1/4"

1шт.

12

247636

ADAPTER

1шт.

13

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

14

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

15

632273

GROMMET

1шт.

16

84896

SCREW,Slotted Truss Hd, 5/16" - 18 x 3/4"

2шт.

17

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

19

492-11025

LOCK WASHER,1/4"

1шт.

20

495-11028

WASHER,1/4", SAE

1шт.

21

425-104

NUT,1/4"-20, Cl 5

1шт.

22

681009

FOAM INSULATION

1шт.
