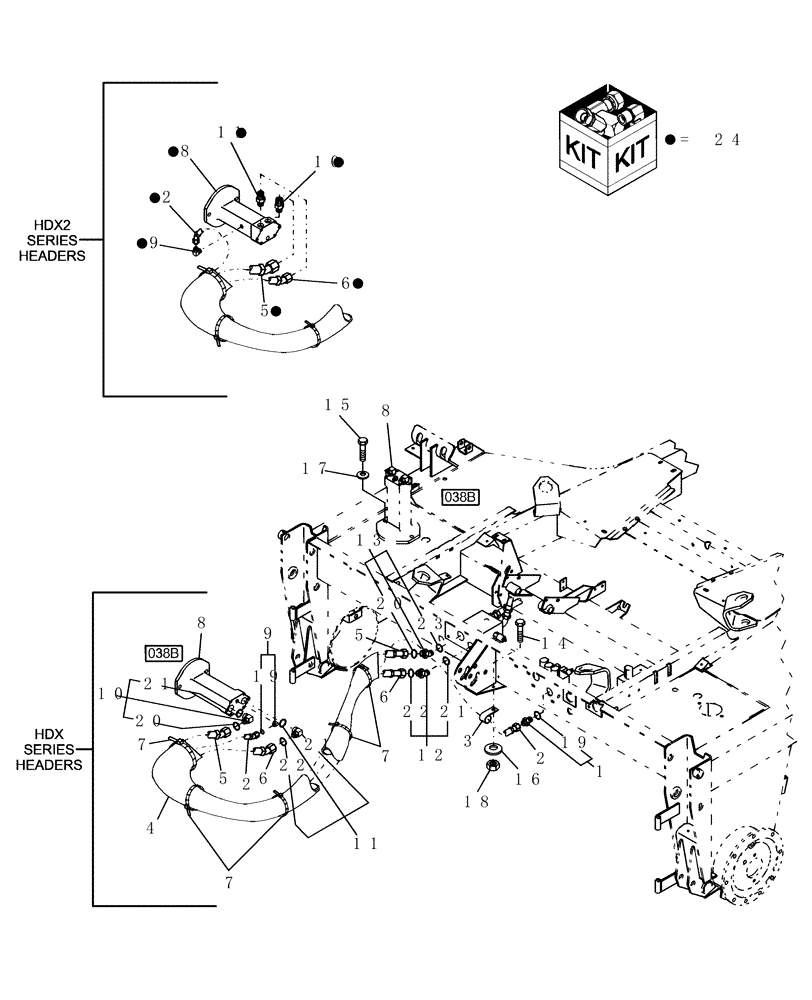

Запчасти Case IH WDX1101 (050A) - HYDRAULIC HEADER DRIVE (35) - HYDRAULIC SYSTEMS

1

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

2

9825898

FLEXIBLE HOSE

3/8" ID x 100"

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

2

86979606

FLEXIBLE HOSE

3/8" ID x 112"

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

3

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

4

86520217

SLEEVE

1шт.

5

9825899

HOSE,25.4mm ID x 1790.7mm L, SAE 100R1

Return, 1" ID x 70.5"

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

5

86979607

FLEXIBLE HOSE

Return, 1" ID x 83"

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

6

9825900

FLEXIBLE HOSE,19.05mm ID x 1765.3mm L, SAE 100R12

Pressure, 3/4" ID x 69.5"

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

6

86979608

FLEXIBLE HOSE,19.05mm ID x 2082.8mm L, SAE 100R12

Pressure, 3/4" ID x 82"

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

7

529070

CABLE TIE,368.3mm L

CABLE STRAP

5шт.

8

86516482

HYDRAULIC MOTOR

Refer to Component Breakdown

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

8

86643697

REMAN-HYD MOTOR

Remanufactured HYDRAULIC MOTOR (Ports Exit Rear Of Pump)

1шт.

8

86643698

CORE-MOTOR HYDRAULIC

Return No, HYDRAULIC MOTOR

1шт.

8

86837566

HYDRAULIC MOTOR

44 CC Hydraulic Motor

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

8

86837566R

REMAN-HYD MOTOR

WDX1101 (10/01-11/04), WDX901 (12/01-11/04)

1шт.

8

86837566C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

8

87298004

REMAN-HYD MOTOR

WDX901 ASN 0013062, HAJWDX1101 ASN HAJ0014163

1шт.

8

87298005

CORE-MOTOR HYDRAULIC

Return Number

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

W/O-Ring, Ref. 19

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

9

218-5281

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

W/O-Ring, Ref. 19

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

10

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

W/ O Rings

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

10

9840329

HYD CONNECTOR

Straight, 3/4" x 1", W/ O Rings

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

11

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

3/4" x 3/4" Tubes, W/ O Rings

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

11

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Straight, 3/4" Tube ORFS - 3/4" Tube ORB, W/ O Rings

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

12

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

1шт.

13

201-318

ELBOW,45 Degree, 1 7/16"-12 x 1 5/16"-12. Adj, ORFS

1шт.

14

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

16

492-11031

LOCK WASHER,5/16"

1шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

16

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

18

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Part of ref. 1 & 9

2шт.

For HDX Series Headers

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

Part of Ref. 1 & 9

2шт.

For HDX2 Series Headers

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

20

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

Part of Ref. 10 & 13

2шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Part of Ref. 10, 11 & 12

3шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Part of Ref. 11 & 12

2шт.

23

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

24

716988006

DIA KIT, HARVESTER

Header Motor Upgrade

1шт.

Kit Used To Convert Eaton Hydraulic Motor to Sauer Motor When Mating WDX901 & WDX1101 to HDX2 Series Sickle Header, P.I.N. HSA0011284 & Prior

1шт.
