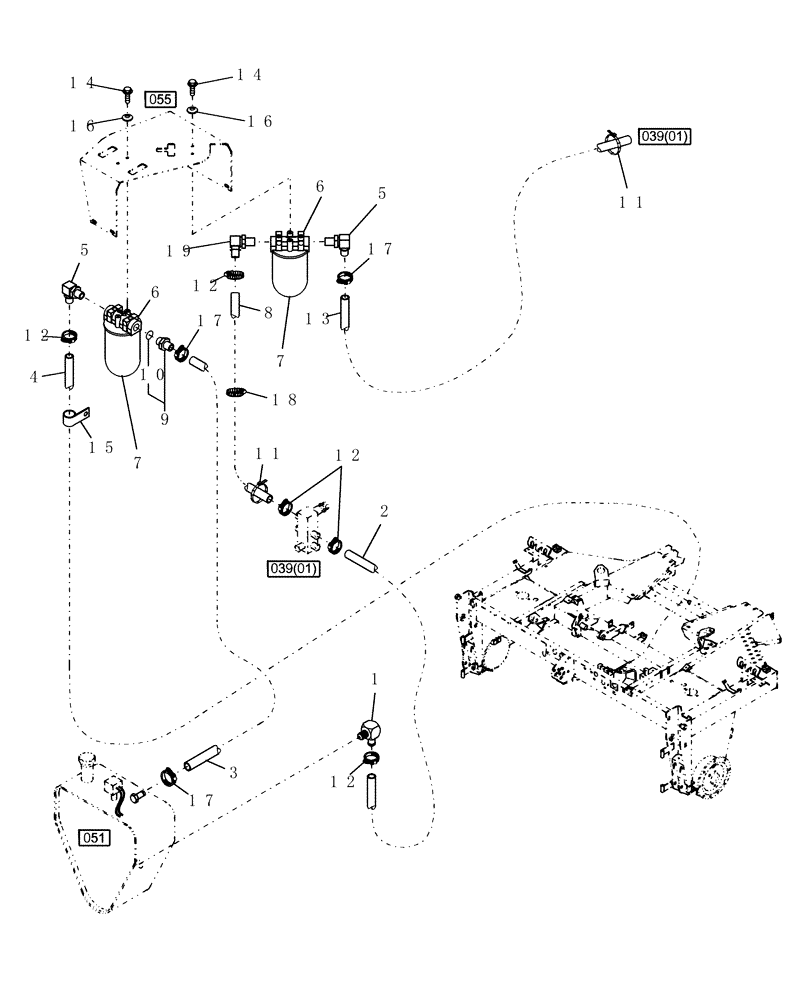

Запчасти Case IH WDX1101 (049[01]) - HYDRAULIC FILTER CIRCUIT (35) - HYDRAULIC SYSTEMS

1

782210

ELBOW

90°

1шт.

2

84022232

HOSE

1шт.

3

86012341

INTAKE AIR HOSE,25.40 mm ID x 375.00 mm, SAE 100 R4

1шт.

4

86536942

HOSE,0.75" ID x 96.00", SAE 100R1 TYPE AT (HT)

1шт.

5

86536898

INSERT

Beaded, 90°

2шт.

6

86514933

HOUSING

Base

2шт.

7

86632018

HYDRAULIC OIL FILTER

2шт.

8

86611780

HOSE,1.00" ID x 36.00", SAE 100R3

1шт.

9

248467

FITTING

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

527350

STRAP

1/2" x 20"

2шт.

12

82012725

HOSE CLAMP,#44, M32-44

4шт.

13

9604654

HOSE,19.00 mm ID x 2700.00 mm, SAE 100 R3

1шт.

14

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

16

492-11031

LOCK WASHER,5/16"

4шт.

17

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

3шт.

18

529070

CABLE TIE,368.3mm L

CABLE STRAP

1шт.

19

9826753

INSERT

Beaded, 90°

1шт.
