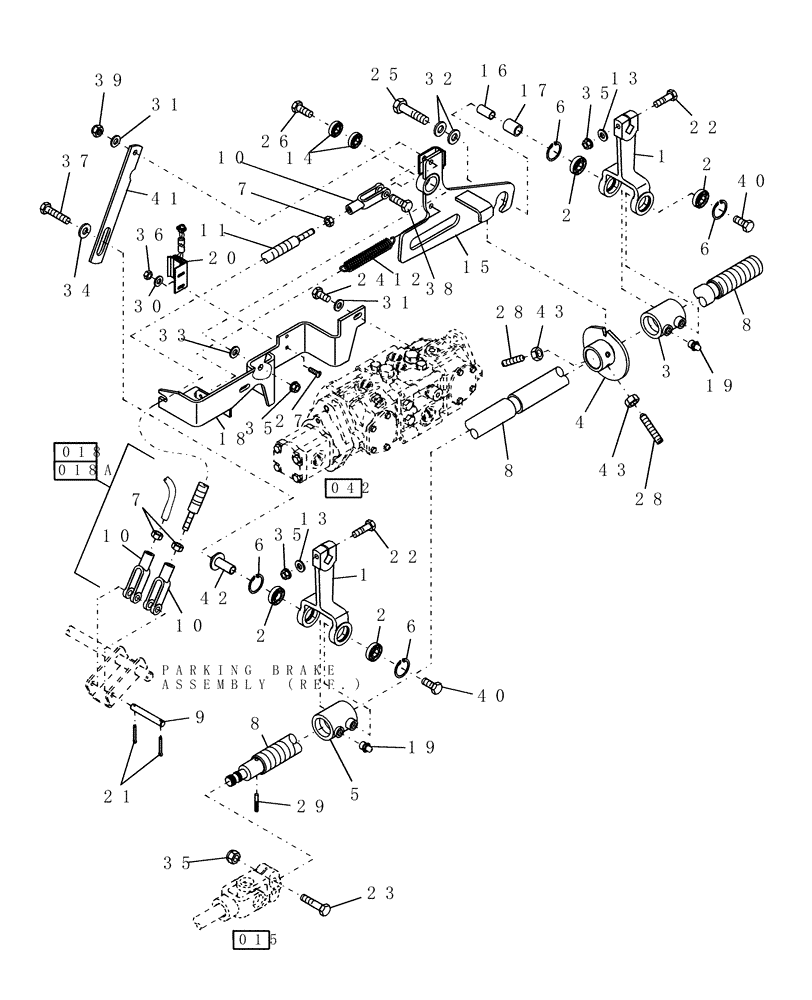

Запчасти Case IH WDX1101 (048A) - PUMP PINTLE ARM & LATCH (35) - HYDRAULIC SYSTEMS

1

86636447

ARM

Pintle, 3/4" ID Square Hole

2шт.

1

87031406

ARM ASSY.

2шт.

Service Only

1шт.

Not Shown; Replaces 86636447, Uses Two Bolts (Ref. 22) Mounted Vertically Through Head

1шт.

2

9808450

BALL BEARING,12mm ID x 32mm OD x 10mm W

4шт.

3

9846134

UNIVERSAL JOINT

RH Thread

1шт.

4

86636445

COLLAR

1шт.

5

9846135

UNIVERSAL JOINT

LH Thread

1шт.

6

800-2132

SNAP RING,M32, Int

4шт.

7

225-14210

NUT,#10-32

1шт.

(2) WDX901; (3) WDX1101

1шт.

8

9842706

SHAFT

17-7/8"

1шт.

9

136764

PIN

5/16" x 3"

1шт.

10

86548096

CLEVIS

1шт.

(2) WDX901; (3) WDX1101

1шт.

11

86548093

FLEXIBLE CABLE

84" Long

1шт.

12

27310

SPRING

1шт.

13

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

2шт.

Used W/ 86636447

1шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

Used W/ 87031406

1шт.

14

D38346

BALL BEARING,10 mm ID x 30 mm OD x 9 mm

2шт.

15

86581078

PLATE

1шт.

16

9844208

SPACER

1/2" I.D. x 5-8" O.D. x 1-1/4" Long

1шт.

17

9844209

SPACER

5/8" I.D. x 7/8" O.D. x 1-1/8" Long

1шт.

18

86636438

BRACKET

1шт.

19

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

20

86539713

SWITCH

1шт.

9842514

KIT

Less Terminals

1шт.

900363

TERMINAL

Pin

3шт.

900364

TERMINAL CONNECTOR

Socket

3шт.

21

432-88

COTTER PIN,1/8" x 1/2"

2шт.

22

426-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 8

2шт.

Used W/ 86636447

1шт.

22

426-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

Used W/ 87031406

1шт.

23

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

2шт.

24

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

25

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

26

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

1шт.

27

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

2шт.

28

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

2шт.

29

38-11628

LOCK PIN,1/4" x 1 3/4", Slotted

1шт.

30

495-31025

WASHER,3/16"

2шт.

31

495-21038

WASHER,5/16"

4шт.

32

495-21056

WASHER,1/2"

2шт.

33

86596653

WASHER,10.3mm ID x 16.2mm OD x 1.91mm Thk

HT, 3/8"

1шт.

34

495-11053

WASHER,1/2", SAE

1шт.

35

232-4146

NUT,3/8"-16, GC

5шт.

36

86625070

NUT,Keps, w/LW,#10-32

2шт.

37

814-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 8.8

1шт.

38

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

1шт.

39

231-5345

FLANGE NUT,Flg, 5/16"-18

GF

1шт.

40

614-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

2шт.

41

86636446

PLATE

1шт.

42

86584869

SPACER

1шт.

43

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.
