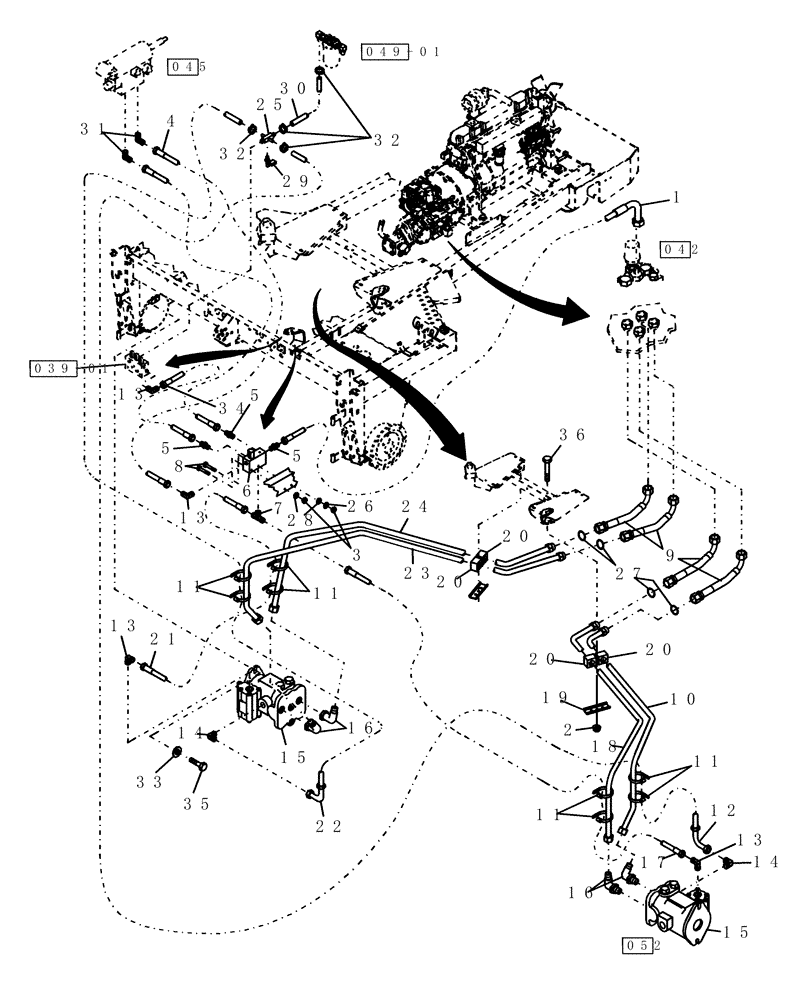

Запчасти Case IH WDX1101 (041A) - HYDRAULIC GROUND DRIVE (35) - HYDRAULIC SYSTEMS

1

9821457

HYDRAULIC HOSE,.375” ID x 84” L

3/4" x 84" Long

1шт.

2

231-5346

FLANGE NUT,Flg, 3/8"-16

2шт.

3

425-104

NUT,1/4"-20, Cl 5

2шт.

4

86513233

HOSE,0.25" ID x 34.00", SAE 100R1

2шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

3шт.

5

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

6

86548795

CONTROL VALVE

Spool, 2 Speed - Refer to Fog. 023

1шт.

7

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

8

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

9

9810802

HOSE,19.05mm ID x 647.7mm L

3/4" x 25-1/2" Long

4шт.

10

86573019

HYD TUBE

1шт.

11

529070

CABLE TIE,368.3mm L

CABLE STRAP

8шт.

12

86536948

HOSE

1/2" x 55" Long

1шт.

13

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

3шт.

13

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

14

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

2шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

15

86624500

HYDRAULIC MOTOR

Wheel Drive, Variable Speed, Refer to Fig. 052

2шт.

87349714R

REMAN-HYD MOTOR

WDX1101, 10/01-11/04,

2шт.

87349714C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

16

201-313

ELBOW,90 Degree, 1 7/16"-12 x 1 1/16"-12, Adj, ORFS

Includes: O-Ring 237-6012 & Ref. 27

4шт.

17

9821460

FLEXIBLE HOSE,9.65 mm ID x 1041.40 mm, SAE 100 R1

1шт.

18

86607374

HYD TUBE

1шт.

19

9846409

CHANNEL

2шт.

20

9846668

GROMMET

4шт.

21

9821459

FLEXIBLE HOSE,9.65 mm ID x 2489.20 mm, SAE 100 R1

1шт.

22

86536948

HOSE

1/2" x 80" Long

1шт.

23

86607375

HYD TUBE

1шт.

24

86573020

HYD TUBE

1шт.

25

86541711

HYD CONNECTOR

Includes: O-Ring

1шт.

Has 3/8" hole for Temp. Switch; plug when not used.

1шт.

25

217-511

PLUG,Sq Hd, 3/8"-18

1шт.

25

218-5007

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

495-21031

WASHER,1/4"

1шт.

27

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

4шт.

28

492-11025

LOCK WASHER,1/4"

2шт.

29

86544823

TEMPERATURE SWITCH

Hyd. Oil Temperature, 225°F

1шт.

30

86536942

HOSE,0.75" ID x 96.00", SAE 100R1 TYPE AT (HT)

1шт.

31

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

Includes O-Ring

2шт.

31

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

32

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

4шт.

33

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

34

9821458

FLEXIBLE HOSE,9.65 mm ID x 457.20 mm, SAE 100 R1

1шт.

35

86576657

12 PT SCREW,1/2" - 13 x 1.62", Gr 8

Cap, 12 Pt Hd, G8, 1/2"-13 x 1-5/8"

4шт.

36

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.
