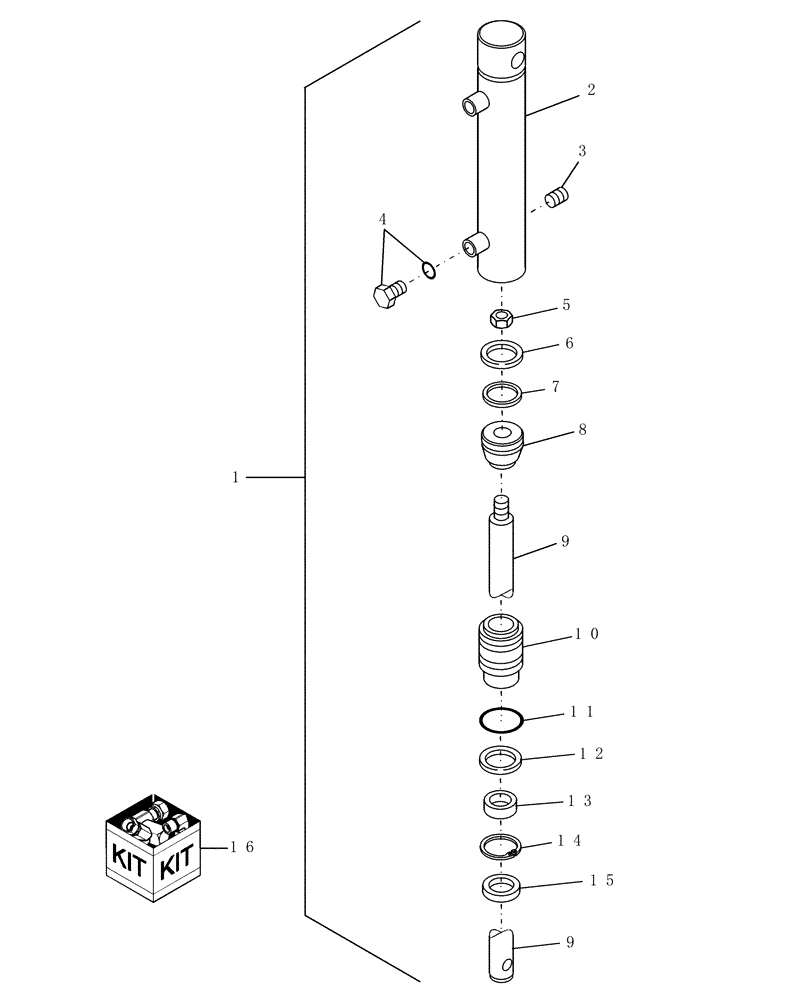

Запчасти Case IH WDX1101 (039A) - HYDRAULIC CYLINDER, HEADER LIFT (35) - HYDRAULIC SYSTEMS

1

86621654

HYDRAULIC CYLINDER

Lift

2шт.

Prior to PIN HCA0021032 (WDX901), HCA0023030 (WDX1101), HCA0025000 (WDX1701)

1шт.

1

87018059

CYLINDER ASSY.

Lift, Monarch, Refer to Fig. 039A[1]

2шт.

After PIN HCA0021033 (WDX901), HCA0023031 (WDX1101), HCA0025001 (WDX1701)

1шт.

2

NSS

NOT SOLD SEPARAT

Barrel

1шт.

3

529034

SET SCREW

HS, Self-Locking, Cup Pt, 1/4"-20 x 1/4"

1шт.

4

76349

PLUG,9/16" - 18 ORB

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

9602227

LOCK NUT,5/8"-18, GC

1шт.

6

771701

WEAR RING,Split, 50.8mm ID x 57.15mm OD x 9.53mm Thk

Wear, 2.002" ID x .375" Thk

1шт.

7

86570920

SEAL,46.35mm ID x 57.02mm OD x 6.99mm Thk

1шт.

8

86511736

PISTON

1шт.

9

86618950

ROD

1шт.

10

86508652

PISTON SWIVEL HEAD

SWIVEL HEAD PISTON

1шт.

11

238-6226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 6, 90 Duro

1шт.

12

86502705

SEAL,50.9mm ID x 56.74mm OD x 1.27mm Thk

Back-Up, 2.022" ID x .043" Thk

1шт.

13

NSS

NOT SOLD SEPARAT

Seal

1шт.

14

80592539

SNAP RING

1шт.

15

128406

SEAL,28.57mm ID x 41.45mm OD x 6.35mm Thk

Rod Wiper

1шт.

16

86542143

SEAL KIT

Includes: Ref. 6, 7, 11, 12, 14, 15

1шт.
