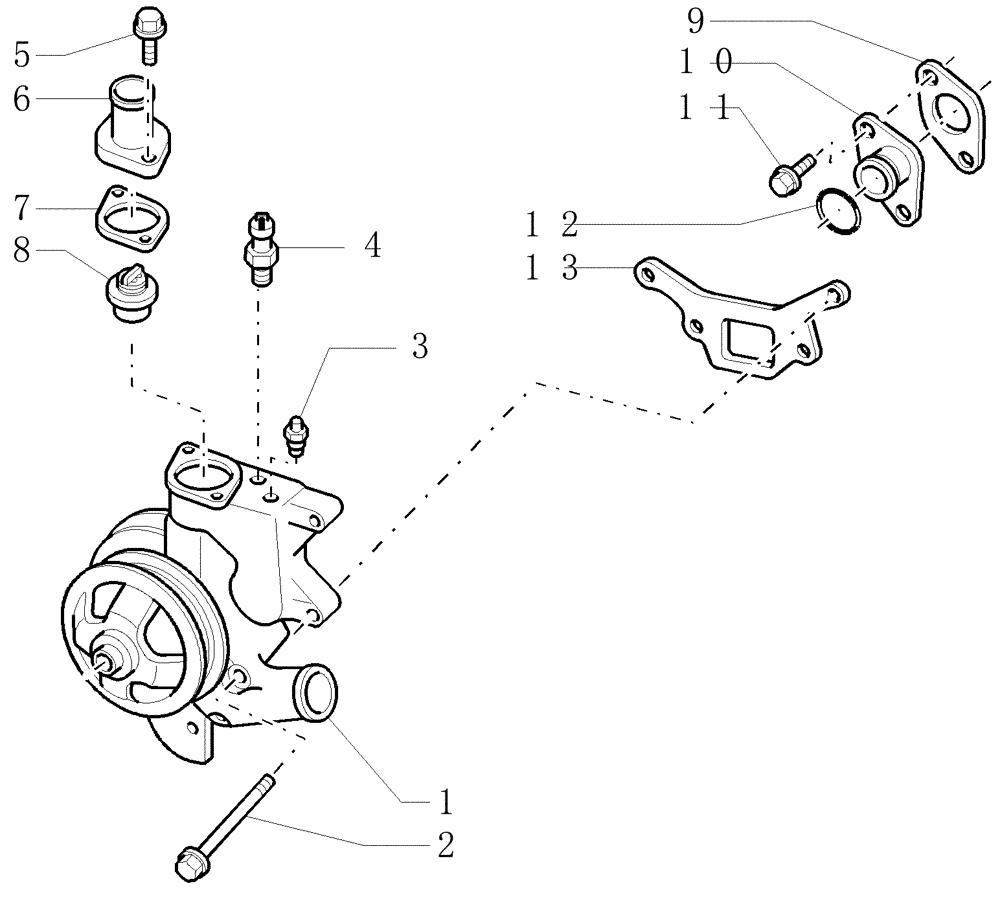

Запчасти Case IH WDX1101 (099) - ENGINE, WATER PUMP MOUNTING (10) - ENGINE

1

87800712

WATER PUMP

1шт.

87800712R

REMAN-WATER PUMP

WDX1101 (10/01-11/04)

1шт.

87800712C

CORE-WATER PUMP

Return Number

1шт.

2

56566S36

SCREW

7/16"-14 x 2-1/2"

3шт.

2

56572S36

BOLT

7/16"-14 x 4"

1шт.

3

9712608

TEMPERATURE SENDER,3/8" - 18

Water Temp.

1шт.

4

82016352

THERMOSTATIC SWITCH

Advance

1шт.

5

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

6

81862708

HYD CONNECTOR

1шт.

7

E9NN8255AA

GASKET,0.8mm Thk

1шт.

8

87800842

THERMOSTAT

1шт.

9

87800983

GASKET,0.4mm Thk

1шт.

10

F0NN8A544AA

FLANGE

1шт.

11

82853254

BOLT,Hex Flg, 7/16" - 14 x 1"

2шт.

12

14463881

O-RING,1.359" ID x 0.139" Width

2шт.

13

82853374

GASKET,0.3mm Thk

1шт.
