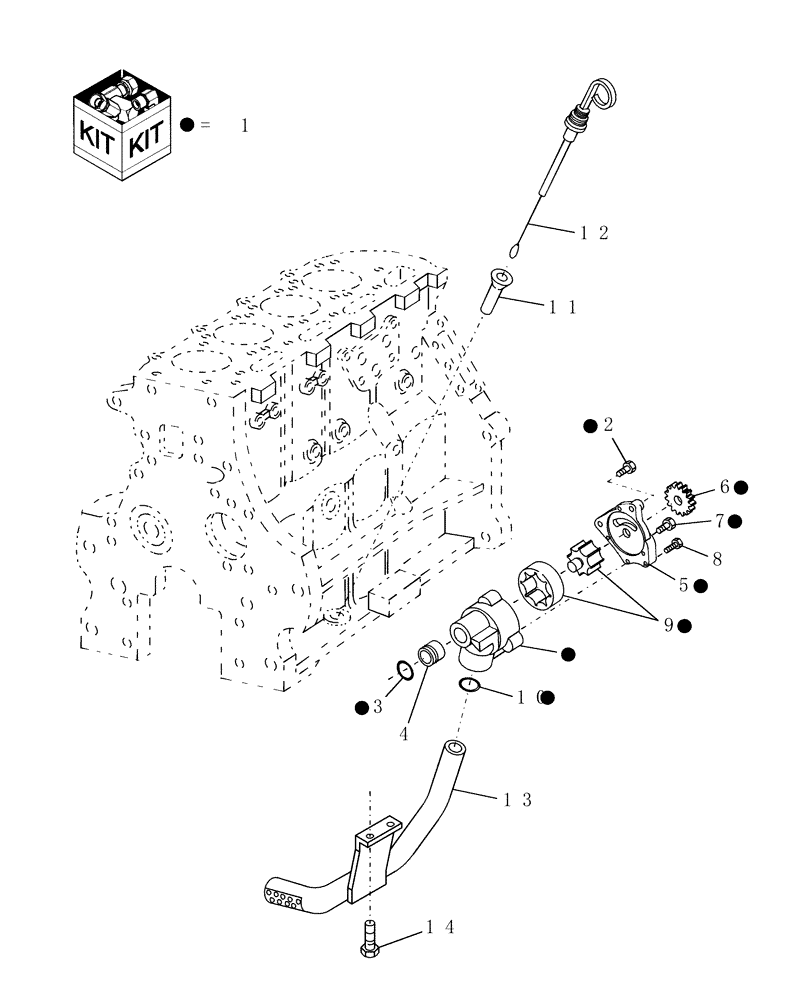

Запчасти Case IH WDX1101 (097) - ENGINE, OIL PUMP & DIPSTICK (10) - ENGINE

1

81868537

ENGINE OIL PUMP

1шт.

81868537R

REMAN-ENG OIL PUMP

WDX1101 CASE IH SELF PROPELLED WINDROWER TRACTOR (10/01-11/04)

1шт.

81868537C

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

81868721

SCREW

1шт.

3

14463081

O-RING,0.859" ID x 0.139" Width

1шт.

4

83999696

SLEEVE

Outlet

1шт.

5

83999691

COVER

1шт.

6

83999693

GEAR

Oil Pump Drive

1шт.

7

81868718

SCREW

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

9

83999692

SHAFT

1шт.

10

14463481

O-RING,1.109" ID x 0.139" Width

1шт.

11

83943981

TUBE,9.5936 mm OD, 102.6 mm Length

1шт.

12

87801533

DIPSTICK

Engine Oil

1шт.

13

83980619

TUBE

& Tube

1шт.

14

9628510

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Hex Flg Hd, G5, 3/8"-16 x 3/4"

2шт.
