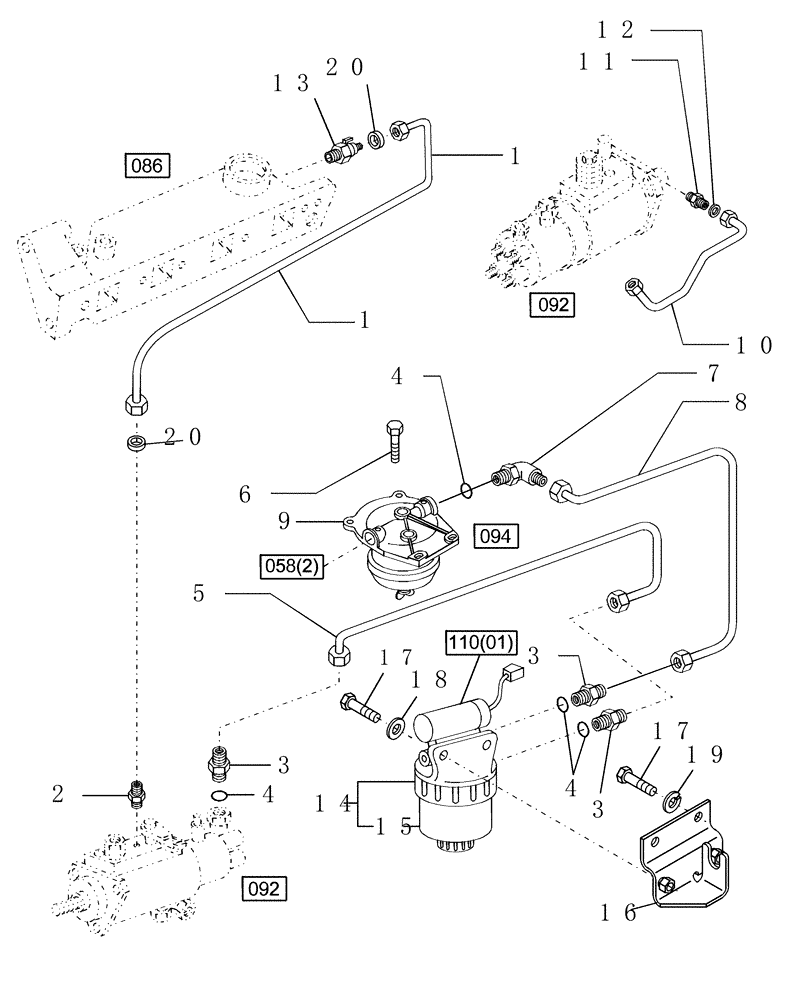

Запчасти Case IH WDX1101 (093) - FUEL SYSTEM INJECTION PUMP (10) - ENGINE

1

87801626

TUBE,4.75 mm OD

Intake Manifold to Injection Pump

1шт.

2

87800970

FITTING

1шт.

3

83947824

FITTING,9/16"-24 x 1/2"-20 O-Ring

3шт.

5

87801468

TUBE,9 mm DIA x 149.5, 88 mm L

1шт.

6

81868740

BOLT

Flg Hd, 3/8"-16 x 1-1/4"

1шт.

6

83958605

BOLT

3/8"-16 x 1.50"

1шт.

7

83951858

ELBOW,9/16" - 24 x 1/2" - 20 ORB

90°, 5/16", Flareless, 1/2"-20

1шт.

8

87801467

TUBE,8.05 mm OD x 206.5, 105 mm L

Separator to Fuel Filter / Lift Pump

1шт.

9

87802172

FILTER

Water Separator, Refer to fig. 094

1шт.

10

87800909

TUBE,4.8 mm OD x 155, 49 mm L

1шт.

11

87801322

FITTING

1шт.

12

11270060

SEALING WASHER,M10.2 x 13.4 x 1, Copper

1шт.

13

87800843

THERMOSTART

1шт.

14

87802202

FUEL FILTER

Lift Pump, Includes Element

1шт.

15

87802925

FILTER, FUEL

1шт.

16

86640842

SUPPORT

1шт.

17

61-33816

HEX SOC SCREW,3/8"-16 x 1"

4шт.

18

44877S36

WASHER,10.41mm ID x 19.05mm OD x 2.41mm Thk

3/8"

2шт.

19

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

20

87801633

SLEEVE,4.45mm ID x 8.05mm OD x 3mm Thk

Included With Ref.1

2шт.

4

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

4шт.
