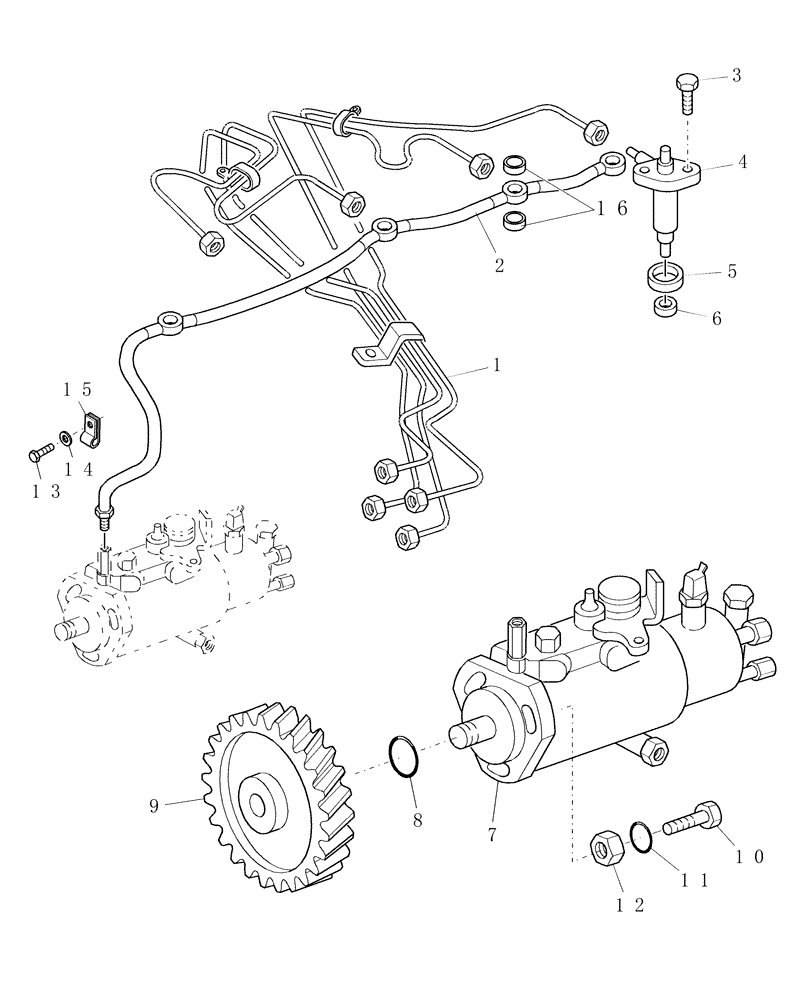

Запчасти Case IH WDX1101 (092) - ENGINE, FUEL INJECTOR, PUMP & LINES (10) - ENGINE

1

87801336

FUEL TUBE

Fuel Injection

1шт.

2

87801719

TUBE,8.1 mm OD x 475.5 mm L

Leak-Off

1шт.

3

87840522

BOLT,Hex Flg, 5/16" - 18 x 1.38"

8шт.

4

87801043

FUEL SYSTEM INJECTOR

Components Not Serviced

4шт.

5

81806277

SEAL,20.83mm ID x 31.75mm OD x 8.13mm Thk

SEALRING

4шт.

6

81873921

SEALING WASHER,7.4mm ID x 13.75mm OD x 1.6mm Thk

4шт.

7

87801042

FUEL INJECTION PUMP

1шт.

7

87801042R

REMAN-INJECTION PUMP

1шт.

7

87801042C

CORE-INJECTION PUMP

Return Number

1шт.

8

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

9

87800906

GEAR

Fuel Injection

1шт.

10

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

11

14437585

O-RING,8.00mm ID x 1.50mm

3шт.

12

14059311

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

13

413-712

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

1шт.

14

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

1шт.

15

87801747

CLIP

1шт.

16

81867564

GASKET,8.05mm ID x 11.3mm OD x 0.9mm Thk

Leak-Off Lines

8шт.
