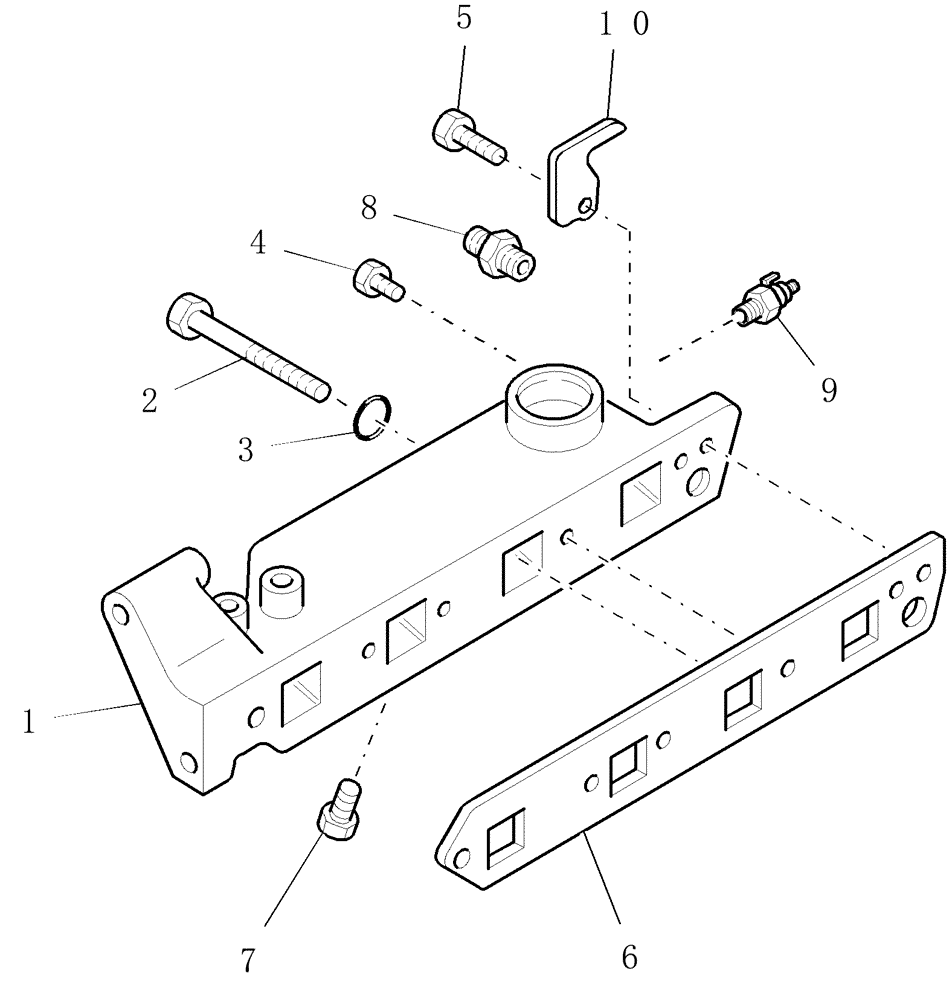

Запчасти Case IH WDX1101 (086) - ENGINE, INTAKE MANIFOLD (10) - ENGINE

1

87801343

DUCT

Intake, Incl. Ref. 4 & 7

1шт.

2

81868474

BOLT,Flng, 3/8" - 16 x 5", Gr 5

3/8-16 x 5

3шт.

3

14452981

O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro

3шт.

4

83984176

PLUG

HH, 3/8"-18

1шт.

5

81868740

BOLT

3/8"-16 x 1-1/8"

2шт.

6

83999300

MANIFOLD GASKET,0.8mm Thk

1шт.

7

88071

PLUG

1/8"-27

1шт.

8

390275S

FITTING

3/16"x 1/8"

1шт.

9

87800843

THERMOSTART

3/8"-24UNF - also shown in Pre Heat Cold Start

1шт.

10

82932534

LIFTING EYE

Lift, Engine Rear

1шт.
