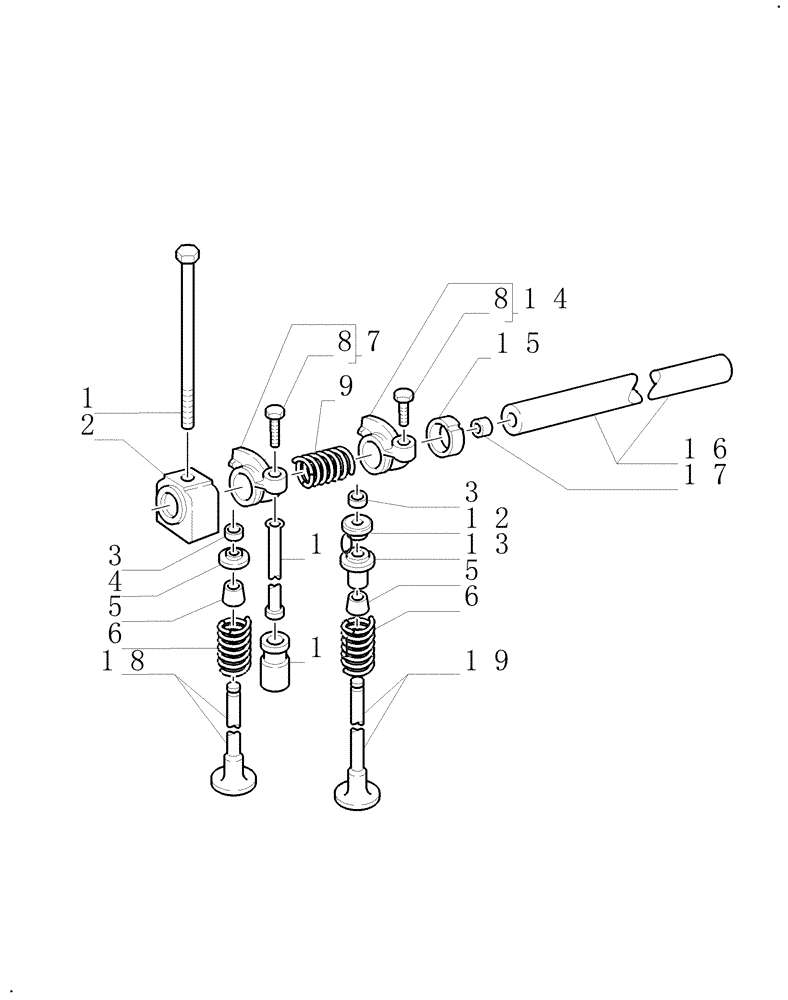

Запчасти Case IH WDX1101 (085) - ENGINE, ROCKER ARM & VALVES (10) - ENGINE

1

87801690

BOLT,Cyl Hd, 9/16" - 12 x 203.50mm

Cap, Flg Hd, G8, 9/16"-12 x 8"

5шт.

2

83903589

SUPPORT

5шт.

3

81876796

KEY

Cotter, Rocker Arm

16шт.

4

83958102

COTTERS PLATE

Tappet Plate

4шт.

5

87840154

SEAL

Cup

8шт.

6

83999742

SPRING

8шт.

7

81804316

ROCKER ARM

4шт.

8

87801302

ADJUSTMENT SCREW

Valve Rocker Arm Adjusting

1шт.

9

81804341

SPRING

4шт.

10

81877890

ROD

8шт.

11

E4HN6500AA

TAPPET

8шт.

12

83952337

SLEEVE

Valve Spring Retainer, Exhaust

4шт.

13

83952336

RETAINER

4шт.

14

83956710

ROCKER ARM

4шт.

15

81818731

SPACER

4шт.

16

83960174

SHAFT,OAL 22-1/4"

1шт.

17

83417040

PLUG

.755" Cup

2шт.

18

82850528

OVERSIZE INLET VALVE

STD ENGINE INLET VALVE 0.015"

1шт.

18

82850530

STD INLET VALVE

STD ENGINE INLET VALVE

4шт.

19

82850521

VALVE, EXHAUST, OVER

(0.015") O/S

1шт.

19

87802147

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

4шт.
