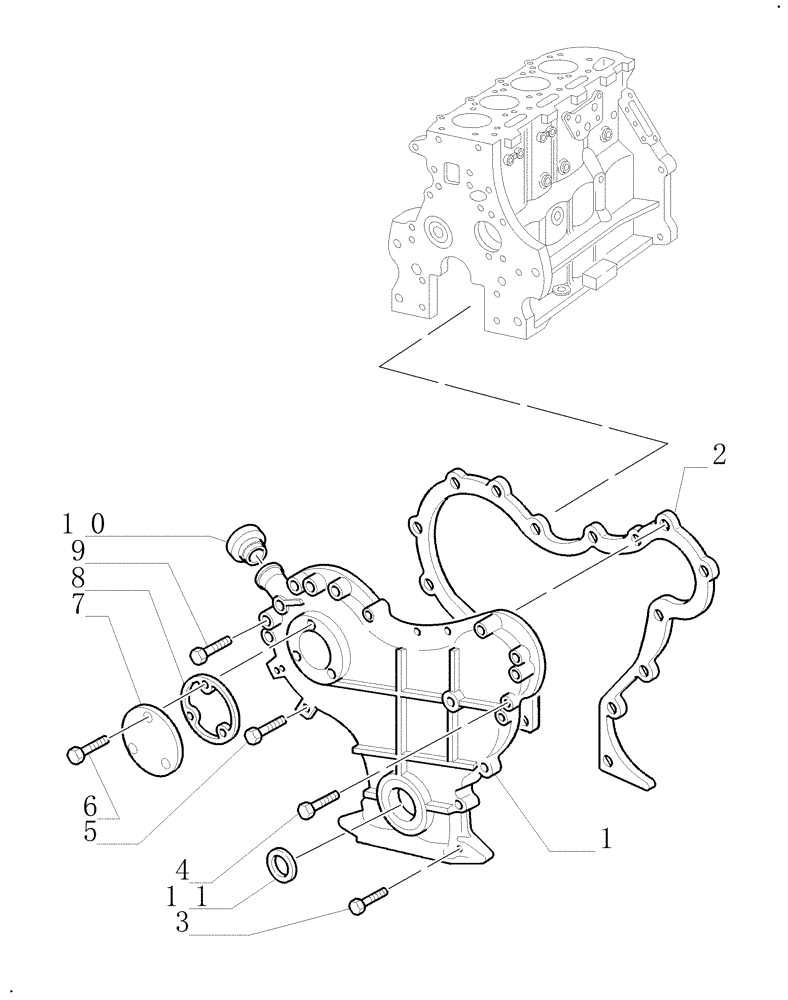

Запчасти Case IH WDX1101 (082) - ENGINE, TIMING GEAR COVER (10) - ENGINE

1

87800905

COVER

1шт.

2

83959876

GASKET,0.89mm Thk

1шт.

3

81876948

BOLT,Hex Flg, 3/8 - 16" x 2"

3/8"-16 x 2"

9шт.

4

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

1шт.

4

56547S36

BOLT

3/8"-16 x 2-3/4"

1шт.

5

81867931

BOLT

5/16"-18 x 2"

3шт.

5

82854871

BOLT

5/16"-18 x 2-1/4"

1шт.

6

87800676

BOLT

5/16"-18 x 3/4"

3шт.

7

87800915

COVER

1шт.

8

87800916

GASKET,0.89mm Thk

1шт.

9

81867943

BOLT

5/16"-18 x 2-1/2"

2шт.

10

F3AE6766BA

FILLER CAP

1шт.

11

87800696

SEAL

1шт.
