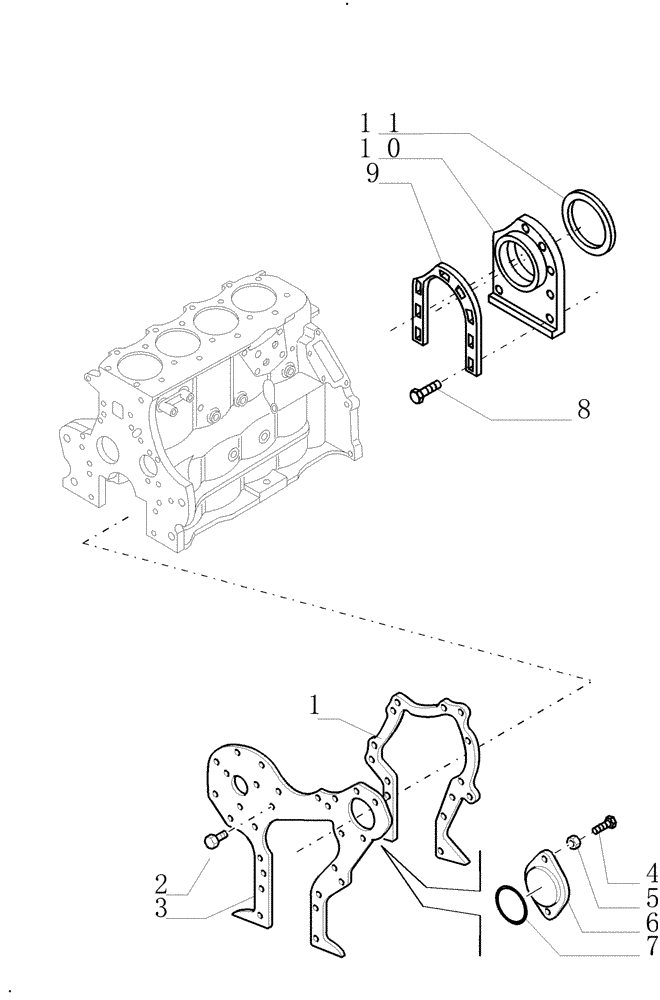

Запчасти Case IH WDX1101 (081) - ENGINE, COVERS (10) - ENGINE

1

83959396

GASKET,0.89mm Thk

1шт.

2

83958244

LOCK BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16"-18 x 7/8"

4шт.

3

87800904

FRONT PLATE

1шт.

4

409-7640

BOLT,Hex Flg, 3/8" - 16 x 2 1/2", Spcl

1шт.

4

56547S36

BOLT

3/8" - 16 x 2-3/4"

1шт.

5

81862931

NUT

3/8"-16

2шт.

6

81803219

COVER

Pump, Power Steering

1шт.

7

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

8

57635S36

SCREW

HH, G5, 5/16" x 1"

8шт.

9

87801610

GASKET,0.4mm Thk

Rear Oil Seal Retainer

1шт.

10

87801619

PLATE

Rear Oil Seal Retainer

1шт.

11

83955247

SEAL,120.6mm ID x 141.12mm OD x 11.81mm Thk

1шт.

See Service Bulletins Attached

1шт.

12

87381732

SEAL,122mm ID x 142mm OD x 15mm Thk

Used When Following Supersession Forward of Ref. 10

1шт.
