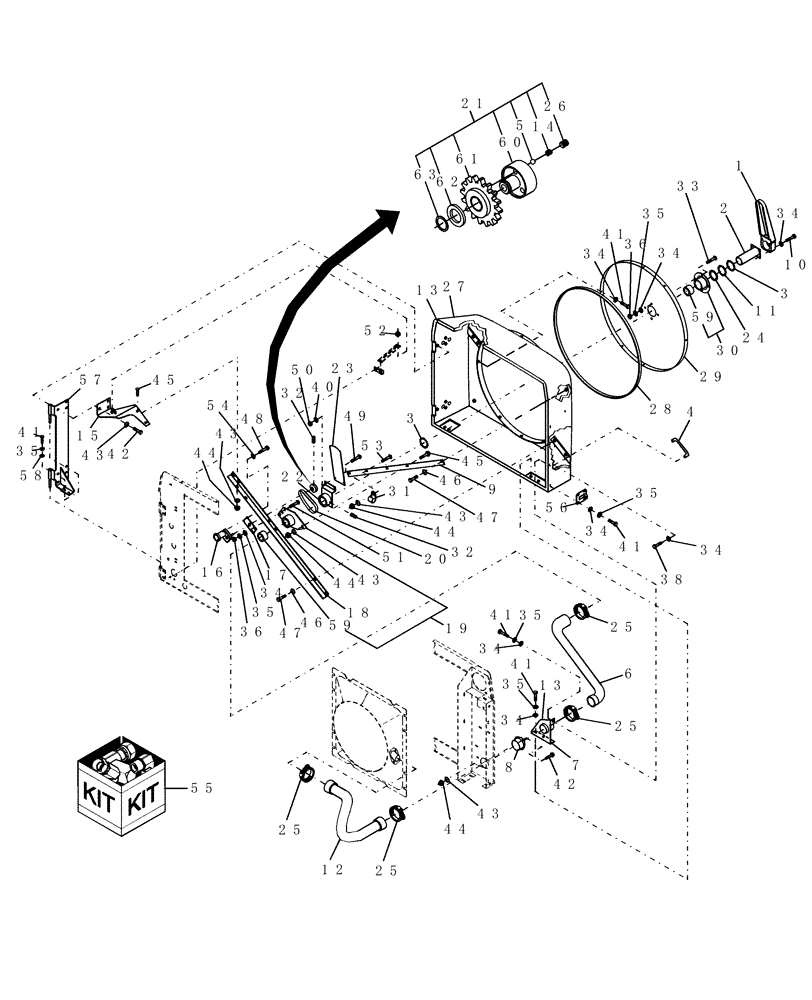

Запчасти Case IH WDX1101 (057) - ROTARY SCREEN (10) - ENGINE

1

86506100

ARM

Vacuum

1шт.

Prior to PIN HAJ0013062, (WDX901), HAJ0015090 (WDX1701)

1шт.

1

86617970

ARM

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015090 (WDX1701)

1шт.

2

86506092

TUBE,163.2 mm L

Vacuum

1шт.

Prior to PIN HAJ0013062, (WDX901), HAJ0015090 (WDX1701)

1шт.

2

86638972

TUBE,163 mm L

Vacuum

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015090 (WDX1701)

1шт.

3

122257

WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk

2-3/8"

1шт.

4

86544883

HANDLE

1шт.

5

86628554

BALL,6.53mm OD, Gr 25

3шт.

6

86530660

HOSE

1шт.

7

86535224

SUPPORT

1шт.

8

86540650

TUBE,36.4 mm L

W/Flange

1шт.

9

86615409

ANGLE

1шт.

10

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

11

9842468

GASKET

1шт.

12

86506345

HOSE,69.90 mm ID, 76.20 mm ID x 365.40 mm, SAE J20R4 Class D1

1шт.

13

86541535

SEAL

Cut to Desired Length

1шт.

14

86628555

SPRING

3шт.

15

86567553

SUPPORT

1шт.

16

86606232

WIPER MOTOR

1шт.

17

86583849

PLATE

1шт.

18

86506282

ANGLE

1шт.

19

86506283

ENGINE MOUNT

Motor

1шт.

20

86596148

CHAIN

Roller, 50P

1шт.

Prior to PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

20

86976085

CHAIN

Roller, DAC, 50P

1шт.

After PIN HAJ0013062 (WDX901), HAJ0014163 (WDX1101), HAJ0015101 (WDX1701)

1шт.

20

86976086

CONNECTING LINK

DAC Chain

1шт.

21

86565257

SPROCKET

Slip

1шт.

22

86596149

HUB

Block Off, , Includes 40T Sprocket

1шт.

23

86538415

PLATE

1шт.

24

86564668

SEAL

1шт.

25

82012730

HOSE CLAMP,68mm - 85mm, Worm Gear

Hose, M68-85

4шт.

26

80434

SET SCREW,Hex Soc, 5/16"-24 x 3/8"

3шт.

27

86599527

HOUSING

Screen

1шт.

28

PL

PROCURE LOCALLY

Strip, Seal, 1/4"-20 x 3/4" x 80" Long

1шт.

29

86506098

SCREEN

End

1шт.

30

86506095

HUB

1шт.

31

134579

WIRE CLAMP,J

3шт.

32

88946

SELF-TAP SCREW,Hex Hd, 1/4" x 3/4"

2шт.

33

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

4шт.

34

495-21031

WASHER,1/4"

33шт.

35

492-11025

LOCK WASHER,1/4"

19шт.

36

425-104

NUT,1/4"-20, Cl 5

8шт.

37

86564214

LOCK BOLT,Hex, 1/4" - 20 x 0.75", Gr 5

HH, G5, 1/4"-20 x 3/4"

12шт.

38

413-488

BOLT,Hex, 1/4" - 20 x 5-1/2", Gr 5

2шт.

39

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

4шт.

40

492-11010

LOCK WASHER,#10

1шт.

41

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

42

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

43

492-11031

LOCK WASHER,5/16"

1шт.

44

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

45

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

46

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

47

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

6шт.

48

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

3шт.

49

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

50

225-14110

NUT,#10-24

2шт.

51

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

2шт.

52

231-5345

FLANGE NUT,Flg, 5/16"-18

1шт.

53

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

54

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

5шт.

55

0C

ORDER COMPONENTS

Optional Screen Kit for Model WDX901

1шт.

Wholegoods pn was 716549016

1шт.

56

86567551

LATCH

2шт.

57

86567548

HINGE

1шт.

58

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

2шт.

59

86526513

BUSHING

For Ref. 19 & 30

2шт.

60

86564595

HUB

1шт.

61

86564592

SPROCKET

16T

1шт.

62

9706679

WASHER,0.8" ID x 1.25" OD x 0.14" Thk

1шт.

63

100-1175

SNAP RING,#75, Ext

1шт.
