Запчасти Case IH WDX1101 (113) - DECALS, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

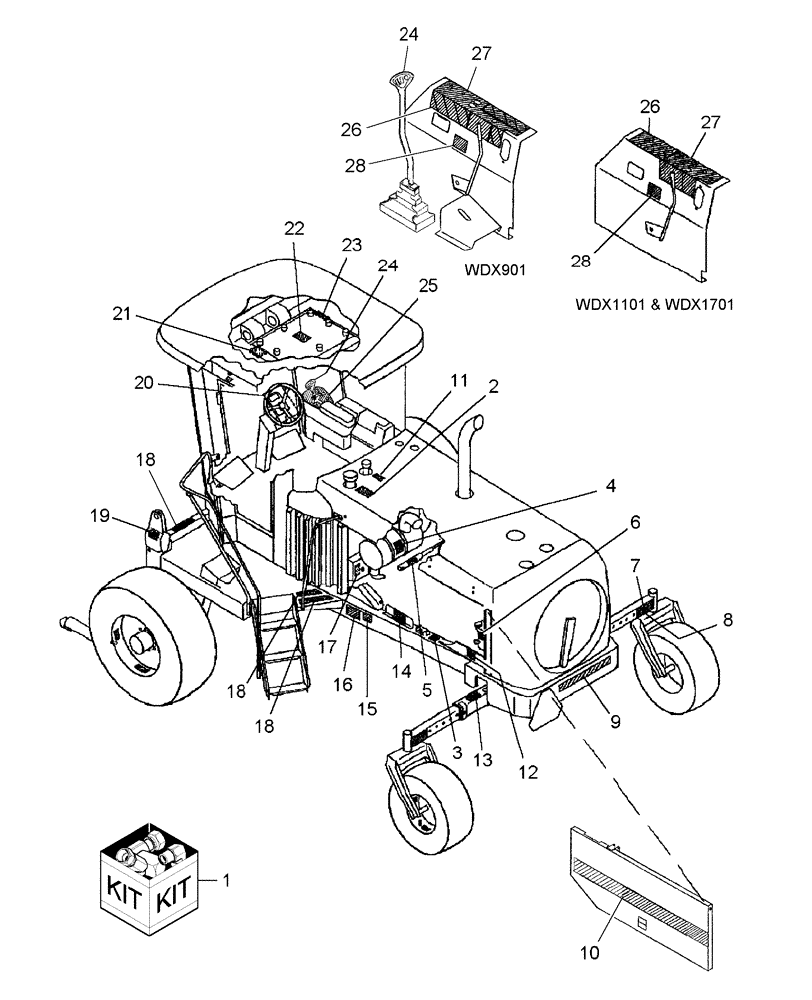

Схема запчастей Case IH WDX1101 - (113) - DECALS, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS
26
27
27
22
16
10
26
7
3
28
19
20
2
14
6
11
15
8
18
4
9
12
1
21
17
23
24
18
24
13
28
18
25
5

Артикул

Название

Примечание

Количество

1

86618029

DECAL

Sign Set (English) Includes Ref 2 - 32 & Sign Guide

1шт.

All Models

1шт.

2

256302

DECAL

DIESEL FUEL, English

1шт.

2

9801753

DECAL

DIESEL FUEL, Spanish

1шт.

3

76776

DECAL

BATTERY TERMINAL, English

1шт.

3

682668

DECAL

BATTERY TERMINAL, French

1шт.

4

629086

DANGER DECAL

ETHER START, English

1шт.

4

682683

DANGER DECAL

ETHER START, French

1шт.

4

86600617

DANGER DECAL

ETHER START, Spanish

1шт.

5

86625182

WARNING DECAL

DO NOT DISASSEMBLE, English

2шт.

5

86625183

WARNING DECAL

Do Not Disassemble, French

2шт.

5

86625184

WARNING DECAL

Do Not Disassemble, Spanish

2шт.

6

164372

DECAL

Radiator Protection, English

1шт.

6

576374

DECAL

Radiator Protection, French

1шт.

6

9801758

DECAL

Radiator Protection, Spanish

1шт.

7

86547781

REFLECTOR,RED

Red Retroreflective

1шт.

8

86547783

REFLECTOR,Tape, Red Orange

Red-Orange Fluorescent

1шт.

9

86624776

DECAL

CASE

1шт.

10

86626410

DECAL

LH, WDX901

1шт.

10

86626416

DECAL

LH, WDX1101

1шт.

10

86626418

DECAL

LH, WDX1701

1шт.

11

640888

DECAL

Oil Level, English

1шт.

12

136254

WARNING DECAL

MOVING PARTS, English

1шт.

12

86597811

DECAL

MOVING PARTS, French

1шт.

12

9802689

DECAL

MOVING PARTS, Spanish

1шт.

13

PL

PROCURE LOCALLY

Surfacing, Non Slip, 3/4" x 20"

2шт.

14

772281

CAP WASHER

English

1шт.

14

772816

DECAL

WARNING, French

1шт.

15

86625709

WARNING DECAL

English

1шт.

16

86622073

WARNING DECAL

English

1шт.

16

86622074

WARNING DECAL

WARNING, French

1шт.

16

86622075

WARNING DECAL

CAUTION- Spanish

1шт.

17

86627345

DECAL

FUSE/RELAY, English

1шт.

18

86516507

ANTI-SKID STRIP

Step, Safety, Tape, Cut to Fit, 2" x 36"

1шт.

19

86624774

DANGER DECAL

English

2шт.

19

86625174

DANGER DECAL

DANGER, French

2шт.

19

86625175

DANGER DECAL

DANGER, Spanish

2шт.

20

86555355

DECAL

CAUTION, Back Up Instructions (3 languages)

1шт.

21

86621213

DECAL

Radio Plate

1шт.

22

174117

DECAL

CAUTION, English

1шт.

22

576377

DECAL

CAUTION, French

1шт.

23

86621210

DECAL

CAB COMFORT(A/C, Heat, Wipers, Etc.), English

1шт.

24

NSS

NOT SOLD SEPARAT

DECAL, FORWARD, NEUTRAL, REVERSE - on Handle; Service W/ Face Plate 86621870

1шт.

25

86546217

DECAL

Plate, Switch

1шт.

26

86550596

DECAL

CAUTION, English

1шт.

26

86559274

DECAL

CAUTION, French

1шт.

27

86546215

DECAL

CONSOLE, WDX1701, WDX1101

1шт.

27

86631056

DECAL

CONSOLE, WDX901

1шт.

28

9846838

DECAL

BRAKE

1шт.

Выбрано товаров: 49
