Запчасти Case IH WDX1101 (054) - SHIELDING FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

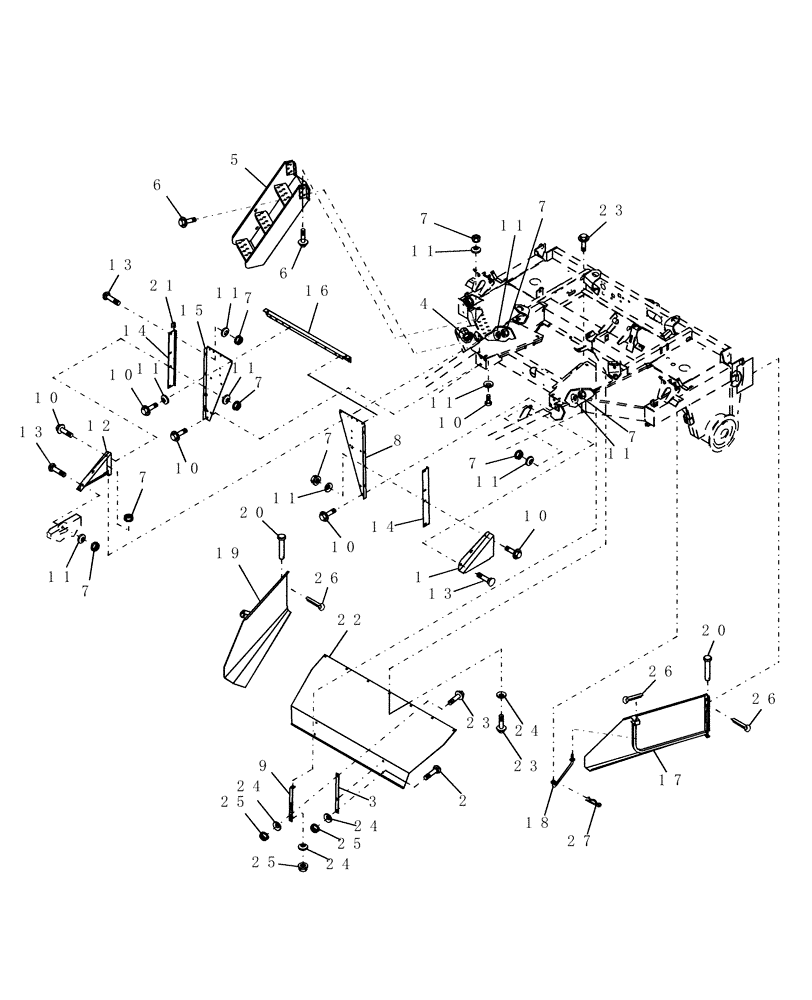

Схема запчастей Case IH WDX1101 - (054) - SHIELDING FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
11
20
26
11
7
9
24
19
11
7
26
13
11
8
14
7
12
23
24
23
7
11
5
18
3
13
23
10
2
4
6
22
15
10
14
10
6
11
7
17
11
27
11
20
11
13
21
10
26
7
16
24
11
10
25
7
25
7
1
7
24
25

Артикул

Название

Примечание

Количество

1

86626700

SUPPORT ASSY.

RH

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

3

86624794

STRAP

2шт.

4

231-5346

FLANGE NUT,Flg, 3/8"-16

5шт.

5

86625483

LADDER

1шт.

6

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

8шт.

7

425-286

FLANGE NUT,Flg, 3/8"-16, G5

22шт.

8

86535641

ANGLE

RH

1шт.

9

86624790

STRAP

2шт.

10

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

15шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

31шт.

12

86626698

SUPPORT ASSY.

LH

1шт.

13

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

8шт.

14

86625335

ANGLE

2шт.

15

86538943

ANGLE

LH

1шт.

16

86532275

CHANNEL

1шт.

17

86625347

SHIELD

RH

1шт.

Prior to PIN HCA0023001 (WDX1101)

1шт.

17

87020427

SHIELD

RH

1шт.

After PIN HCA0023001 (WDX1101) , Both RH & LH shields must be changed at the same time.

1шт.

18

9828745

ROD

2шт.

19

86625345

SHIELD

LH

1шт.

Prior to PIN HCA0023001 (WDX1101)

1шт.

19

87020425

SHIELD

LH

1шт.

After PIN HCA0023001 (WDX1101) , Both RH & LH shields must be changed at the same time.

1шт.

20

86516749

GUIDE PIN,11.15mm OD x 92.9mm L

4шт.

21

86531608

SEALING STRIP

16', Serial Range: Cut-Length

1шт.

22

86625343

SHIELD

1шт.

23

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

11шт.

24

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

15шт.

25

425-285

FLANGE NUT,Flg, 5/16"-18, G5

8шт.

26

432-820

COTTER PIN,1/8" x 1 1/4"

6шт.

27

216698

COTTER PIN,0.125" OD x 1.75" L

2шт.

Выбрано товаров: 33
