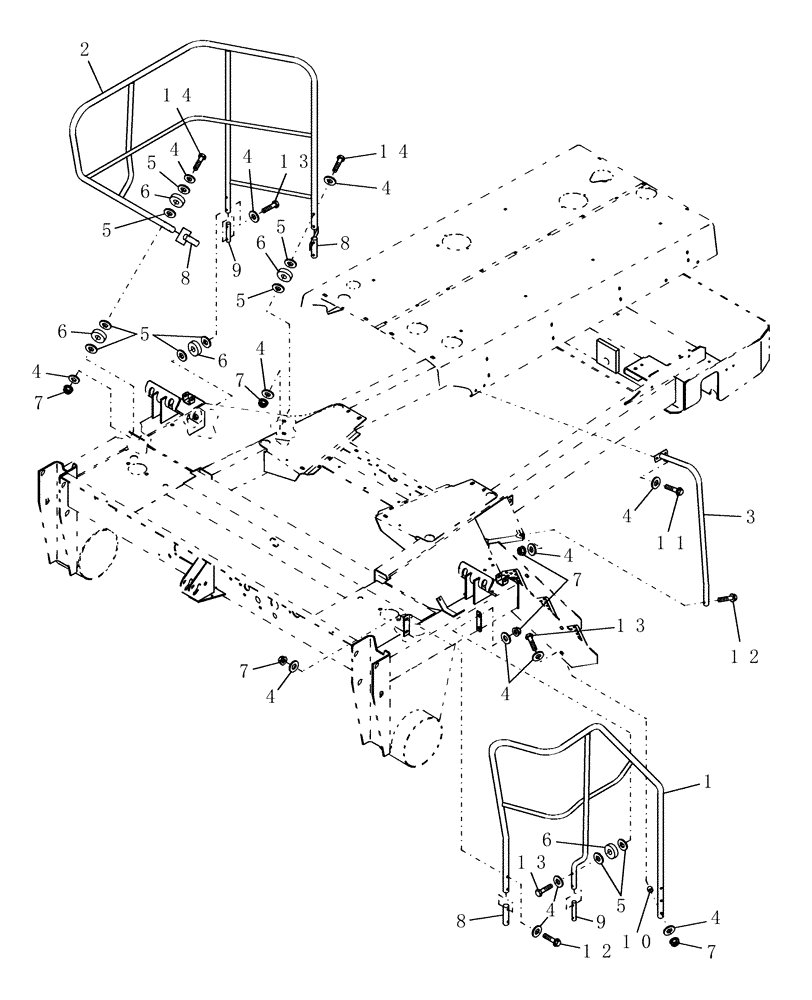

Запчасти Case IH WDX1101 (054[1]) - CAB HANDRAILS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86626439

RAIL ASSY.

LH

1шт.

2

86626441

RAIL

RH

1шт.

3

86629987

RAIL ASSY.

LH

1шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

5

495-21044

WASHER,3/8"

20шт.

6

86607708

WASHER

Nylon, 3/8"

10шт.

7

231-5346

FLANGE NUT,Flg, 3/8"-16

11шт.

8

86626513

ROD ASSY.

3шт.

9

86509157

STOP

2шт.

10

86629655

SPACER

2шт.

11

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

2шт.

12

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3шт.

13

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

6шт.

14

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.
