Запчасти Case IH WDX1101 (021[1]) - INSTRUCTORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS

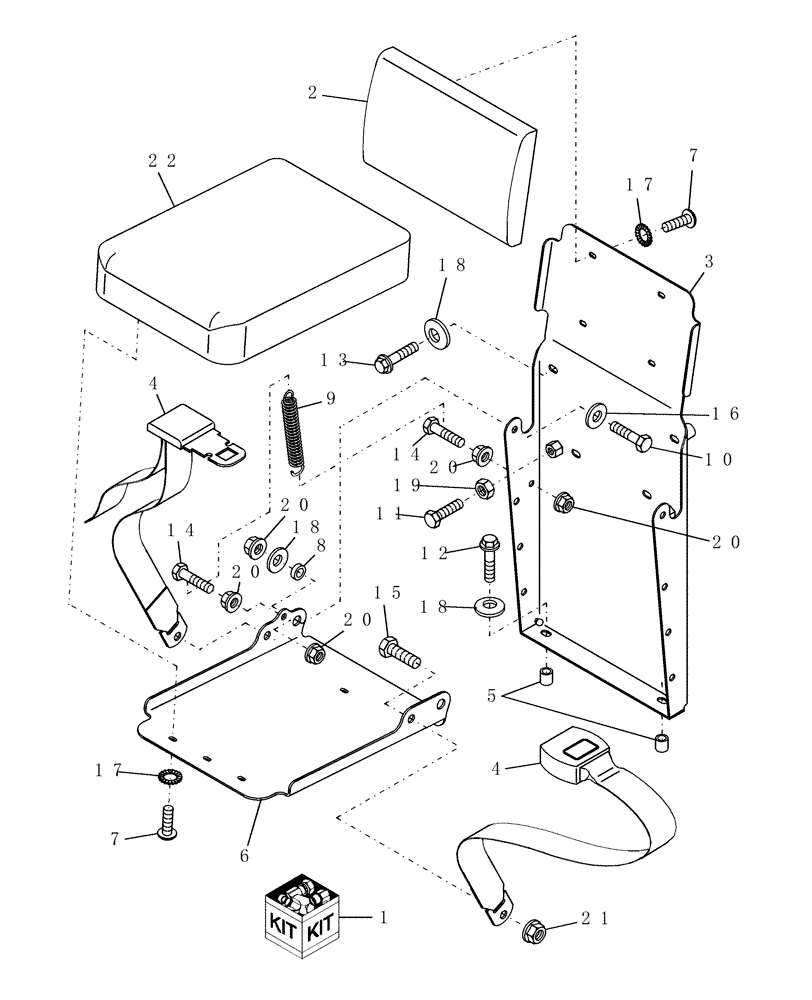

Схема запчастей Case IH WDX1101 - (021[1]) - INSTRUCTORS SEAT (90) - PLATFORM, CAB, BODYWORK AND DECALS
20
17
20
3
18
22
11
18
17
4
14
6
9
10
2
16
14
19
15
13
20
7
4
12
1
5
7
18
21
8
20
20

Артикул

Название

Примечание

Количество

1

86619351

DIA KIT, HARVESTER

Instructor Seat; Includes: Ref. 2 - 22

1шт.

WDX901, Dealer Installed; WDX1101 & WDX1701, Factory Installed

1шт.

2

86621083

CUSHION, SEAT

1шт.

3

86622404

SEAT SUPPORT

Back

1шт.

4

86530940

SAFETY BELT ,48.00 mm W

1шт.

5

86620629

SPACER

2шт.

6

86620625

SEAT SUPPORT

1шт.

7

80590099

SCREW,Truss, 1/4" - 20 x 3/4"

Truss Hd, 1/4"-20 x 3/4"

8шт.

8

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

9

86620630

SPRING

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

13

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

14

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

15

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

16

495-21044

WASHER,3/8"

2шт.

17

493-41026

LOCK WASHER,Ext Tooth, 1/4"

8шт.

18

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

19

425-106

NUT,3/8"-16, Cl 5

2шт.

20

425-286

FLANGE NUT,Flg, 3/8"-16, G5

6шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

2шт.

22

86621084

CUSHION

Back

1шт.

Выбрано товаров: 23
