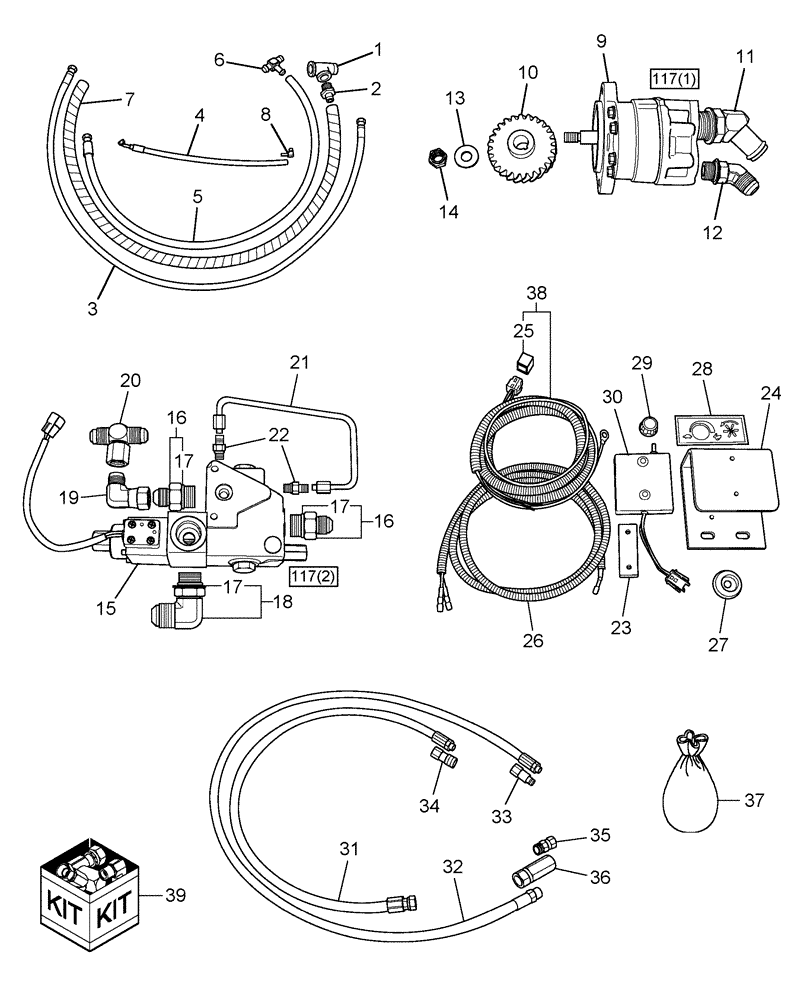

Запчасти Case IH WDX1101 (117[3]) - HYDRAULIC REEL DRIVE KIT (88) - ACCESSORIES

1

87010348

FITTING

Tee, 1-1/4", Suction

1шт.

2

86837687

HYD CONNECTOR

1шт.

3

86705519

FLEXIBLE HOSE,0.50" ID x 82.00", SAE 100R2 or 100R16 or 100R17

Pressure

1шт.

4

86705518

FLEXIBLE HOSE

From Block

1шт.

5

86705517

FLEXIBLE HOSE,0.75" ID x 60.00", SAE 100R3 or SAE 100R6

Return

1шт.

6

86837686

FITTING

Tee, Return

1шт.

7

84068790

HYDRAULIC HOSE,25.4mm ID x 2205mm L, SAE 100R4

Suction, 70"

1шт.

8

9849244

HYD CONNECTOR

Fitting

1шт.

9

86705514

HYDRAULIC PUMP,19.7 CC

Refer to Fig. 117(1)

1шт.

10

86705515

GEAR

16T

1шт.

11

637341

ELBOW

Suction, 45°

1шт.

12

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Pressure

1шт.

13

378245

WASHER,13mm ID x 28.5mm OD x 2.7mm Thk

1шт.

14

88130

NUT,1/2"-20, GC

1шт.

15

9806631

HYDRAULIC VALVE

Flow Control, Refer to Fig. 117(2)

1шт.

16

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

2шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

18

322894

90 ELBOW,1-1/16" - 12 JIC x 1-1/16" - 12 ORB

1шт.

19

182977

90 ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

20

218-842

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

1шт.

21

782490

HOSE

1шт.

22

604862

HYD CONNECTOR

2шт.

23

86705528

SPACER

1шт.

24

87025766

BRACKET

Controller

1шт.

25

86509590

RELAY

20 AMP

1шт.

26

86705523

WIRE HARNESS

Reel Valve

1шт.

27

9672338

GROMMET

1шт.

28

9594507

DECAL

1шт.

29

792780

KNOB

1шт.

30

792779

MODULE

Valve

1шт.

31

86837689

FLEXIBLE HOSE

59" long

1шт.

32

86837688

FLEXIBLE HOSE,0.50" ID x 87.50", SAE 100R17

91" Long

1шт.

33

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

1шт.

34

85999238

COUPLING, QUICK, FEM,3/8" x 3/4" - 16 ORB

1шт.

35

86011403

ADAPTER

1шт.

36

163603

CHECK VALVE

1шт.

37

86514459

BOLT,Hex Flg, 3/8" - 16 x 3"

2шт.

37

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

37

86020623

SLEEVE

Nylon, 24"

1шт.

37

782732

SLEEVE

Double, 21"

2шт.

37

700514

CLAMP,3.8mm, Coat, M8 Bolt

15/16" x 5/16" Bolt

1шт.

37

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

1шт.

37

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

4шт.

37

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

1шт.

37

280736

NUT,5/16"-18, GC

1шт.

37

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

37

768999

CLAMP

2шт.

37

413-444

BOLT,Hex, 1/4" - 20 x 2-3/4", Gr 5

2шт.

37

87758

SCREW,Truss HD, #8 - 32 x 1"

2шт.

37

322355

BELLEVILLE WASHER,M4 Bolt Size x 10mm OD x 0.9mm Thk

2шт.

37

492-11025

LOCK WASHER,1/4"

2шт.

37

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

37

529070

CABLE TIE,368.3mm L

CABLE STRAP

6шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

12шт.

38

86705524

WIRE HARNESS

Reel Control

1шт.

39

W0

ORDER WHOLEGOODS

Contains 1Thru 38

1шт.
