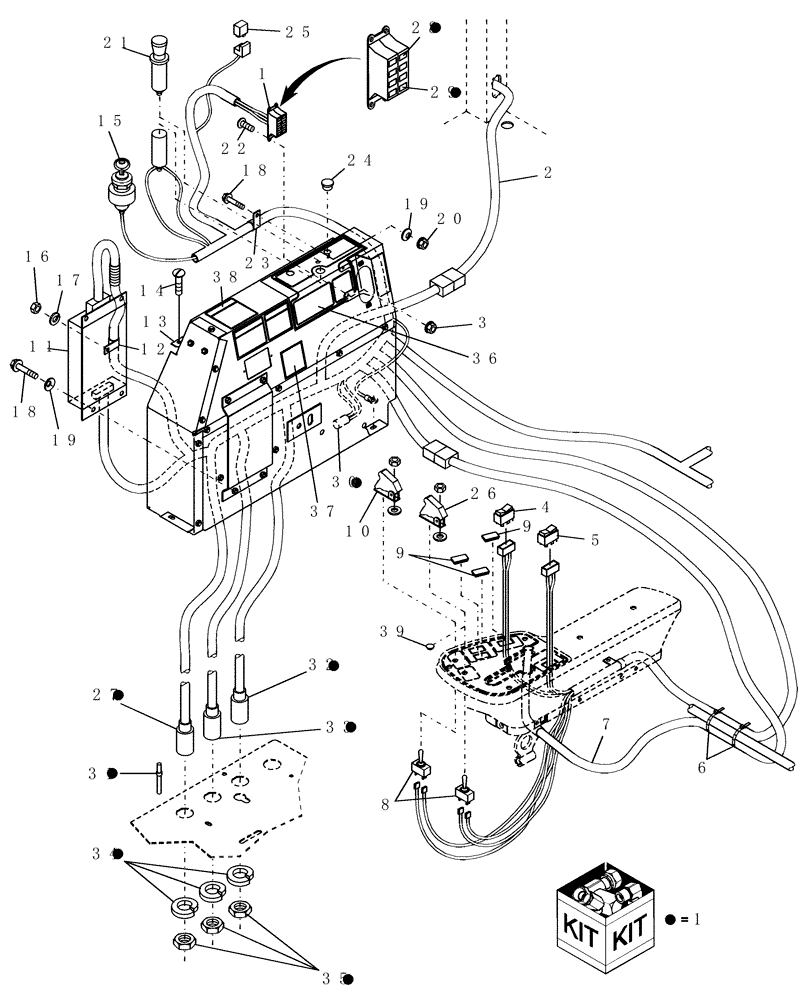

Запчасти Case IH WDX1101 (030) - CAB ELECTRIC (55) - ELECTRICAL SYSTEMS

1

86626487

WIRE HARNESS

Console, Includes Ref. 27-36

1шт.

2

86605007

WIRE HARNESS

Cab

1шт.

3

88826

LOCK NUT,#10-24, GA

4шт.

4

445632

SWITCH

Rocker, DPDT

1шт.

WDX1701- Only

1шт.

5

682360

SWITCH

Rocker

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

7

86618787

WIRE HARNESS

FNR Handle

1шт.

8

86536110

TOGGLE SWITCH

1шт.

(1) WDX1101; (2) WDX1701

1шт.

9

618118

PLUG

1шт.

(3) WDX1101; (2) WDX1701

1шт.

10

9845112

COVER

Guard, PTO - Includes: Washer & Nut

1шт.

11

87020409

MODULE

Console, Includes Instructions

1шт.

12

9706732

CLAMP,19mm ID, 8.7mm Bolt Hole, P Type

1шт.

13

86639993

PLATE

Sheet, Top, W/Ref. 36, 37, & 38

1шт.

14

690341

SELF-TAP SCREW

Flg, USR, 5/16"-18 x 5/8"

3шт.

15

641833

IGNITION SWITCH

1шт.

16

425-104

NUT,1/4"-20, Cl 5

1шт.

17

492-11025

LOCK WASHER,1/4"

1шт.

18

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5шт.

19

492-11031

LOCK WASHER,5/16"

5шт.

20

425-285

FLANGE NUT,Flg, 5/16"-18, G5

1шт.

21

86500340

CIGARETTE LIGHTER

1шт.

22

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

Machine

4шт.

23

134577

CLIP,J

1шт.

24

637423

PLUG

1шт.

25

86529089

RELAY

SPDT

1шт.

26

9845112

COVER

Guard, PTO - Includes: Washer & Nut

1шт.

WDX1701- Only

1шт.

27

86553678

HYD CONNECTOR

.34-24-23PE

1шт.

28

9623775

FUSE,5 Amp

5шт.

29

9811773

FUSE,10A, Micro, Red

3шт.

30

773464

DIODE

Style 30

1шт.

31

453133C1

PLUG

Terminal, E18, #12

11шт.

31

225052C1

ELEC. TERMINAL PIN,Male, 0.50 - 1.20 mm2

E18, #16, Male

45шт.

31

280386A1

ELEC CONNECTOR,Nickel, 2.0 - 3.0mm

12-14AWG COP NKL P

7шт.

32

86553676

ELEC CONNECTOR,Male, 18 - 12 SAE

.34-24-19PE

1шт.

33

86553677

HYD CONNECTOR

.34-24-21PE

1шт.

34

636665

LOCK WASHER,43.18mm ID x 52.68mm OD x 1.57mm Thk

3шт.

35

636666

NUT,1 11/16"-18

3шт.

36

86546215

DECAL

Console

1шт.

37

9846838

DECAL

Brake

1шт.

38

86550596

DECAL

1шт.

39

86837537

PLUG

Cap

1шт.

WDX1101

1шт.
