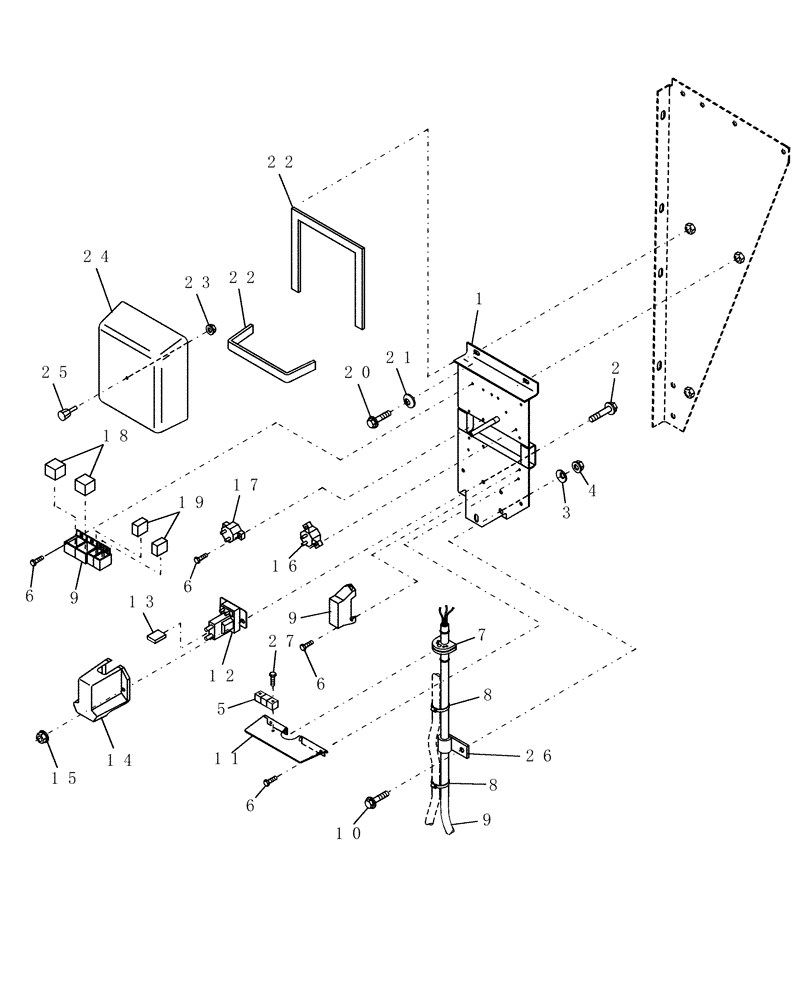

Запчасти Case IH WDX1101 (029) - ELECTRIC REAR PANEL (55) - ELECTRICAL SYSTEMS

1

86625704

PANEL

1шт.

2

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

4

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

5

F0NN10570AA

RESISTOR

1шт.

6

86500940

SELF-TAP SCREW,Hex Wash Hd, #10 x 3/4"

15шт.

7

9822595

GROMMET

1шт.

8

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

2шт.

9

86626486

WIRE HARNESS

Main - Includes: Ref. 9

1шт.

9

NSS

NOT SOLD SEPARAT

Holder, Fuse

1шт.

9

NSS

NOT SOLD SEPARAT

Sockets, Relay

1шт.

9

900367

TERMINAL

E18

14шт.

9

9861407

PLUG

#3

2шт.

9

9804895

FUSE,20A, Micro, Yellow

5шт.

9

9609191

MULTIPOLE CONNECTOR,Female, 9 Pole

Plug 9

1шт.

9

9622758

COUPLING RING

Ring 9

1шт.

9

9842512

ELEC CONNECTOR,Female, 16

Plug, 3S

1шт.

9

900364

TERMINAL CONNECTOR

E18, Female, For #16 AWG Wire

59шт.

9

9842513

PLUG

Wedge Lock

1шт.

9

900302

TERMINAL

E18, Female, For #12 AWG Wire

7шт.

9

900363

TERMINAL

E18, Male, For #16 AWG Wire

2шт.

9

900552

ELEC. TERMINAL PIN,Male, 1 - 2 mm2

E18, Male, For #14 AWG Wire

3шт.

9

900569

TERMINAL

E18, Female, For #14 AWG Wire

2шт.

9

9609412

HYD CONNECTOR

Body

1шт.

9

784374

BODY

1шт.

9

851772

PLUG

1шт.

9

9801128

CONNECTOR, ELEC

CONNECTOR Plug

1шт.

9

795230

HYD CONNECTOR

Receptacle

2шт.

10

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

11

9822596

SUPPORT

1шт.

12

9601073

RELAY,12V, 80A

Start

1шт.

13

9612633

SHIELD

1шт.

14

9612631

COVER

1шт.

15

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

16

9840279

FUSE

25A, Main Electrical Panel, Key

1шт.

17

9827329

CIRCUIT BREAKER

15A - Seat Service Light, AC Clutch

1шт.

18

86529089

RELAY

AC power, Work Lights

3шт.

19

86509590

RELAY

20 Amp, AC Clutch, Seat Service Light

2шт.

20

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

21

492-11031

LOCK WASHER,5/16"

3шт.

22

PL

PROCURE LOCALLY

Seal, 1/4" x 3/4"

1шт.

23

231-24409

NUT,#10-32

GB, #10-32

1шт.

24

9822597

COVER

1шт.

25

273890

THUMB SCREW,#10 - 32 x 3/4"

1/2" x 3/4"

1шт.

26

619284

CLAMP,23.8mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

27

275-5458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

1шт.
