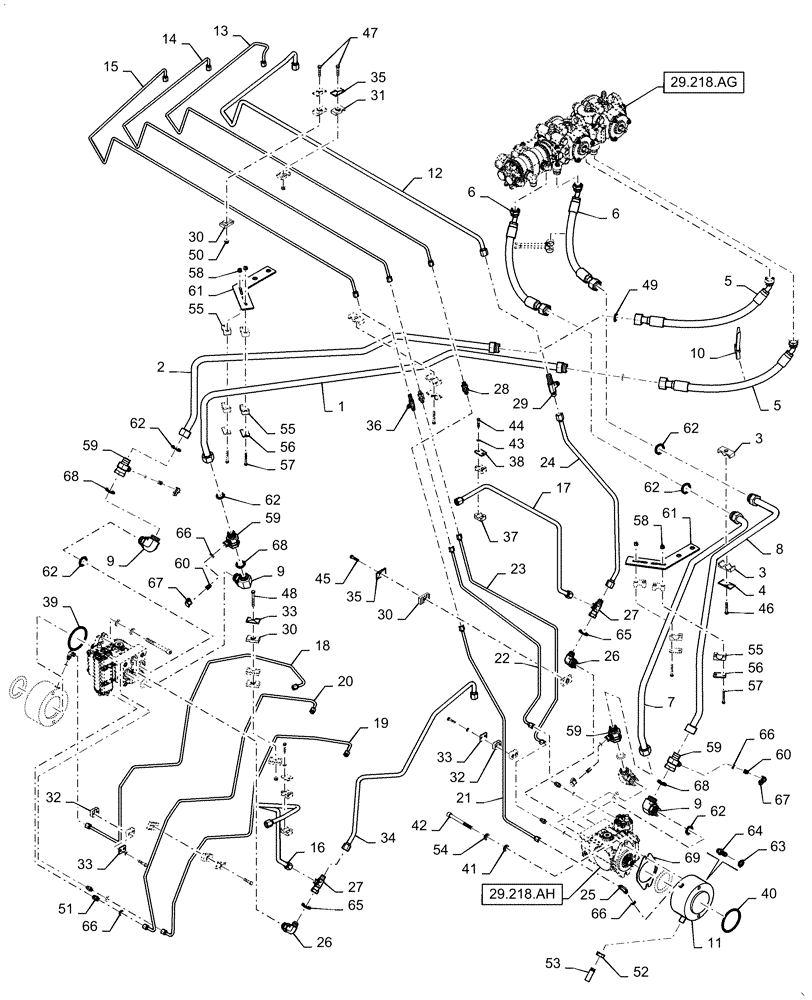

Запчасти Case IH WD2504 (29.204.AB) - DRIVE, HYDRAULIC SYSTEM, HIGH SPEED (29) - HYDROSTATIC DRIVE

1

47580919

TUBE

RH 3-Speed Motor B Port, Incl 62

1шт.

2

47580921

TUBE

RH 3-Speed Motor A Port, Incl 62

1шт.

3

86900725

CLAMP

Twin 1.00

3шт.

4

87000230

PLATE

Cover, Din 3015-Z-DP-3-W1-ZND

2шт.

5

47381293

HYDRAULIC HOSE

RH Ground Drive

2шт.

6

47360939

HYDRAULIC HOSE

LH Ground Drive

2шт.

7

47615741

TUBE

LH 3-Speed Motor Port A, Incl 62

1шт.

8

47615740

TUBE

LH Motor B Port, Incl 62

1шт.

9

9846955

90 ELBOW,1-7/16"-12 ORFS x 1-5/16"-12 ORB

90 Degree, Incl 62, 28

4шт.

10

84386243

CLAMP,489mm L

2шт.

11

87631994

BRAKE ASSY.

Modular, Incl 63 - 64

2шт.

12

47360901

HYD TUBE

LH Motor Case Drain

1шт.

13

47360903

HYD TUBE

LH Brake

1шт.

14

47360907

HYD TUBE

LH Motor 2 Range

1шт.

15

47360909

HYD TUBE

LH 3-Speed Motor 3 Range

1шт.

16

47381296

HYD TUBE

RH Header Case Drain 3-Speed

1шт.

17

47381298

HYD TUBE

LH Header Case Drain 3-Speed

1шт.

18

47381300

HYD TUBE

RH Brake

1шт.

19

47381303

HYD TUBE

RH 2 Range 3-Speed

1шт.

20

47381305

HYD TUBE

RH 3 Range 3-Speed

1шт.

21

47405226

HYD TUBE

LH Brake

1шт.

22

47405227

HYD TUBE

LH 3-speed Motor 2 Range

1шт.

23

47405229

HYD TUBE

LH 3-Speed Motor 3 Range

1шт.

24

47405230

HYD TUBE

LH 3-Speed Motor Case Drain, Serial Range: -YGG677500

1шт.

24

48000042

TUBE

LH 3-Speed Motor Case Drain, Start Serial: YGG677501

1шт.

25

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 66

2шт.

26

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 65

2шт.

27

86513011

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

2шт.

28

86513087

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

29

86625276

TEE

Bulk-HD Run 37 FL-10

1шт.

30

87000148

CLAMP

2 Hole 9.52-9.52 mm Dia Ribbed

6шт.

31

87000159

CLAMP

2 Hole 15.87-9.52 mm Dia Ribbed

2шт.

32

87603907

CLAMP

9.5 mm Dia Ribbed

2шт.

33

87022336

PLATE

Clamp, Single, SZ 1

2шт.

34

47381294

HYD TUBE

RH Wheel Case Drain 3-Speed

1шт.

35

384870A1

PLATE

Hose Clamp Cover

5шт.

36

47456949

BULKHEAD

Union Tee .375 37 FL

1шт.

37

87040663

CLAMP

16mm Dia Ribbed

2шт.

38

86900726

COVER

Clamp, Single, SZ 2

2шт.

39

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

40

9840590

O-RING,0.139" Thk x 3.734" ID, -240, Cl 5, 75 Duro

2шт.

41

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

4шт.

42

47644711

SCREW

12 PT 1/2-13 x 5.0 GR8 PLN, Serial Range: -YGG677045

4шт.

42

47973779

SCREW

, Start Serial: YGG677046

4шт.

Ref 54 Is Not Used With This Screw

1шт.

43

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

44

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

8шт.

45

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

46

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

2шт.

47

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

48

87626

BOLT,Hex, 5/16" - 18 x 2 3/4", Gr 5

1шт.

49

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

50

86521605

FLANGE NUT,5/16"-18, Cl 5

3шт.

51

84384

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl 66

4шт.

52

87313

JAM NUT,Jam, 3/4"-16, G2

2шт.

53

9825943

SENSOR

Speed

2шт.

54

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

1/2"

4шт.

55

87022323

CLAMP,25.4mm D Clamping Pipe

Hydraulic Tube

4шт.

56

86900727

COVER

Plate

4шт.

57

87405

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

8шт.

58

9626558

FLANGE NUT,Flg, 1/4"-20

8шт.

59

47581891

TEE

Diagnostic Port

4шт.

60

86502603

COUPLING

Diagnostic, Incl 66 - 67

4шт.

61

47561737

BRACKET

Ground Tube

2шт.

62

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

63

87055272

KIT

O-Ring, For Brake

2шт.

64

87055273

SCREW,5/16" x 1 17/64"

Bleeder

2шт.

65

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

66

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

10шт.

67

86502604

DUST CAP

Diagnostic Port

4шт.

68

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

4шт.

69

84572611

SHIM

2шт.
