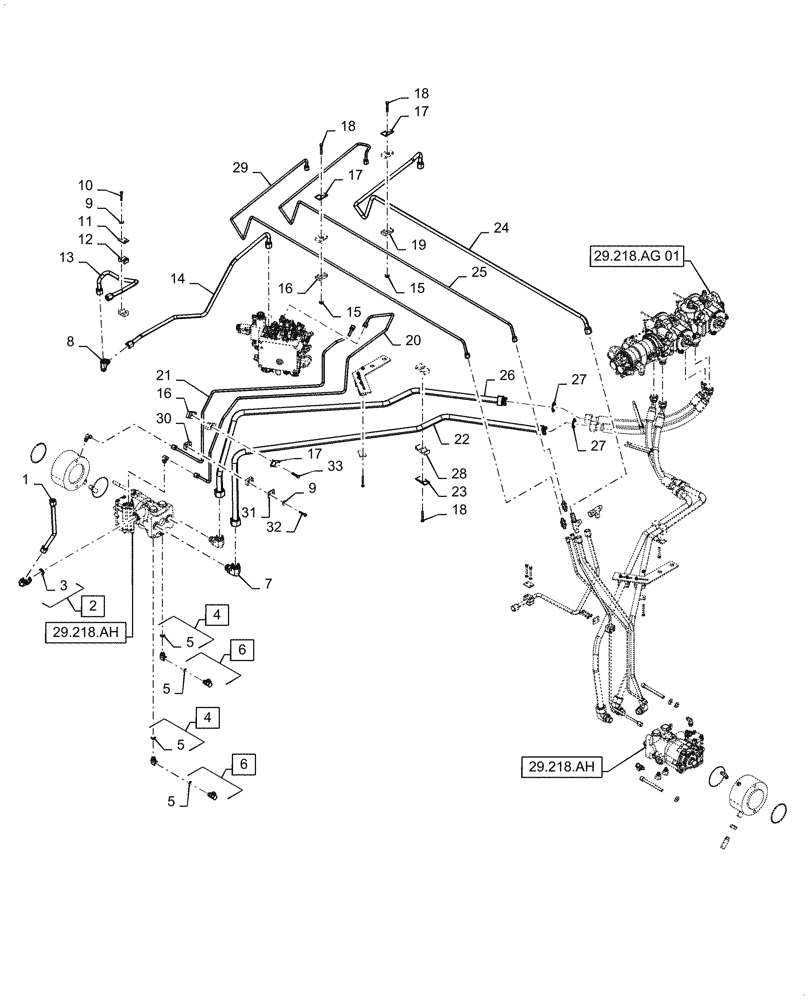

Запчасти Case IH WD2504 (29.204.AB[01]) - DRIVE, HYDRAULIC SYSTEM, 6 CYLINDER, STANDARD SPEED (29) - HYDROSTATIC DRIVE

1

47427706

HYD TUBE

RH, Motor Case Drain

1шт.

2

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 3

2шт.

3

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

4

47576544

UNION

Incl 5

2шт.

5

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

2шт.

6

86502603

COUPLING

Incl 5

2шт.

7

9846956

90 ELBOW,90 Degree, 1-7/16"-12 x 1-1/16"-12, Adj, ORFS

Incl 3

2шт.

8

16985

TEE,7/8"-14, 37 Degree

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

10

280164

BOLT,Hex, 1/4" - 20 x 1 3/4", Gr 5

2шт.

11

86900726

COVER

1шт.

12

87040663

CLAMP

1шт.

13

47629310

HYD TUBE

RH, Header Case Drain

1шт.

14

47426230

HYD TUBE

RH, Motor Case Drain

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

16

87000148

CLAMP

2шт.

17

384870A1

PLATE

Hose Clamp Cover

3шт.

18

9636711

BOLT,Hex, 5/16 - 18" x 2", Gr 5

3шт.

19

87000159

CLAMP

1шт.

20

47571034

HYD TUBE

RH, Motor Range

1шт.

21

47571038

HYD TUBE

Brake

1шт.

22

47425951

TUBE

RH, Motor Port B

1шт.

23

87000230

PLATE

Cover

1шт.

24

47360901

HYD TUBE

LH, Motor Case Drain

1шт.

25

47360903

HYD TUBE

LH, Brake

1шт.

26

47425946

TUBE

RH, Motor A Port

1шт.

27

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

28

86900725

CLAMP

1шт.

29

47360907

HYD TUBE

LH, Motor Range

1шт.

30

87603907

CLAMP

1шт.

31

87022336

PLATE

Cover

1шт.

32

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

33

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

1шт.
