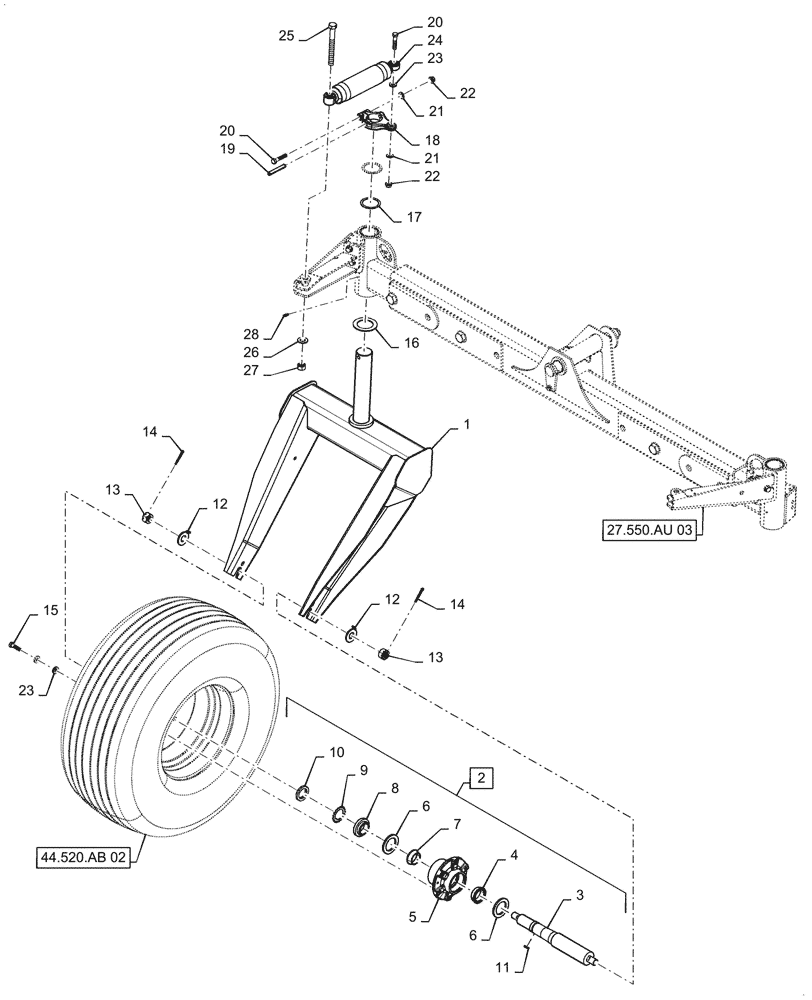

Запчасти Case IH WD2504 (27.550.AU) - FORK, REAR AXLE, WHEEL ASSY, ASN YGG677501 (27) - REAR AXLE SYSTEM

1

47966807

FORK

2шт.

2

47463688

SPINDLE

Incl 3 - 11

2шт.

3

84519522

SPINDLE

Spindle

2шт.

4

199954

BEARING CONE,50mm ID x 21.5mm W

2шт.

5

84525488

HUB

Bearing Cups NSS From Complete

2шт.

6

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

4шт.

7

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

2шт.

8

84519543

SPACER

2шт.

9

58153

BEARING WASHER,45.52mm ID x 70.2mm OD x 1.8mm Thk

Lock

2шт.

10

222008

BEARING LOCK NUT

2шт.

11

87473

KEY

Square, .1875 x .75 NA2.25.2

2шт.

12

84519596

RETAINER

4шт.

13

86020752

SLOTTED NUT

4шт.

14

87400

COTTER PIN,3/16" x 2"

4шт.

15

84545650

BOLT

12шт.

16

86581947

WASHER

2шт.

17

86546256

WASHER,64.29mm ID x 82.55mm OD x 1.7mm Thk

4шт.

18

47528603

BELLCRANK

2шт.

19

84323489

ROLL PIN

2шт.

20

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

4шт.

21

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

22

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

23

262183

WASHER

26шт.

24

47918454

SHOCK ABSORBER

2шт.

25

280316

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

26

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

27

280954

NUT,3/4"-10, G5

2шт.

28

87414

LUBE NIPPLE,1/4" - 28

2шт.
