Запчасти Case IH WD2504 (90.118.BM[01]) - MIRRORS, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

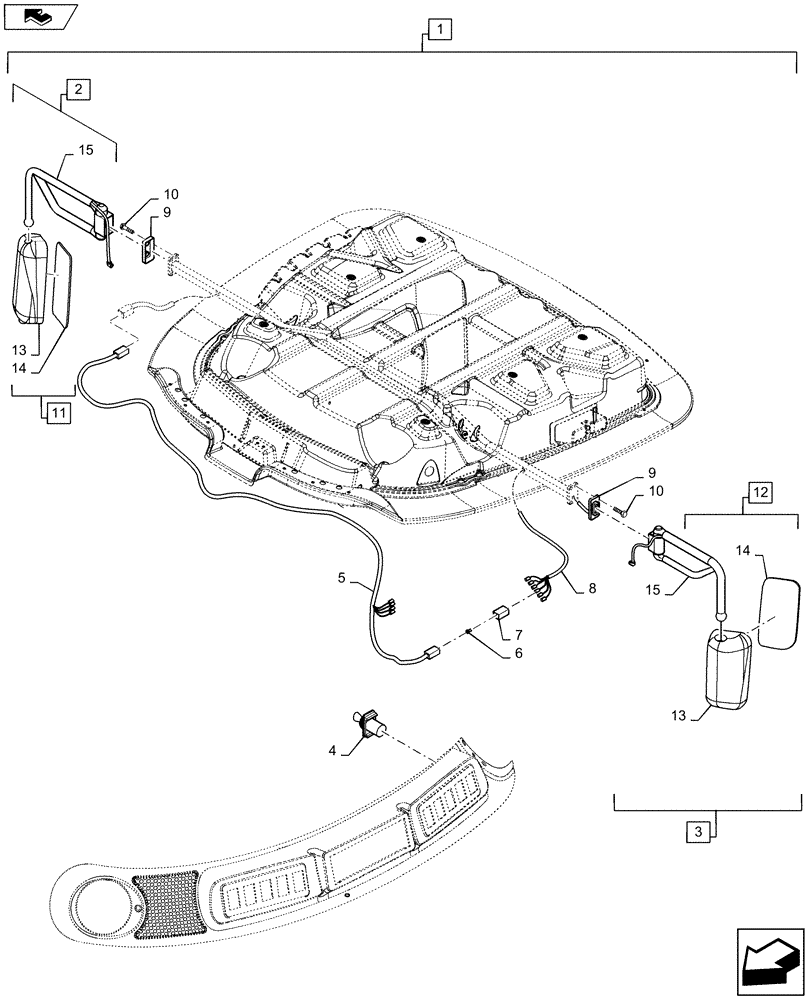

Схема запчастей Case IH WD2504 - (90.118.BM[01]) - MIRRORS, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
9
1
12
3
13
8
14
2
10
14
5
11
13
6
9
7
10
15
15

Артикул

Название

Примечание

Количество

1

717212006

DIA KIT, HARVESTER

Deluxe Mirrors; Incl 2 - 10 & Installation Instructions

1шт.

2

86837198

MIRROR ASSY.

Electrically Adjustable, RH; Incl 11 & 15

1шт.

3

86837199

MIRROR ASSY.

Electrically Adjustable, LH; Incl 12 & 15

1шт.

4

86565146

SWITCH, MIRROR ADJUS

1шт.

5

87041199

HARNESS

Wire

1шт.

5

84515763

WIRE HARNESS

For Model Year 16 Only

1шт.

6

84074642

WIRE CONNECTOR,Male

2шт.

7

9861378

CONTACT HOUSING

6-Pin Wedge

2шт.

8

NSS

NOT SOLD SEPARAT

Tube, Convoluted, Cut From Bulk

2шт.

9

84059856

WIRE CONNECTOR

Mounting Wedge

2шт.

10

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

8шт.

11

84059852

RH MIRROR

Incl 13 & 14

1шт.

12

84059851

LH MIRROR,205mm x 383.5mm

Incl 13 & 14

1шт.

13

84434473

COVER

Part is inverted to make symetrical assemblies

2шт.

14

84434478

REPLACEMENT MIRROR

Glass

2шт.

15

NSS

NOT SOLD SEPARAT

Incl In 1

2шт.

Выбрано товаров: 16
