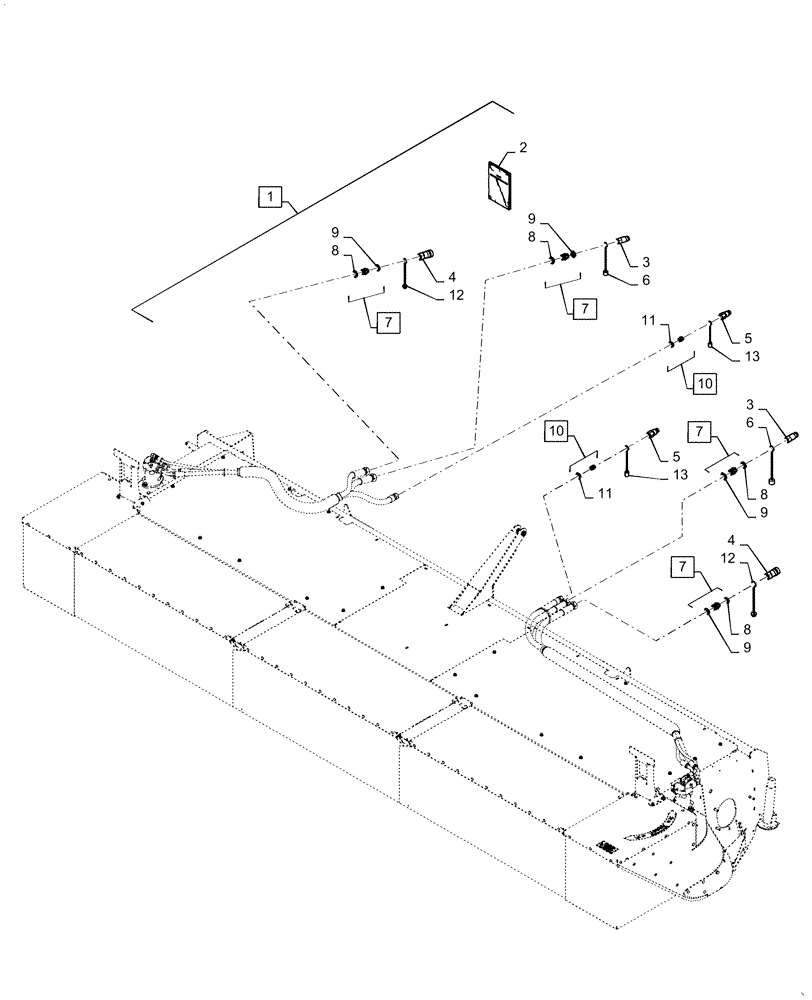

Запчасти Case IH WD2504 (88.100.58[10]) - KIT, POPPET COUPLER, DISC HEAD (88) - ACCESSORIES

1

47510965

KIT

Incl 2 - 13

1шт.

2

47526689

INSTRUCTION

1шт.

3

9820148

COUPLING,1-1/16" - 12

2шт.

4

86564734

COUPLING

2шт.

5

87037008

QUICK MALE COUPLING

2шт.

6

87036367

DUST CAP

2шт.

7

9840329

HYD CONNECTOR

Incl 9 - 10

4шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

10

86071

HYD CONNECTOR,7/8" - 14 JIC x 3/4" - 16 ORB

Incl 11

2шт.

11

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

87036366

DUST CAP

2шт.

13

86621124

DUST CAP

2шт.
