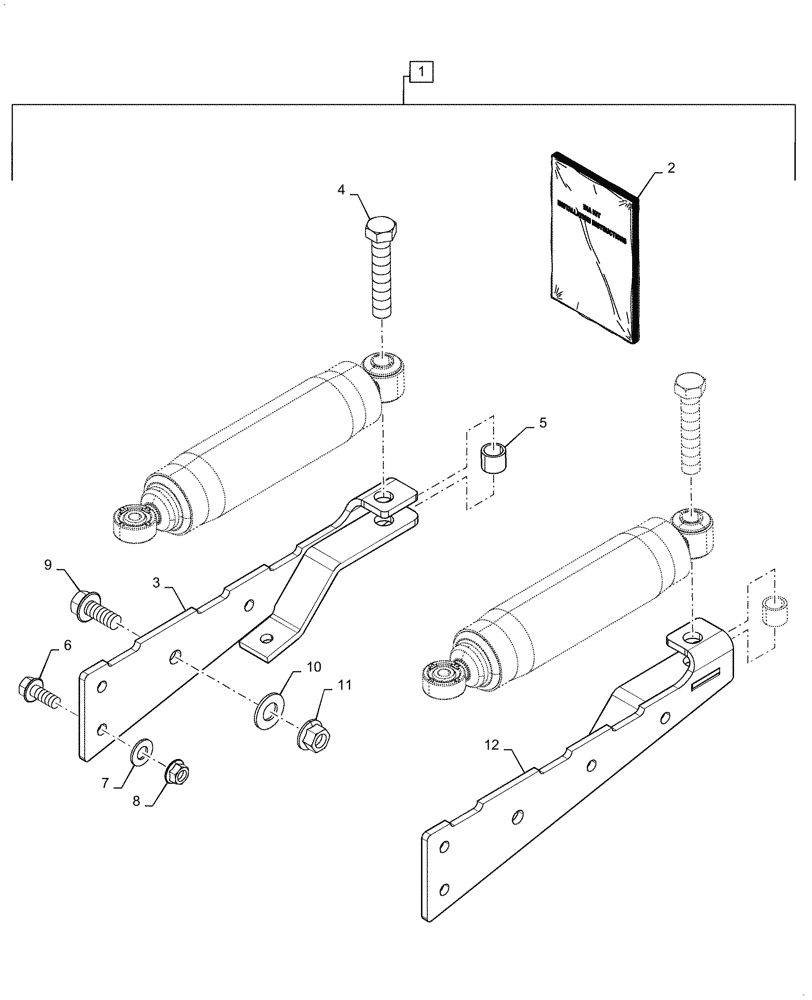

Запчасти Case IH WD2504 (88.100.35[07]) - KIT, SHOCK ADAPTER (88) - ACCESSORIES

1

47974207

KIT

Shock Adapter, Incl 2 - 13

1шт.

2

47998855

INSTRUCTION

Shock Adapter Kit

1шт.

3

47973619

SUPPORT

RH

1шт.

4

280210

BOLT,Hex, 3/4"-10 x 4", G5

2шт.

5

87578956

TUBE SPACER,19.9mm ID x 25.4mm OD x 20.6mm L

2шт.

6

86521614

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

10шт.

7

87389396

BELLEVILLE WASHER,M14 Bolt Size x 30mm OD x 2.4mm Thk

10шт.

8

87025806

LOCK NUT

10шт.

9

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

2шт.

10

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

11

86521611

FLANGE NUT,Flg, 5/8"-11

2шт.

12

47973563

SUPPORT

LH

1шт.

13

47952337

BOLT

Not Shown, Refer to Installation Instructions for Location

4шт.
