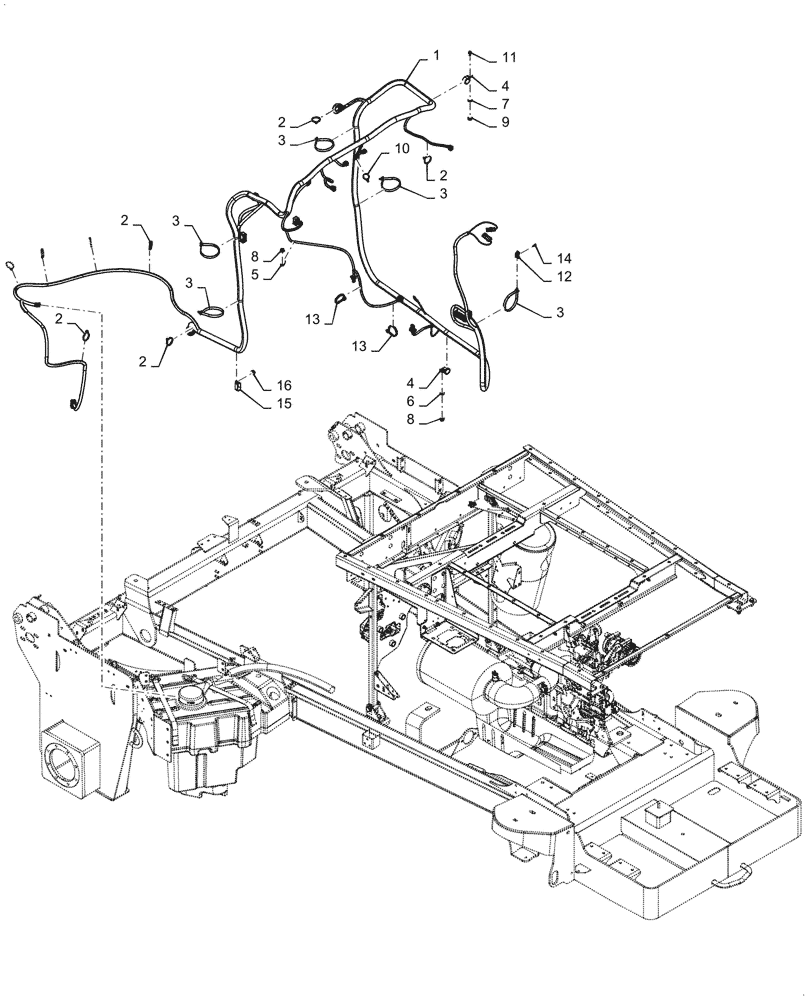

Запчасти Case IH WD2504 (55.988.AD[01]) - ENGINE & SCR ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

1

48151647

Engine

WIRE HARNESS

1шт.

2

86566989

CABLE TIE,208mm L

24шт.

3

84266050

CABLE TIE,384mm L, Polyamide

5шт.

4

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

12шт.

5

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

6

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

8

86050279

FLANGE NUT,M10 x 1.5, Cl 10

6шт.

9

86507066

FLANGE NUT,M8 x 1.25, Cl 10

7шт.

10

87668737

CABLE TIE,203.2mm L, Nylon, Black

1шт.

11

87656137

BOLT,Flange Hex, M8 x 20mm, Cl 10.9

3шт.

12

47412376

MOUNT

Cable Tie

1шт.

13

529070

CABLE TIE,368.3mm L

2шт.

14

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

1шт.

15

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

16

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.
