Запчасти Case IH WD2504 (55.680.AA[01]) - AUTO GUIDANCE READY, ASN YGG677501 (55) - ELECTRICAL SYSTEMS

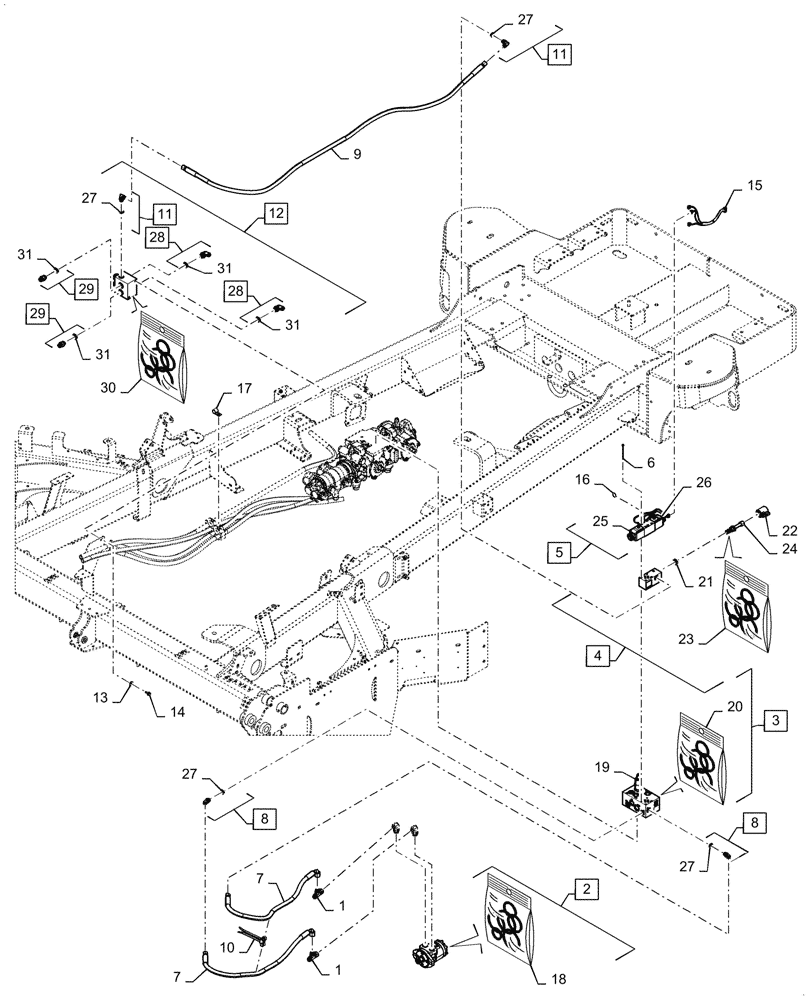

Схема запчастей Case IH WD2504 - (55.680.AA[01]) - AUTO GUIDANCE READY, ASN YGG677501 (55) - ELECTRICAL SYSTEMS
28
27
8
22
31
6
7
1
13
3
31
8
5
21
14
24
9
12
29
1
7
27
16
18
31
23
11
26
17
28
15
19
2
11
31
10
25
30
27
29
4
20
27

Артикул

Название

Примечание

Количество

1

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

2шт.

2

48005525

HYDRAULIC MOTOR

49 CC/Rev

1шт.

3

47404488

HYDRAULIC MANIFOLD

Chatge Relief

1шт.

4

47958675

MANIFOLD

Hydraulic, DO3 Enable Valve

1шт.

5

47430933

HYDRAULIC MANIFOLD

Auto Guidance

1шт.

6

87698787

SCREW

M5 x 80

4шт.

7

47975982

HYDRAULIC HOSE

Prop Cylinder And Auto Guidance

2шт.

8

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

2шт.

9

47981994

HYDRAULIC HOSE

1шт.

10

84386243

CLAMP,489mm L

1шт.

11

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

1шт.

12

47999326

MANIFOLD

Hydraulic Assy

1шт.

13

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

14

86521552

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

47444819

WIRE HARNESS

Auto Guidance

1шт.

16

86566989

CABLE TIE,208mm L

8шт.

17

86512388

CLAMP,19.05mm ID, 10.41mm Bolt Hole, P Type

1шт.

18

47725943

SEAL KIT

Hydraulic Motor, Incl In Ref 2

1шт.

19

47719449

VALVE

Charge Relief, Incl In Ref 3

1шт.

20

86514794

SEAL KIT

Manifold, Incl In Ref 3

1шт.

21

86629543

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

Incl In Ref 4

4шт.

22

87352779

SOLENOID

Incl In Ref 4

1шт.

23

47394721

SEAL KIT

Incl In Ref 4

1шт.

24

87283662

CARTRIDGE

Incl In Ref 4

1шт.

25

47726106

COIL

A Port 2 Pin, Incl In Ref 5

1шт.

26

47726107

COIL

B Port 3 Pin, Incl In Ref 5

1шт.

27

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Incl In Ref 8, 11

3шт.

28

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl In Ref 12

2шт.

29

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl In Ref 12

2шт.

30

48024923

KIT

Kick Valve Plate, Incl In Ref 12

1шт.

31

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Incl In Ref 28

4шт.

Выбрано товаров: 31
