Запчасти Case IH WD2504 (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM6 (CONT,) (55) - ELECTRICAL SYSTEMS

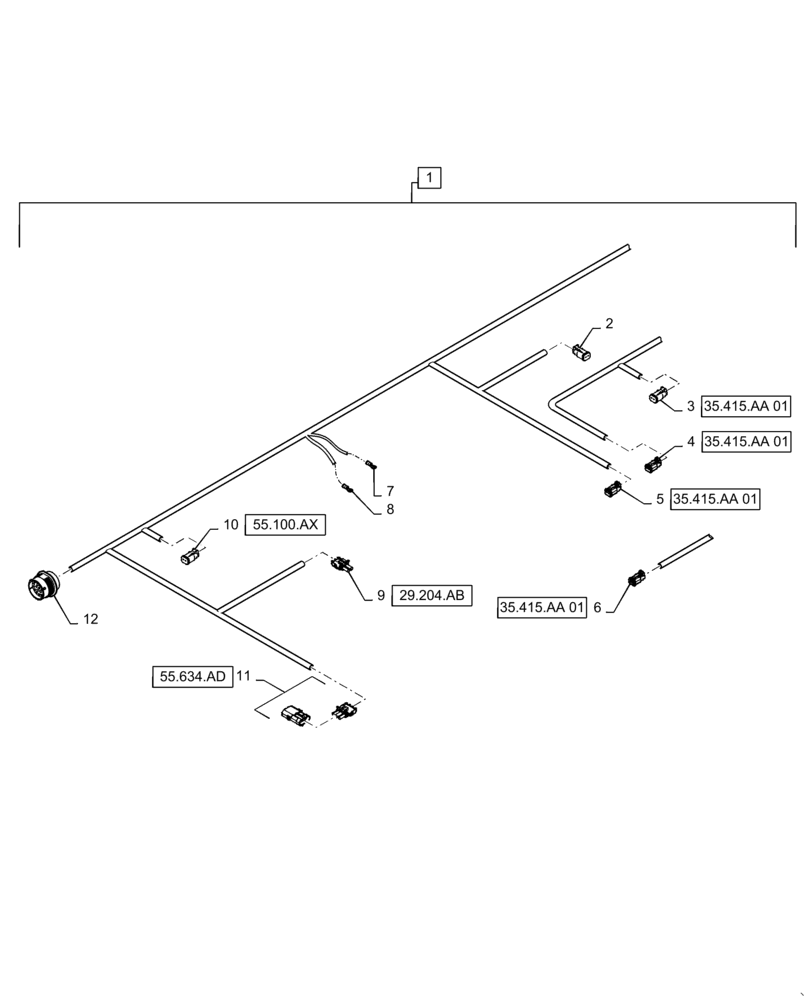

Схема запчастей Case IH WD2504 - (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM6 (CONT,) (55) - ELECTRICAL SYSTEMS
12
35.415.aa 01
55.100.ax
8
11
6
4
29.204.ab
3
5
7
9
10
35.415.aa 01
35.415.aa 01
55.634.ad
2
1
35.415.aa 01

Артикул

Название

Примечание

Количество

1

47474923

WIRE HARNESS

FM6, Incl 2 - 12 (Continued)

1шт.

2

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

2

84074638

LOCKING TAB,Locking Wedge, Green

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-065 Solenoid, Lift Arm Power Down (Black) X-146

2шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-006 Solenoid, Header Raise Valve, Right (Black) X-097

2шт.

4

84277532

ELEC CONNECTOR

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

1шт.

4

84277220

LOCKING TAB,Wedge Lock

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-005 Solenoid, Header Raise Valve, Left (Red) X-096

2шт.

5

84277193

ELEC CONNECTOR

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

1шт.

5

84277220

LOCKING TAB,Wedge Lock

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

1шт.

5

84277237

TERMINAL

Y-064 Solenoid, Ground Speed Range Low (Gray) X-143

1шт.

6

47486924

ELEC CONNECTOR

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

1шт.

6

84277220

LOCKING TAB,Wedge Lock

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

1шт.

6

84277237

TERMINAL

Y-008 Solenoid, Header Lower Valve, Right (Brown) X-099

2шт.

7

84128198

HEAT SHIELD

GND-003, X-433

1шт.

7

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-433

3шт.

8

84128198

HEAT SHIELD

GND-003, X-281

1шт.

8

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

GND-003, X-281

1шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

9

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

9

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

10

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

10

84074638

LOCKING TAB,Locking Wedge, Green

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

10

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

11

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

11

87692858

ELEC CONNECTOR,Male

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

11

87686742

PLUG

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

11

87692880

CABLE TERMINAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

11

87680701

SEAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

12

84364896

PLUG

FM To AD Pass-Thru Connector, X-192

1шт.

12

84607513

LOCK WASHER

FM To AD Pass-Thru Connector, X-192

1шт.

12

84068583

PLUG,12 - 16 Ga, White

FM To AD Pass-Thru Connector, X-192

1шт.

12

87696184

NUT

FM To AD Pass-Thru Connector, X-192

1шт.

12

87716289

COVER

FM To AD Pass-Thru Connector, X-192

1шт.

12

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To AD Pass-Thru Connector, X-192

3шт.

12

87695923

TERMINAL

FM To AD Pass-Thru Connector, X-192

1шт.

12

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To AD Pass-Thru Connector, X-192

5шт.

Выбрано товаров: 39
