Запчасти Case IH WD2504 (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS

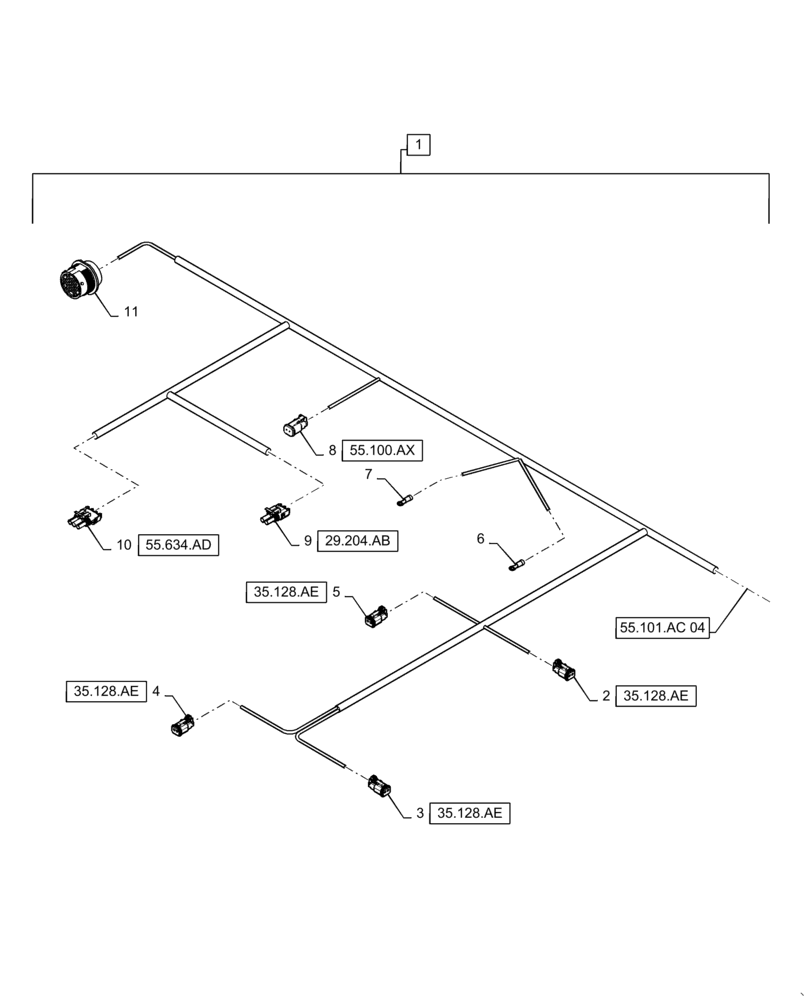

Схема запчастей Case IH WD2504 - (55.101.AC[05]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS
29.204.ab
4
9
55.634.ad
2
5
3
35.128.ae
1
55.100.ax
11
6
55.101.ac 04
10
35.128.ae
8
7
35.128.ae
35.128.ae

Артикул

Название

Примечание

Количество

1

47474924

WIRE HARNESS

FD6, Incl 2 - 11 (Continued)

1шт.

2

47486924

ELEC CONNECTOR

Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

1шт.

2

84277220

LOCKING TAB,Wedge Lock

Lock, Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

1шт.

2

84277237

TERMINAL

Y-037 Solenoid, Draper Lift Position, Right (Brown), X-142

2шт.

3

84277534

ELEC CONNECTOR

Y-036 Solenoid, Cut Height Position, Left (Green), X-159

1шт.

3

84277220

LOCKING TAB,Wedge Lock

Lock, Y-036 Solenoid, Cut Height Position, Left (Green), X-159

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-036 Solenoid, Cut Height Position, Left (Green), X-159

2шт.

4

84277535

ELEC CONNECTOR,Female, 2 Cavities

Connector, Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

4

84277220

LOCKING TAB,Wedge Lock

Lock, Y-019 Solenoid, Equalization (Yellow), X-088

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-019 Solenoid, Equalization (Yellow), X-088

2шт.

5

84277533

ELEC CONNECTOR,Fem, 2 Cavities/Pins

Connector, Y-038 Solenoid, Draper Unload (Blue), X-137

1шт.

5

84277220

LOCKING TAB,Wedge Lock

Lock, Y-038 Solenoid, Draper Unload (Blue), X-137

1шт.

5

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-038 Solenoid, Draper Unload (Blue), X-137

2шт.

6

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-003, X-433

3шт.

7

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-003, X-281

4шт.

8

87695582

ELEC CONNECTOR,Female, 2 Pole

E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

8

84074638

LOCKING TAB,Locking Wedge, Green

Lock, E-012 Lamp, Base Unit, Flashing, Right, X-325

1шт.

8

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

E-012 Lamp, Base Unit, Flashing, Right, X-325

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

B-002 Sensor, Ground Speed, Right, X-111

1шт.

9

87680701

SEAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

9

87692856

CABLE TERMINAL

B-002 Sensor, Ground Speed, Right, X-111

2шт.

10

87644909

WIRE CONNECTOR,Female, 3 Pins

B-056 Sensor, Lift Arm Position, Right, X-077

1шт.

10

87680701

SEAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

10

87692856

CABLE TERMINAL

B-056 Sensor, Lift Arm Position, Right, X-077

3шт.

11

84364896

PLUG

Connector, FM To AD Pass Thru, X-192

1шт.

11

84607513

LOCK WASHER

FM To AD Pass Thru, X-192

1шт.

11

84068583

PLUG,12 - 16 Ga, White

FM To AD Pass Thru, X-192

1шт.

11

87696184

NUT

FM To AD Pass Thru, X-192

1шт.

11

87716289

COVER

FM To AD Pass Thru, X-192

1шт.

11

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

FM To AD Pass Thru, X-192

14шт.

11

87695923

TERMINAL

FM To AD Pass Thru, X-192

4шт.

11

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

FM To AD Pass Thru, X-192

2шт.

Выбрано товаров: 32
