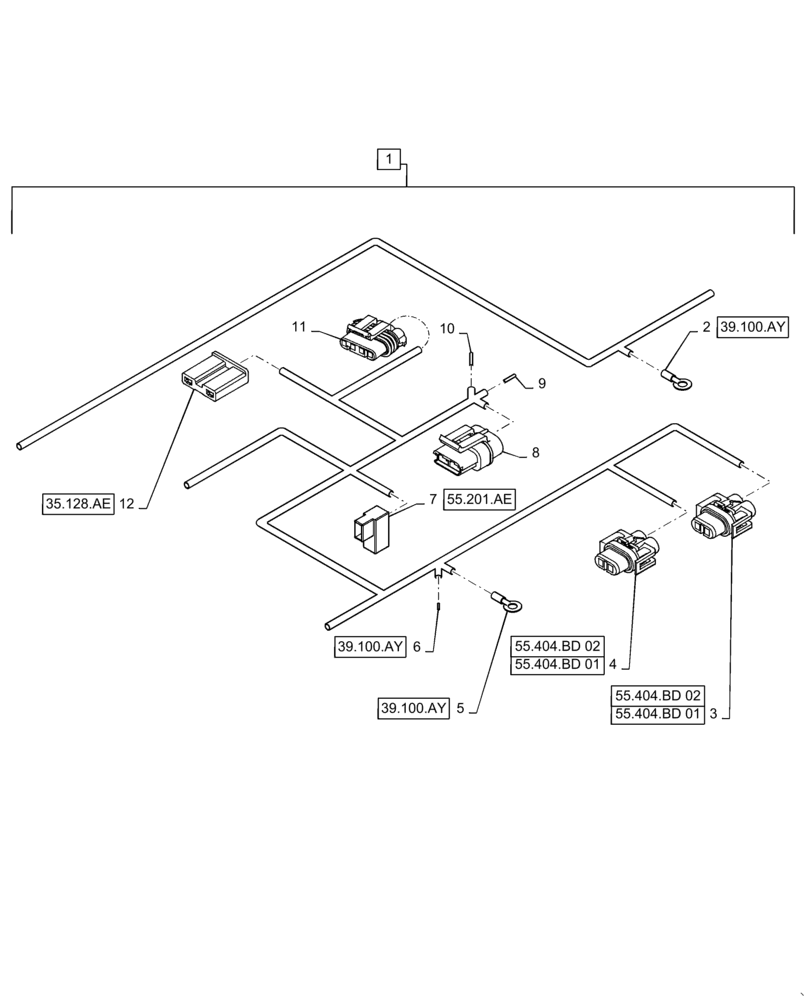

Запчасти Case IH WD2504 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474923

WIRE HARNESS

FM6, Incl 2 - 12 (Continued)

1шт.

2

84128198

HEAT SHIELD

GND-008 Right Rear Frame, X-011

1шт.

2

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-008 Right Rear Frame, X-011

1шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-024 Lamp, Work, Left Rear, X-225

1шт.

3

87690602

LOCK

E-024 Lamp, Work, Left Rear, X-225

1шт.

3

87680656

CONTACT

E-024 Lamp, Work, Left Rear, X-225

2шт.

3

87680701

SEAL

E-024 Lamp, Work, Left Rear, X-225

2шт.

4

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-022 Lamp, Stubble, Light, X-283

1шт.

4

87690602

LOCK

E-022 Lamp, Stubble, Light X-283

1шт.

4

87680656

CONTACT

E-022 Lamp, Stubble, Light X-283

2шт.

4

87680701

SEAL

E-022 Lamp, Stubble, Light X-283

2шт.

5

84128198

HEAT SHIELD

GND-001 Left Rear Frame, X-296

1шт.

5

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

3шт.

6

84128198

HEAT SHIELD

GND-005 Left Rear Frame, X-305

1шт.

6

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-005 Left Rear Frame, X-305

1шт.

7

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

7

371230-AL02

TERMINAL

Terminal, M-008 Motor, Starter, X-348

1шт.

8

87688712

WIRE CONNECTOR,Female

F-057 Fuse, Alternator "W" Line, X-020

1шт.

8

87688863

CAP

F-057 Fuse, Alternator "W" Line, X-020

1шт.

8

83933689

FUSE,10A, Red

F-057 Fuse, Alternator "W" Line, X-020

1шт.

8

87688848

TERMINAL

F-057 Fuse, Alternator "W" Line X-020

2шт.

9

84128198

HEAT SHIELD

G-001 Alternator, X-212

1шт.

9

84159852

TERMINAL,#10 Ring, SAE 18 - 20

G-001 Alternator, X-212

1шт.

10

84128198

HEAT SHIELD

G-001 Alternator, X-148

1шт.

10

84159854

TERMINAL,M8

G-001 Alternator, X-148

1шт.

11

87679489

Y-011 Solenoid, PTO Reverse/Forward, X-106

ELEC CONNECTOR

1шт.

11

87689643

CLIP,4.8mm ID

Y-011 Solenoid, PTO Reverse/Forward, X-106

1шт.

11

87688852

ELEC. TERMINAL PIN

Y-011 Solenoid, PTO Reverse/Forward, X-106

4шт.

11

87689629

SEAL

Y-011 Solenoid, PTO Reverse/Forward, X-106

4шт.

12

87709211

ELEC CONNECTOR

S-010 Switch, HYD. Charge Pressure, X-139

1шт.

12

87709400

ELEC. TERMINAL PIN

S-010 Switch, HYD. Charge Pressure, X-139

2шт.
