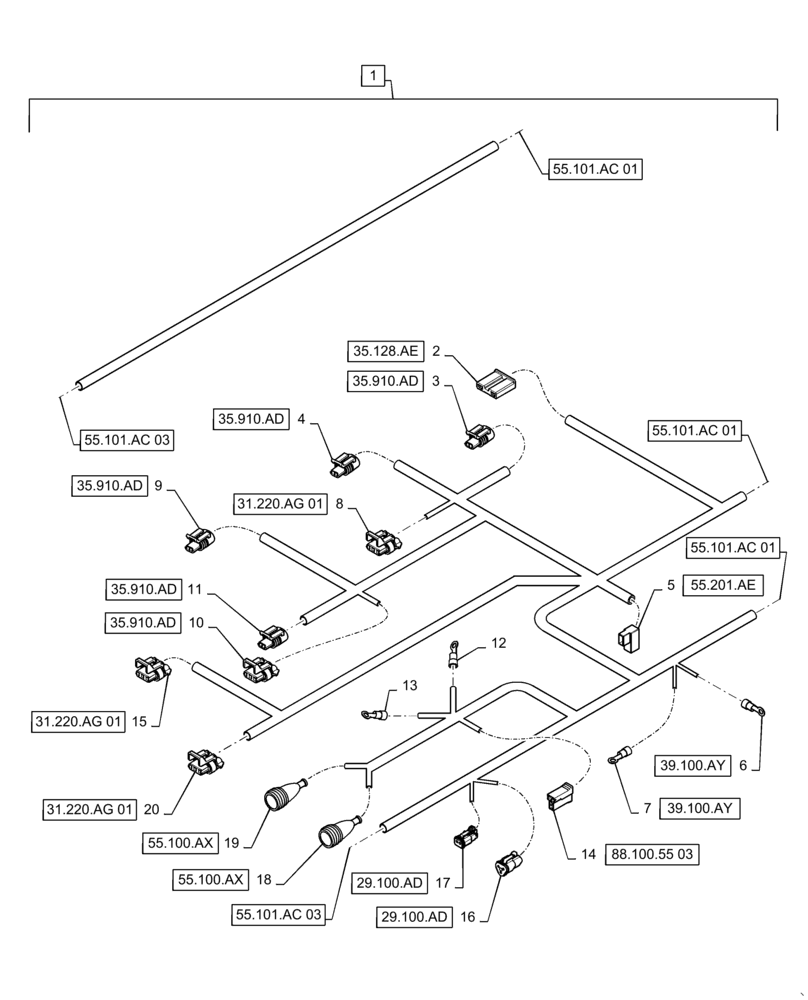

Запчасти Case IH WD2504 (55.101.AC[02]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474924

WIRE HARNESS

FD6, Incl 2 - 20 (Continued)

1шт.

2

87709211

ELEC CONNECTOR

Connector, S-010 Switch, Hydraulic Charge Pressure, X-139

1шт.

2

87709400

ELEC. TERMINAL PIN

S-010 Switch, Hydraulic Charge Pressure, X-139

2шт.

3

82012083

WIRE CONNECTOR,Female

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

1шт.

3

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

2шт.

3

82012084

SEAL,1.4mm ID

Y-071 Solenoid, PTO Tandem Pump Leftside Reverse, X-046

2шт.

4

82012083

WIRE CONNECTOR,Female

Y-070 Solenoid, PTO Tandem Pump Leftside Forward, X169

1шт.

4

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-070 Solenoid, PTO Tandem Pump Leftside Forward, X169

2шт.

4

82012084

SEAL,1.4mm ID

Y-070 Solenoid, PTO Tandem Pump Leftside Forward, X169

2шт.

5

84120017

ELEC CONNECTOR

M-008 Motor, Starter, X-348

1шт.

5

371230-AL02

TERMINAL

Terminal, M-008 Motor, Starter, X-348

1шт.

6

84398832

TERMINAL,Eyelet, M10, 1.00 - 2.00mm

GND-001 Left Rear Frame, X-296

3шт.

7

84401281

TERMINAL,3/8" Ring, SAE 10 - 12

Terminal, GND-001 Left Rear Frame, X-305

1шт.

8

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-064 Sensor. Swash Plate Angle, Pump 1

1шт.

8

87693732

LOCKING TAB,Wedge Lock

Lock, B-064 Sensor. Swash Plate Angle, Pump 1

1шт.

8

87688852

ELEC. TERMINAL PIN

B-064 Sensor. Swash Plate Angle, Pump 1

3шт.

8

87689629

SEAL

B-064 Sensor. Swash Plate Angle, Pump 1

3шт.

9

82012083

WIRE CONNECTOR,Female

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

1шт.

9

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

9

82012084

SEAL,1.4mm ID

Y-073 Solenoid, PTO Tandem Pump Right Side, Reverse, X-156

2шт.

10

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

10

87693732

LOCKING TAB,Wedge Lock

Lock, B-065 Sensor, Swash Plate Angle, Pump 2, X-089

1шт.

10

87688852

ELEC. TERMINAL PIN

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

10

87689629

SEAL

B-065 Sensor, Swash Plate Angle, Pump 2, X-089

3шт.

11

82012083

WIRE CONNECTOR,Female

Y-072 Solenoid, PTO Tandem Pump Right Side, Forward, X-153

1шт.

11

82012085

TERMINAL CONNECTOR,Female, Tin, 0.75 - 1.5mm

Y-072 Solenoid, PTO Tandem Pump Right Side, Forward, X-153

2шт.

11

82012084

SEAL,1.4mm ID

Y-072 Solenoid, PTO Tandem Pump Right Side, Forward, X-153

2шт.

12

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-196

1шт.

13

87697629

ELEC. TERMINAL PIN,Female, 18 - 14 SAE

S-043 Switch, Fuel Door Light, X-345

1шт.

14

82944110

ELEC CONNECTOR,Female, 2 Cavities

J-007 Jack, Service Light, Left, X-255

1шт.

14

87690511

ELEC CONNECTOR

Terminal, J-007 Jack, Service Light, Left, X-255

2шт.

15

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

1шт.

15

87693732

LOCKING TAB,Wedge Lock

Lock, B-059 Sensor, Swash Plate Angle, Left (Front), X-078

1шт.

15

87689629

SEAL

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

3шт.

15

87688852

ELEC. TERMINAL PIN

B-059 Sensor, Swash Plate Angle, Left (Front), X-078

3шт.

16

87695580

ELEC CONNECTOR,Female, 3 Pole

Y-049 Solenoid, Propulsion Reverse, X-112

1шт.

16

84068583

PLUG,12 - 16 Ga, White

Y-049 Solenoid, Propulsion Reverse, X-112

1шт.

16

84074639

LOCKING TAB,Wedge Lock

Lock, Y-049 Solenoid, Propulsion Reverse, X-112

1шт.

16

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-049 Solenoid, Propulsion Reverse, X-112

2шт.

17

87695582

ELEC CONNECTOR,Female, 2 Pole

Y-050 Solenoid, Propulsion Forward, X-065

1шт.

17

84074638

LOCKING TAB,Locking Wedge, Green

Lock, Y-050 Solenoid, Propulsion Forward, X-065

1шт.

17

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Y-050 Solenoid, Propulsion Forward, X-065

2шт.

18

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

H-002 Horn, X-144

1шт.

18

84364894

BOOT

Boot, H-002 Horn, X-144

1шт.

19

87690511

ELEC CONNECTOR

Terminal, H-002 Horn, X-145

1шт.

19

84364894

BOOT

Boot, H-002 Horn, X-145

1шт.

20

87693712

ELEC CONNECTOR,Female, 3 Cavities

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

1шт.

20

87693732

LOCKING TAB,Wedge Lock

Lock, B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

1шт.

20

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

1шт.

20

87688852

ELEC. TERMINAL PIN

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

2шт.

20

87689629

SEAL

B-060 Sensor, Swash Plate Angle, Right (Rear), X-079

3шт.
