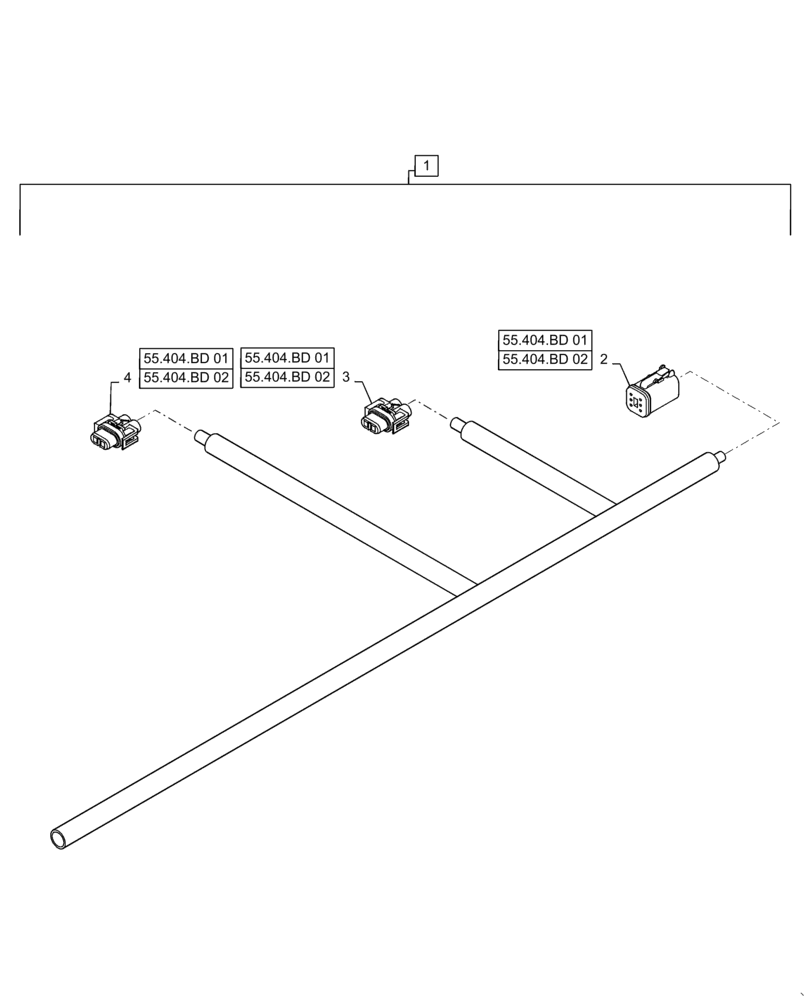

Запчасти Case IH WD2504 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, FM6 (55) - ELECTRICAL SYSTEMS

1

47474923

WIRE HARNESS

FM6, Incl 2 - 4 (Continued)

1шт.

2

87694112

ELEC CONNECTOR,Female, 6 Pole

Frame To Tail Lights Pass Thru, X149

1шт.

2

87694150

LOCKING TAB,Wedge Lock

Frame To Tail Lights Pass Thru, X149

1шт.

2

86500036

TERMINAL,Female, Nickel, 0.75 - 2mm

Frame To Tail Lights Pass Thru, X149

4шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Frame To Tail Lights Pass Thru, X149

2шт.

3

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87690602

LOCK

E-025 Lamp, Work, Right Rear, X-222

1шт.

3

87680656

CONTACT

E-025 Lamp, Work, Right Rear, X-222

2шт.

3

87680701

SEAL

E-025 Lamp, Work, Right Rear, X-222

2шт.

4

82003123

MULTIPOLE CONNECTOR,Female, 2 Pole

E-023 Lamp, Stubble, Right, X-221A

1шт.

4

87690602

LOCK

E-023 Lamp, Stubble, Right, X-221A

1шт.

4

87680656

CONTACT

E-023 Lamp, Stubble, Right, X-221A

2шт.

4

87680701

SEAL

E-023 Lamp, Stubble, Right, X-221A

2шт.
