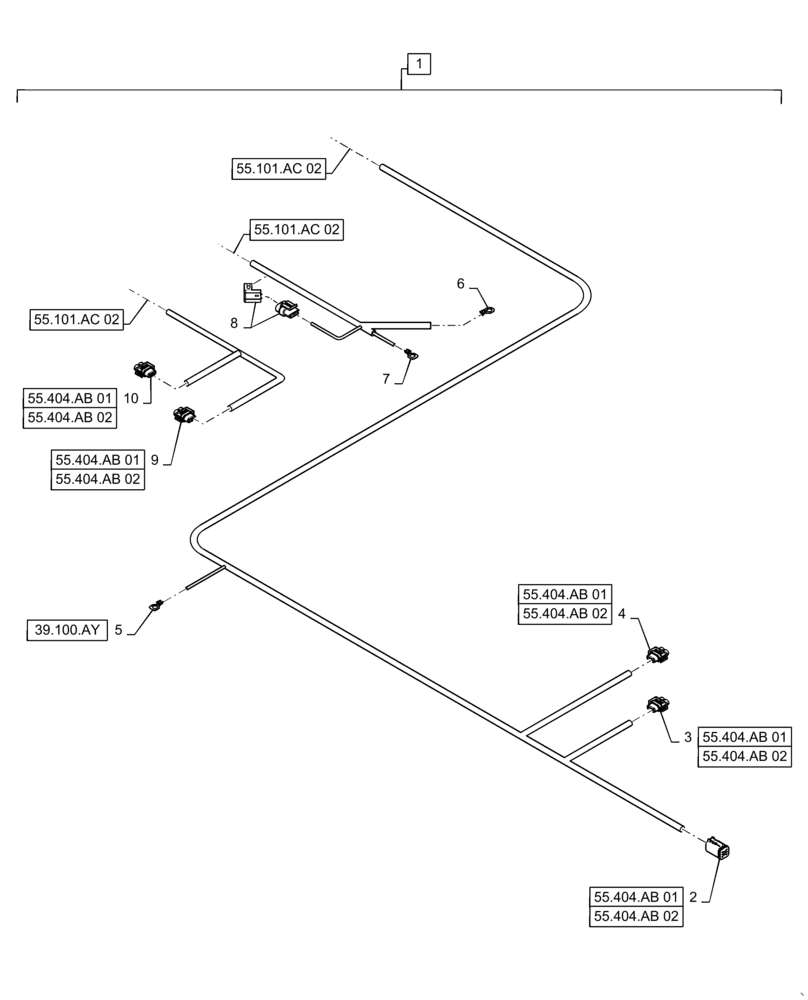

Запчасти Case IH WD2504 (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case IH WD2504 - (55.101.AC[01]) - WIRE HARNESS & CONNECTOR, DRAPER, FD6 (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/caseih/5276096.png)
№
Артикул
Название
Примечание
Количество
1
47474924
WIRE HARNESS
FD6, Incl 2 - 10
1шт.
2
87694112
ELEC CONNECTOR,Female, 6 Pole
Frame To Tail Lights Pass Thru, X-149
1шт.
2
87694150
LOCKING TAB,Wedge Lock
Frame To Tail Lights Pass Thru, X-149
1шт.
2
86500036
TERMINAL,Female, Nickel, 0.75 - 2mm
Frame To Tail Lights Pass Thru, X-149
4шт.
2
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
Frame To Tail Lights Pass Thru, X-149
2шт.
3
82003123
MULTIPOLE CONNECTOR,Female, 2 Pole
E-025 Lamp, Work, Right Rear, X-222
1шт.
3
87690602
LOCK
E-025 Lamp, Work, Right Rear, X-222
1шт.
3
87680656
CONTACT
E-025 Lamp, Work, Right Rear, X-222
2шт.
3
87680701
SEAL
E-025 Lamp, Work, Right Rear, X-222
2шт.
4
82003123
MULTIPOLE CONNECTOR,Female, 2 Pole
E-023 Lamp, Stubble, Right, X-221A
1шт.
4
87690602
LOCK
E-023 Lamp, Stubble, Right, X-221A
1шт.
4
87680656
CONTACT
E-023 Lamp, Stubble, Right, X-221A
2шт.
4
87680701
SEAL
E-023 Lamp, Stubble, Right, X-221A
2шт.
5
84401281
TERMINAL,3/8" Ring, SAE 10 - 12
Terminal, GND-008 Right Rear Frame, X-011
1шт.
6
84159854
TERMINAL,M8
G-001 Alternator, X-148
1шт.
7
84159852
TERMINAL,#10 Ring, SAE 18 - 20
Terminal, G-001 Alternator, X-212
1шт.
8
87688712
WIRE CONNECTOR,Female
F-057 Fuse, Alternator "W" Line, X-020
1шт.
8
87688863
CAP
F-057 Fuse, Alternator "W" Line, X-020
1шт.
8
83933689
FUSE,10A, Red
F-057 Fuse, Alternator "W" Line, X-020
1шт.
8
87688848
TERMINAL
F-057 Fuse, Alternator "W" Line, X-020
2шт.
9
82003123
MULTIPOLE CONNECTOR,Female, 2 Pole
E-024 Lamp, Work, Left Rear, X-225
1шт.
9
87690602
LOCK
E-024 Lamp, Work, Left Rear, X-225
1шт.
9
87680656
CONTACT
E-024 Lamp, Work, Left Rear, X-225
2шт.
9
87680701
SEAL
E-024 Lamp, Work, Left Rear, X-225
2шт.
10
82003123
MULTIPOLE CONNECTOR,Female, 2 Pole
E-022 Lamp, Stubble, Light, X-283
1шт.
10
87690602
LOCK
E-022 Lamp, Stubble, Light, X-283
1шт.
10
87695921
CONTACT,Female, Nickel, 0.50 - 1.00mm
E-022 Lamp, Stubble, Light, X-283
1шт.
10
87680656
CONTACT
E-022 Lamp, Stubble, Light, X-283
1шт.
10
87680701
SEAL
E-022 Lamp, Stubble, Light, X-283
2шт.
Выбрано товаров: 29
