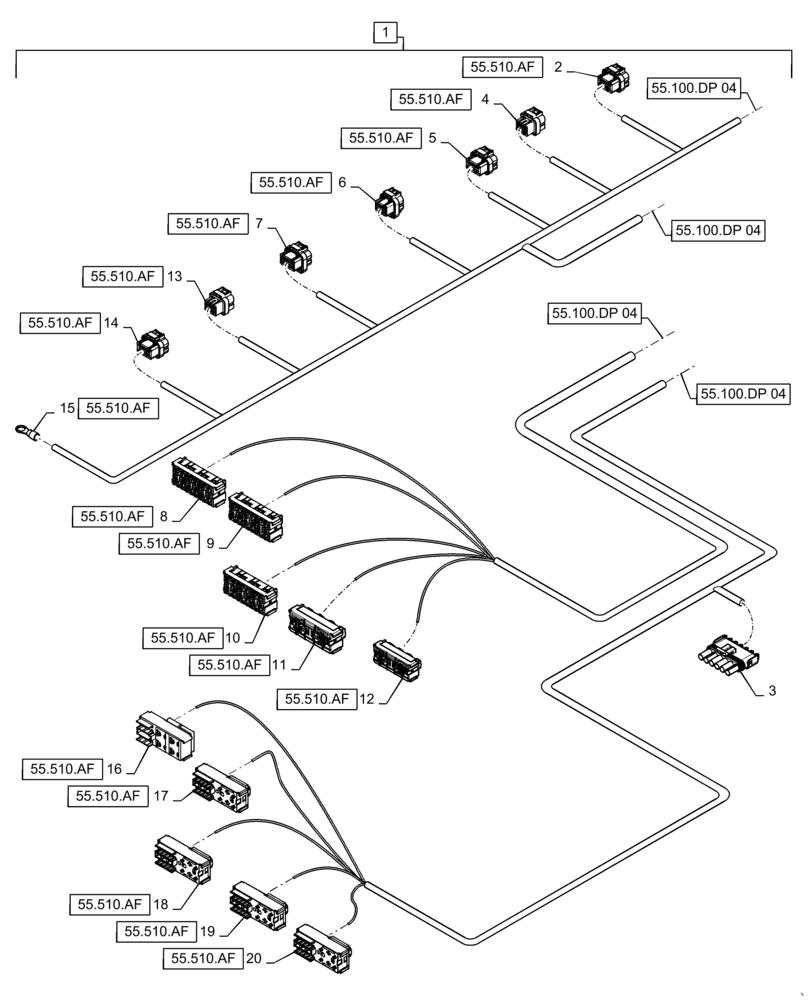

Запчасти Case IH WD2504 (55.100.DP[05]) - WIRE HARNESS & CONNECTOR, DRAPER, CD6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474916

WIRE HARNESS

CD6, Incl 2 - 20 (Continued)

1шт.

2

87410946

MULTIPOLE CONNECTOR,Female, 34 Cavities

A-001 UCM, X-002

1шт.

2

82017048

CABLE TERMINAL

A-001 UCM, X-002

24шт.

3

87039236

ELEC CONNECTOR

D-009 Diode Module, X-502

1шт.

3

87022597

MODULE

D-009 Diode Module, X-502

1шт.

3

87686742

PLUG

D-009 Diode Module, X-502

1шт.

3

87680701

SEAL

D-009 Diode Module, X-502

5шт.

5

87692856

CABLE TERMINAL

D-009 Diode Module, X-502

5шт.

4

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-003

1шт.

4

82017048

CABLE TERMINAL

A-001 UCM, X-003

20шт.

5

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 Module, UCM, X-004

1шт.

5

82017048

CABLE TERMINAL

A-001 Module, UCM, X-004

22шт.

6

84130757

ELEC CONNECTOR,Female, 26 Cavities

A-001 Module, UCM, X-005

1шт.

6

82017048

CABLE TERMINAL

A-001 Module, UCM, X-005

20шт.

7

84130760

ELEC CONNECTOR,Female, 34 Cavities

A-001 UCM, X-006

1шт.

7

82017048

CABLE TERMINAL

A-001 UCM, X-006

23шт.

8

84526304

MODULE

Z-009, X-372

1шт.

8

84529032

TERMINAL

Z-009, X-372

8шт.

8

84491250

TERMINAL

Z-009, X-372

6шт.

9

84526304

MODULE

Z-008, X-366

1шт.

9

84529032

TERMINAL

Z-008, X-366

11шт.

9

84491250

TERMINAL

Z-008, X-366

8шт.

9

84491251

TERMINAL

Z-008, X-366

2шт.

10

84526304

MODULE

Z-007, X-365

1шт.

10

84491251

TERMINAL

Z-007, X-365

6шт.

10

84491250

TERMINAL

Z-007, X-365

4шт.

10

84207859

TERMINAL

Z-007, X-365

2шт.

10

84529032

TERMINAL

Z-007, X-365

12шт.

11

84405124

ELEC CONNECTOR,Female, 8 Cavities

Connector, Z-001, X-360

1шт.

11

84405125

LOCKING TAB

Lock, Z-001, X-360

1шт.

11

84491250

TERMINAL

Z-001, X-360

4шт.

11

84164961

TERMINAL

Z-001, X-360

4шт.

12

84405124

ELEC CONNECTOR,Female, 8 Cavities

Connector, Z-010, X-165

1шт.

12

84405125

LOCKING TAB

Lock, Z-010, X-165

1шт.

12

84164961

TERMINAL

Z-010, X-165

2шт.

12

84491250

TERMINAL

Z-010, X-165

2шт.

13

82028493

MULTIPOLE CONNECTOR,Female, 26 Pole

A-001 UCM, X-007

1шт.

13

82017048

CABLE TERMINAL

A-001 UCM, X-007

8шт.

14

82028495

MULTIPOLE CONNECTOR,Female, 34 Pole

A-001 UCM, X-008

1шт.

14

82017048

CABLE TERMINAL

A-001 UCM, X-008

24шт.

15

84399574

TERMINAL,5/16" Ring, SAE 10 - 12

Terminal, GND-002 UCM Ground, X-333

3шт.

16

87733596

FUSE BOX

Z-006, X-356

1шт.

16

84123442

TERMINAL

Z-006, X-356

6шт.

16

84164963

TERMINAL

Terminal, Z-006, X-356

8шт.

16

84127679

TERMINAL

Z-006, X-356

2шт.

16

84153403

TERMINAL

Terminal, Z-006, X-356

10шт.

16

84123443

TERMINAL

Z-006, X-356

1шт.

17

87733595

FUSE HOLDER

Z-005, X-364

1шт.

17

84123442

TERMINAL

Z-005, X-364

8шт.

17

84164962

TERMINAL

Z-005, X-364

2шт.

17

84123443

TERMINAL

Z-005, X-364

7шт.

17

84164963

TERMINAL

Terminal, Z-005, X-364

2шт.

17

84127679

TERMINAL

Z-005, X-364

1шт.

18

87733595

FUSE HOLDER

Z-004, X-363

1шт.

18

84123442

TERMINAL

Z-004, X-363

8шт.

18

84123443

TERMINAL

Z-004, X-363

6шт.

18

84164962

TERMINAL

Z-004, X-363

2шт.

18

84127679

TERMINAL

Z-004, X-363

1шт.

18

84164963

TERMINAL

Terminal, Z-004, X-363

2шт.

19

87733595

FUSE HOLDER

Z-003, X-362

1шт.

19

84127679

TERMINAL

Z-003, X-362

2шт.

19

84123443

TERMINAL

Z-003, X-362

6шт.

19

84123442

TERMINAL

Z-003, X-362

4шт.

19

84164962

TERMINAL

Z-003, X-362

2шт.

19

84164963

TERMINAL

Terminal, Z-003, X-362

2шт.

20

87733595

FUSE HOLDER

Z-002, X-361

1шт.

20

84164963

TERMINAL

Terminal, Z-002, X-361

2шт.

20

84127679

TERMINAL

Z-002, X-361

3шт.

20

84123443

TERMINAL

Z-002, X-361

4шт.

20

84123442

TERMINAL

Z-002, X-361

8шт.

20

84164962

TERMINAL

Z-002, X-361

2шт.
