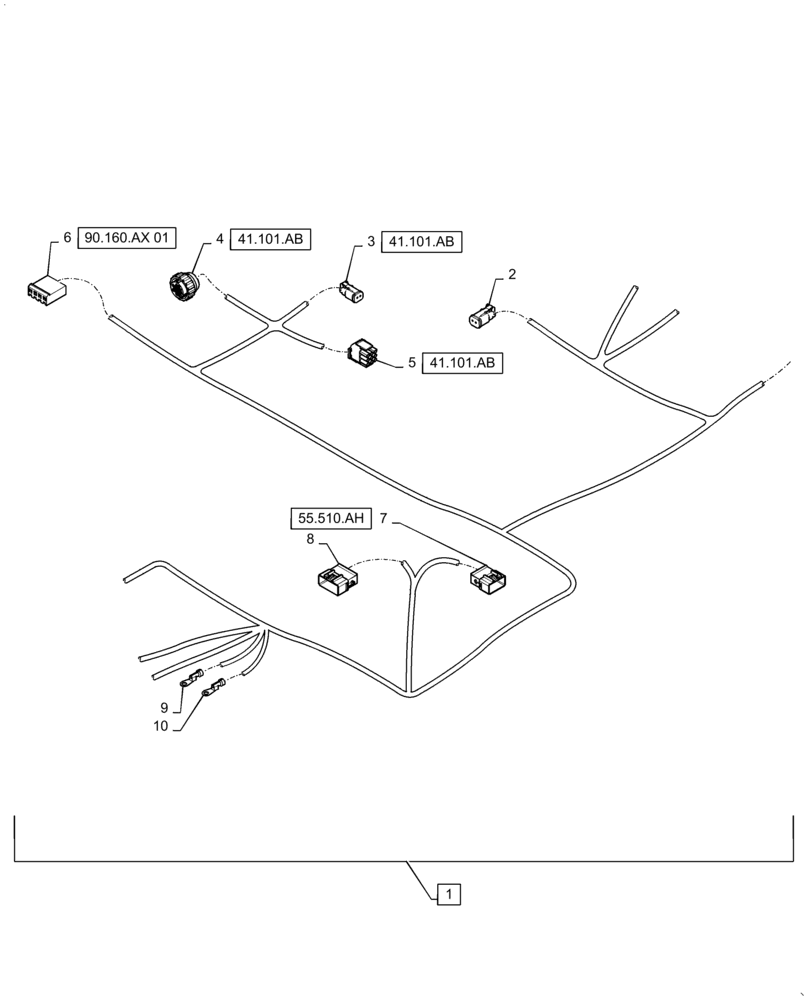

Запчасти Case IH WD2504 (55.100.DP[03]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474915

WIRE HARNESS

CM6, Incl 2 - 10 (Continued)

1шт.

2

87711966

PLUG

S-002 Seat Switch, X-109

1шт.

2

87712180

ELEC CONNECTOR

S-002 Seat Switch, X-109

1шт.

2

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

S-002 Seat Switch, X-109

2шт.

3

87695582

ELEC CONNECTOR,Female, 2 Pole

B-003 Sensor, Steering Override, X-405

1шт.

3

84074638

LOCKING TAB,Locking Wedge, Green

B-003 Sensor, Steering Override, X-405

1шт.

3

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

B-003 Sensor, Steering Override, X-405

2шт.

4

87686681

ELEC CONNECTOR

CM To SC Pass-Thru, X-279

1шт.

4

87680775

TERMINAL

CM To SC Pass-Thru, X-279

5шт.

5

87675201

ELEC CONNECTOR

S-024 Turn Indicator/Horn Switch, X-234

1шт.

5

82864512

TERMINAL

S-024 Turn Indicator/Horn Switch, X-234

5шт.

6

84520005

ELEC CONNECTOR

A-007 Module, A-Pillar Display, X-370

1шт.

6

84526553

TERMINAL

A-007 Module, A-Pillar Display, X-370

4шт.

7

84479011

ELEC CONNECTOR

CM To RM Pass-Thru, X-546

1шт.

7

84479031

TERMINAL

CM To RM Pass-Thru, X-546

6шт.

8

84278759

ELEC CONNECTOR

CM To RM Pass-Thru, X-545

1шт.

8

84278800

TERMINAL

CM To RM Pass-Thru, X-545

15шт.

9

84128198

HEAT SHIELD

GND-05 Left Cab (Under Instruct Seat) X-332

1шт.

9

84399575

TERMINAL,5/16" Ring, SAE 8

GND-05 Left Cab (Under Instruct Seat) X-332

3шт.

10

84128198

HEAT SHIELD

GND-05 Left Cab (Under Instruct Seat) X-278

1шт.

10

84399575

TERMINAL,5/16" Ring, SAE 8

GND-05 Left Cab (Under Instruct Seat) X-278

1шт.

10

84529032

TERMINAL

GND-05 Left Cab (Under Instruct Seat) X-278

1шт.
