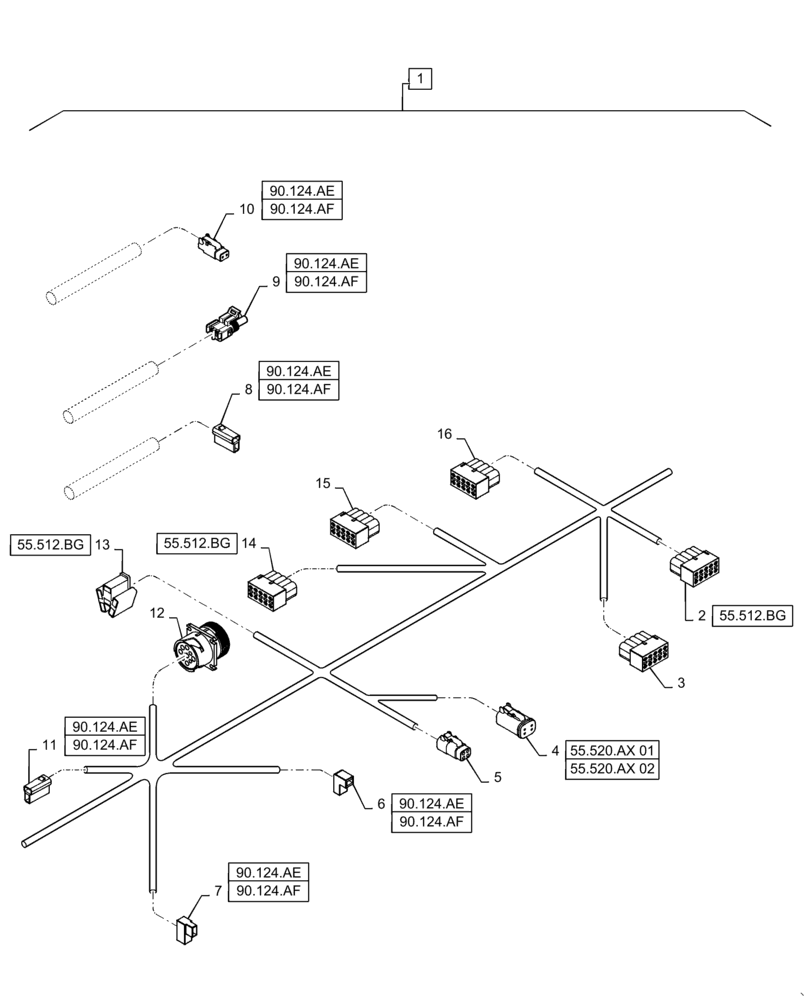

Запчасти Case IH WD2504 (55.100.DP[02]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM6 (CONT.) (55) - ELECTRICAL SYSTEMS

1

47474915

WIRE HARNESS

CM6, Incl 2 - 16 (Continued)

1шт.

2

87694668

ELEC CONNECTOR

S-014 Right Header Trim Switch (Increase/Decrease) X-087

3шт.

2

87691478

SEAL

S-014 Right Header Trim Switch (Increase/Decrease) X-087

3шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-014 Right Header Trim Switch (Increase/Decrease) X-087

1шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-102 Switch, Auto Guidance Enable X-403

1шт.

3

87694668

ELEC CONNECTOR

S-102 Switch, Auto Guidance Enable X-403

2шт.

3

87691478

SEAL

S-102 Switch, Auto Guidance Enable X-403

2шт.

4

84074640

LOCKING TAB,Wedge Lock

CM To DA Option X-028

1шт.

4

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

CM To DA Option X-028

3шт.

4

87694153

CONTACT HOUSING,Female, 4 Cavities

CM To DA Option X-028

1шт.

5

87696138

ELEC CONNECTOR

A-002 Display Module X-369

1шт.

5

87696149

ELEC CONNECTOR

A-002 Display Module X-369

1шт.

5

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

A-002 Display Module X-369

4шт.

6

84120014

ELEC CONNECTOR

J-011 Power Jack X-482

1шт.

7

84120017

ELEC CONNECTOR

J-011 Power Jack X-483

1шт.

7

371230-AL02

TERMINAL

Terminal, J-011 Power Jack X-483

1шт.

8

87697531

ELEC CONNECTOR,Female, 2 Cavities

J-006 Seat Base Power Jack X-182

1шт.

8

87697660

TERMINAL

J-006 Seat Base Power Jack X-182

2шт.

9

87692855

CONTACT HOUSING,Male, 2 Cavities

J-006 Seat Base Power Jack X-187

1шт.

9

87692876

CABLE TERMINAL,Female, Tin, 1 - 2mm

J-006 Seat Base Power Jack X-187

2шт.

9

87680701

SEAL

J-006 Seat Base Power Jack X-187

2шт.

10

87696093

ELEC CONNECTOR,Female, 2 Cavities

Z-015 Resistor, Seat Heat X-022

1шт.

10

87696145

LOCKING TAB

Z-015 Resistor, Seat Heat X-022

1шт.

10

87696954

TERMINAL,Female, Nickel, 0.35 - 1.50mm

Z-015 Resistor, Seat Heat X-022

2шт.

11

87697531

ELEC CONNECTOR,Female, 2 Cavities

J-003 Seat Pod Power Jack X-252

1шт.

11

87697660

TERMINAL

J-003 Seat Pod Power Jack X-252

2шт.

12

87706943

ELEC CONNECTOR

Diagnostics Connector X-043

1шт.

12

87695623

ELEC. TERMINAL PIN

Diagnostics Connector X-043

4шт.

13

87693713

ELEC CONNECTOR,Female, 6 Cavities

S-004 Key Switch X-147

1шт.

13

87709400

ELEC. TERMINAL PIN

S-004 Key Switch X-147

4шт.

14

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-055 Switch, Preheat X-151

1шт.

14

87694668

ELEC CONNECTOR

S-055 Switch, Prehea X-151

2шт.

14

87691478

SEAL

S-055 Switch, Prehea X-151

2шт.

15

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-071 Throttle Switch (Increase/Decrease) X-494

1шт.

15

87694668

ELEC CONNECTOR

S-071 Throttle Switch (Increase/Decrease) X-494

3шт.

15

87691478

SEAL

S-071 Throttle Switch (Increase/Decrease) X-494

3шт.

16

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-005 Switch, Return To Cut X-170

1шт.

16

87694668

ELEC CONNECTOR

S-005 Switch, Return To Cut X-170

3шт.

16

87691478

SEAL

S-005 Switch, Return To Cut X-170

3шт.
