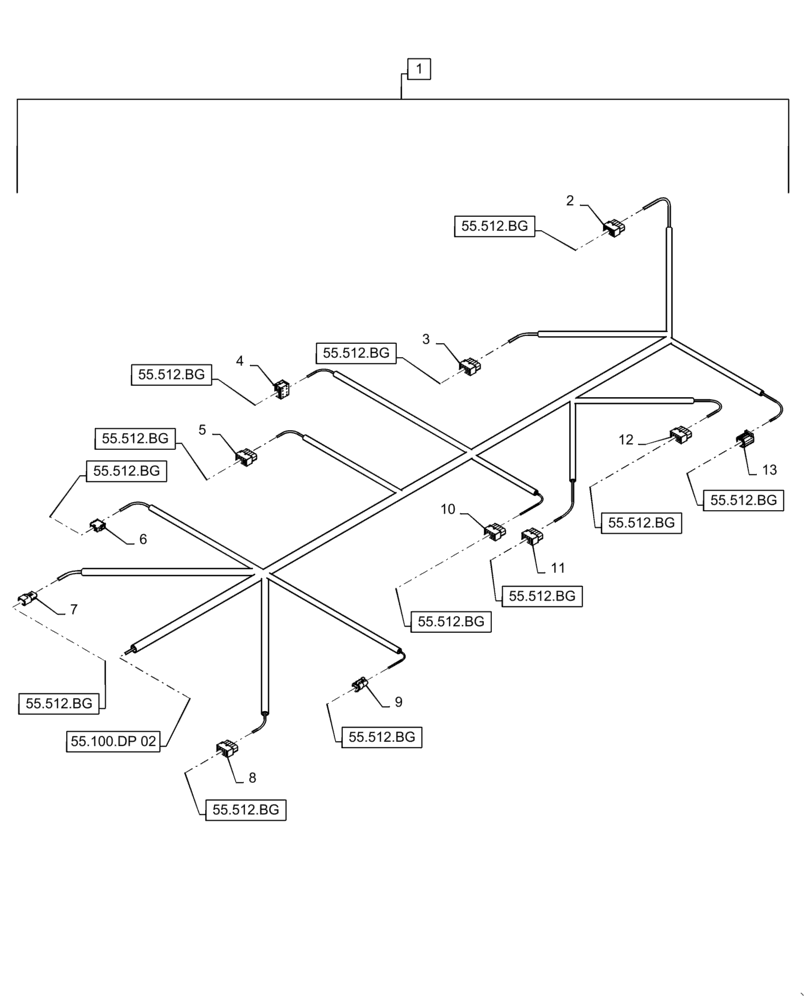

Запчасти Case IH WD2504 (55.100.DP[01]) - WIRE HARNESS & CONNECTOR, NON-DRAPER, CM6 (55) - ELECTRICAL SYSTEMS

1

47474915

WIRE HARNESS

CM6, Incl 2 - 13

1шт.

2

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-052 Header PTO Switch (Forward/Reverse), X-109

1шт.

2

87694668

ELEC CONNECTOR

Terminal, S-052 Header PTO Switch (Forward/Reverse), X-109

2шт.

2

87691478

SEAL

S-052 Header PTO Switch (Forward/Reverse), X-109

2шт.

3

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-028 Park Brake Switch, X-076

1шт.

3

87694668

ELEC CONNECTOR

Terminal, S-028 Park Brake Switch, X-076

5шт.

3

87691478

SEAL

S-028 Park Brake Switch, X-076

5шт.

4

84516561

TUBE

S-031 Switch, Merger On/Off, X-069

1шт.

4

87697756

TERMINAL

S-031 Switch, Merger On/Off, X-069

2шт.

5

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-054 Switch, Windrow Shields, X-134

1шт.

5

87694668

ELEC CONNECTOR

Terminal, S-054 Switch, Windrow Shields, X-134

3шт.

5

87691478

SEAL

S-054 Switch, Windrow Shields, X-134

3шт.

6

87694699

ELEC CONNECTOR

S-049 Multi Funtion Handle, X-066

1шт.

6

84219725

TERMINAL

S-049 Multi Funtion Handle, X-066

1шт.

6

87694716

TERMINAL

S-049 Multi Funtion Handle, X-066

4шт.

7

84817101

ELEC CONNECTOR,Male, 16 - 20 SAE

S-003 FNR Neutral Switch, X-074

1шт.

7

84817102

LOCKING TAB,Wedge Lock, 3-Pin

S-003 FNR Neutral Switch, X-074

1шт.

7

87696141

TERMINAL

S-003 FNR Neutral Switch, X-074

3шт.

8

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-018 Switch, Header Trim, Left, X-086

1шт.

8

87694668

ELEC CONNECTOR

Terminal, S-018 Switch, Header Trim, Left, X-086

3шт.

8

87691478

SEAL

S-018 Switch, Header Trim, Left, X-086

3шт.

9

87695580

ELEC CONNECTOR,Female, 3 Pole

B-054 FNR Handle Position Sensor, X-379

1шт.

9

84074639

LOCKING TAB,Wedge Lock

Lock, B-054 FNR Handle Position Sensor, X-379

1шт.

9

87695921

CONTACT,Female, Nickel, 0.50 - 1.00mm

Terminal, B-054 FNR Handle Position Sensor, X-379

3шт.

10

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-100 High Speed Ground Switch, X-081

1шт.

10

87694668

ELEC CONNECTOR

Terminal, S-100 High Speed Ground Switch, X-081

4шт.

10

87691478

SEAL

S-100 High Speed Ground Switch, X-081

4шт.

11

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-027 Switch, Reel Mode, X-082

1шт.

11

87694668

ELEC CONNECTOR

Terminal, S-027 Switch, Reel Mode, X-082

3шт.

11

87691478

SEAL

S-027 Switch, Reel Mode, X-082

3шт.

12

84159859

ELEC CONNECTOR,Female, 10 Cavities

S-013 Header Speed Switch (Increase/Decrease), X-110

1шт.

12

87694668

ELEC CONNECTOR

Terminal, S-013 Header Speed Switch (Increase/Decrease), X-110

3шт.

12

87691478

SEAL

S-013 Header Speed Switch (Increase/Decrease), X-110

3шт.

13

82002274

MULTIPOLE CONNECTOR,Female, 6 Pole

S-017 Switch, PTO Engage, X-107

1шт.

13

87680685

CABLE TERMINAL

S-017 Switch, PTO Engage, X-107

4шт.

13

82863648

SEAL

S-017 Switch, PTO Engage, X-107

4шт.
