(55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL

Запчасти Case IH WD2504 (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS

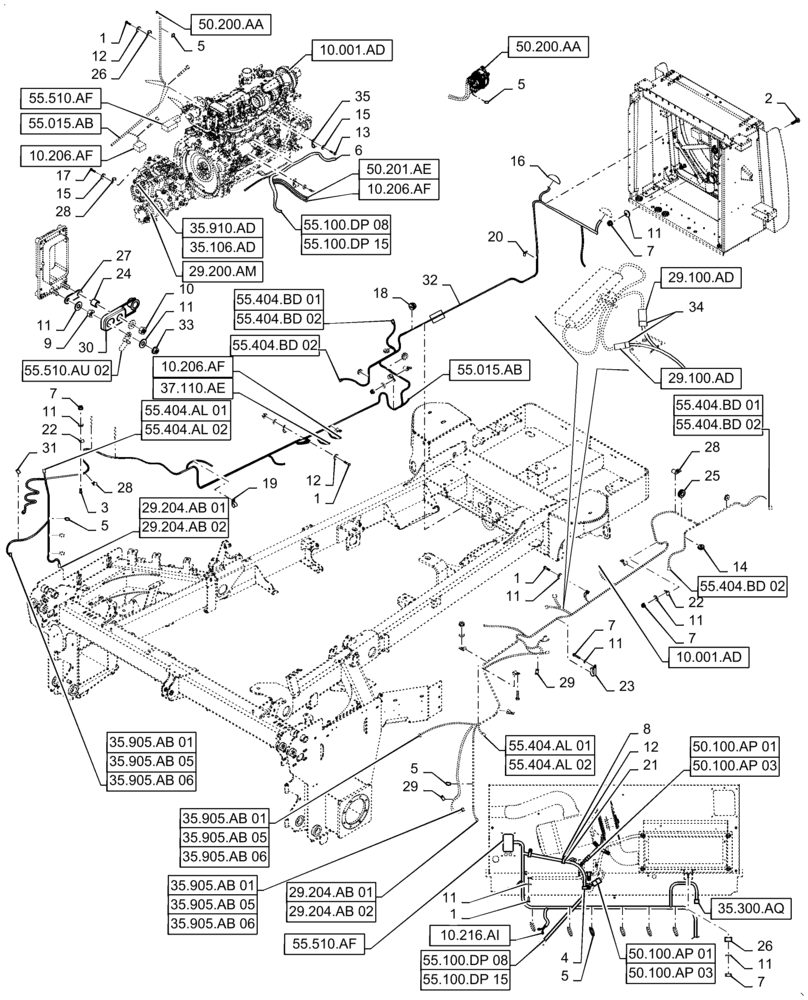

Схема запчастей Case IH WD2504 - (55.100.BZ) - REAR FRAME ELECTRIC SYSTEM CONTROL (55) - ELECTRICAL SYSTEMS
10.001.ad
5
33
3
10.001.ad
34
35.905.ab 06
11
35.905.ab 05
18
2
10.206.af
11
22
35.905.ab 05
17
55.015.ab
55.404.al 01
26
55.015.ab
55.100.dp 08
22
11
9
29
29.100.ad
29.204.ab 02
29.100.ad
28
35.905.ab 01
7
55.510.au 02
11
12
35.910.ad
7
15
11
10
5
50.100.ap 03
10.206.af
35.905.ab 01
27
13
37.110.ae
35.300.aq
29
1
5
31
29.204.ab 01
12
23
55.510.af
50.100.ap 03
29.200.am
19
16
7
32
10.206.af
11
14
10.216.ai
55.404.bd 01
29.204.ab 02
4
26
55.404.bd 01
35.905.ab 01
55.100.dp 15
30
35.905.ab 06
25
55.100.dp 08
35.905.ab 06
5
11
29.204.ab 01
1
50.100.ap 01
5
24
50.200.aa
8
35
55.404.bd 02
11
50.100.ap 01
55.404.bd 02
28
28
7
35.106.ad
55.404.al 02
21
55.100.dp 15
6
1
55.404.al 01
12
55.404.bd 02
20
55.404.al 02
35.905.ab 05
50.200.aa
55.510.af
1
11
50.201.ae
7
15
55.404.bd 02
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

2

280428

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 1", Gr 5

4шт.

3

86521553

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

4

86521613

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

86566989

CABLE TIE,208mm L

45шт.

6

84515765

WIRE HARNESS

Battery Cable

1шт.

7

86521605

FLANGE NUT,5/16"-18, Cl 5

14шт.

8

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

9

16102311

THIN NUT,Thin, M8 x 1.25, Cl 04

1шт.

10

9804278

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

11

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

21шт.

12

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

13

86977727

FLANGE BOLT,Hex, M12 x 20mm, Cl 8.8, Full Thd

2шт.

14

87742343

GROMMET,.688" x 1"

4шт.

15

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

16

87627854

LIGHT ASSY.,12V, 27W, Red

Rear Stop - Tail

2шт.

17

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

1шт.

18

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

Harness Pass Thru

1шт.

19

86637976

CLAMP,19mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

20

86572009

CLAMP,9.5mm, Coat, 10.3mm Bolt Hole, P Type

5шт.

21

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

22

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

12шт.

23

600427

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

Insulated, Closed

3шт.

24

87342153

SPACER,10.34mm ID x 15.88mm OD x 6.3mm L

Tube

1шт.

25

237915

GROMMET

No. 109

2шт.

26

9706748

CLAMP,15.9mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

27

84476466

PLATE

Bus

1шт.

28

9848767

CLAMP,17.5mm, Coat, 13.5mm Bolt Hole, P Type

Insulated, Closed

3шт.

29

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

30

84558376

COVER

Terminal, Red

1шт.

31

9827902

CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

32

47408002

WIRE HARNESS

Tail Light

1шт.

33

9706690

NUT,M8 x 1.25, Cl 8

1шт.

34

84391159

WIRE CONNECTOR

Wire Connector

2шт.

35

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

2шт.
