Запчасти Case IH WD2504 (41.200.AE[03]) - STEERING ASSY, HYDRAULIC, 6 CYLINDER (41) - STEERING

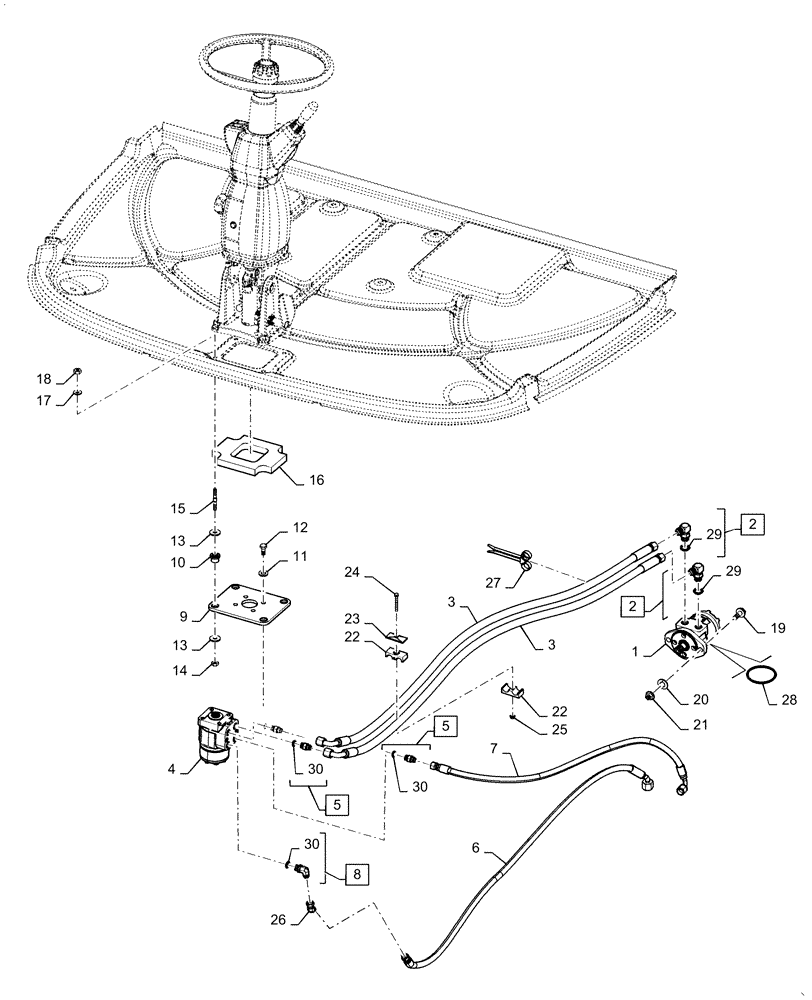

Схема запчастей Case IH WD2504 - (41.200.AE[03]) - STEERING ASSY, HYDRAULIC, 6 CYLINDER (41) - STEERING
19
13
10
28
6
2
5
12
30
8
1
7
4
21
23
20
30
30
5
16
22
9
15
14
13
3
18
3
29
27
2
26
22
17
29
25
11
24

Артикул

Название

Примечание

Количество

1

47515828

HYDRAULIC MOTOR

Steering, Incl 28

1шт.

2

9617891

ELBOW,90 Degree, 3/4" - 16 JIC x 7/8" - 14 ORB

Incl 29

2шт.

3

47579059

HYDRAULIC HOSE

R/L Steering

2шт.

4

47515829

STEERING VALVE

1шт.

5

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 30

4шт.

6

47722959

HOSE

Steering Valve Charge Pressure

1шт.

7

47434823

HYDRAULIC HOSE

Steering Valve Tank

1шт.

8

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

Incl 30

1шт.

9

84075217

PLATE

1шт.

10

601062

ISOLATOR

4шт.

11

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

12

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

13

86012639

WASHER,10.3mm ID x 31.8mm OD x 3.2mm Thk

8шт.

14

86629542

NUT,M8 x 1.25, Cl 8.8

4шт.

15

84432508

STUD,M8 x 71

4шт.

16

86974950

GASKET

1шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

18

9706690

NUT,M8 x 1.25, Cl 8

4шт.

19

86521615

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

20

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

2шт.

21

86521607

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

22

1589857

CLAMP

Hydraulic Hose

2шт.

23

87000230

PLATE

Cover

2шт.

24

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

2шт.

25

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

26

248992

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

27

84386243

CLAMP,489mm L

1шт.

28

47725943

SEAL KIT

1шт.

29

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.

30

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

5шт.

Выбрано товаров: 30
