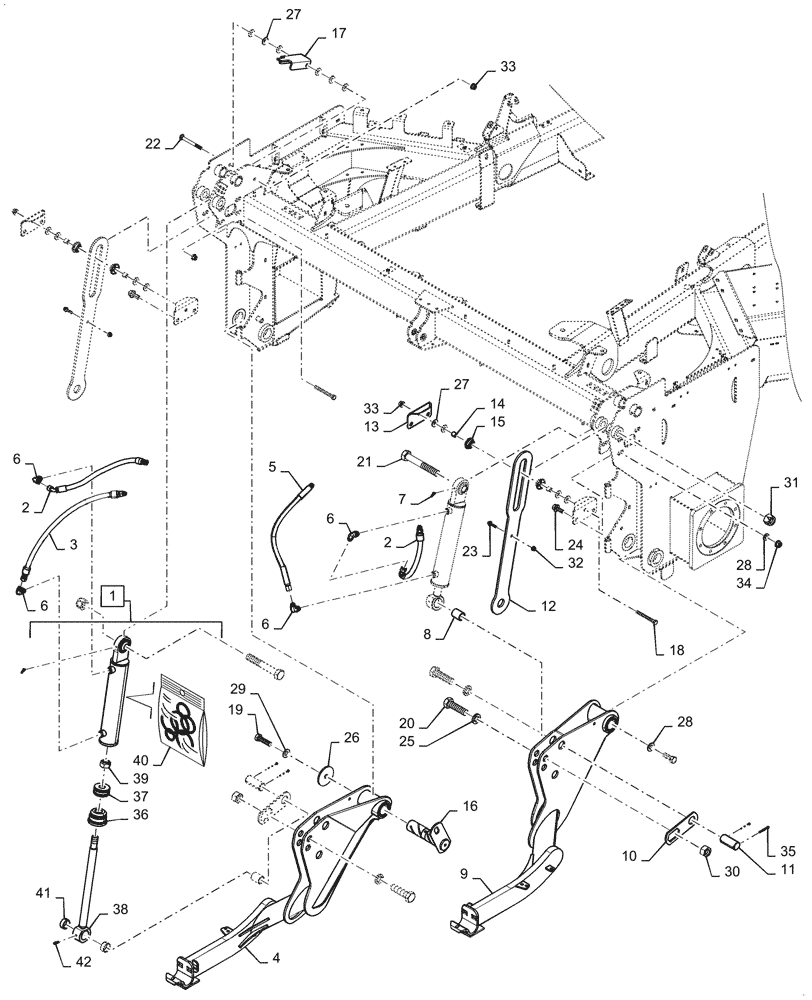

Запчасти Case IH WD2504 (35.905.AB[06]) - HYDRAULIC SYSTEM, HEADER, LIFT, NON DRAPER (6-CYL HI) (35) - HYDRAULIC SYSTEMS

1

84377916

HYDRAULIC CYLINDER,Double Acting, 31.6mm Rod, 266.7mm Stroke

2.75 x 10.50, Incl 36 - 39, 41, 42

2шт.

1

84357187

HYDRAULIC CYLINDER

Applies to MY16 Units

2шт.

2

47395552

HYDRAULIC HOSE

RH, Lift Cap

2шт.

3

47395546

HYDRAULIC HOSE

1шт.

4

47474457

LIFT ARM

RH

1шт.

4

47474458

LIFT ARM

RH

1шт.

4a

87649911

BUSHING,51.05mm ID x 63.65mm OD x 50.8mm L

Lift Arm

1шт.

5

47567886

HYDRAULIC HOSE

Lift Rod, End

1шт.

6

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

4шт.

7

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

2шт.

8

86974227

SPACER

4шт.

9

47474453

LIFT ARM

LH

1шт.

9

47474455

LIFT ARM

LH

1шт.

9a

87649911

BUSHING,51.05mm ID x 63.65mm OD x 50.8mm L

Lift Arm

1шт.

10

47476796

PLATE

Locking

2шт.

11

86637228

PIN,38.1mm OD x 91.5mm L

Dowel

2шт.

12

87039603

LINK

4шт.

12

87039602

LINK

4шт.

13

87044438

PLATE

4шт.

14

213436

SPACER

4шт.

15

86623463

SPACER

4шт.

16

86582064

PIN,50.6mm OD x 233.5mm L

2шт.

17

87044413

CHANNEL

2шт.

18

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

2шт.

19

88557

BOLT,Hex, 3/4" - 10 x 2", Gr 5, Full Thd

2шт.

20

86538216

BOLT,Hex, 1-1/8" x 4", Gr 5

2шт.

21

86619810

BOLT,Hex, 1 1/8" - 7 x 7 1/2", Gr 5

2шт.

22

280856

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 5", Gr 5

2шт.

23

86523775

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

24

86521619

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

8шт.

25

88695

LOCK WASHER,1 1/8"

2шт.

26

86502976

WASHER

.781X3.75X.250

2шт.

27

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

20шт.

28

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

8шт.

29

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

30

86624025

NUT,1 1/8"-7, G5

2шт.

31

86538215

NUT,1 1/8"-7, GB

2шт.

32

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

33

86521610

FLANGE NUT,Flg, 1/2"-13

4шт.

34

86521608

FLANGE NUT,Flg, 5/8"-11, G5

8шт.

35

87400

COTTER PIN,3/16" x 2"

4шт.

36

84389828

GLAND

Cylinder Head

1шт.

37

84389822

PISTON

Cylinder

1шт.

38

84389784

ROD

Cylinder

1шт.

39

84389824

LOCK NUT

1шт.

40

87543621

SEAL KIT

1шт.

41

84389821

BUSHING

2шт.

42

87414

LUBE NIPPLE,1/4" - 28

1шт.
