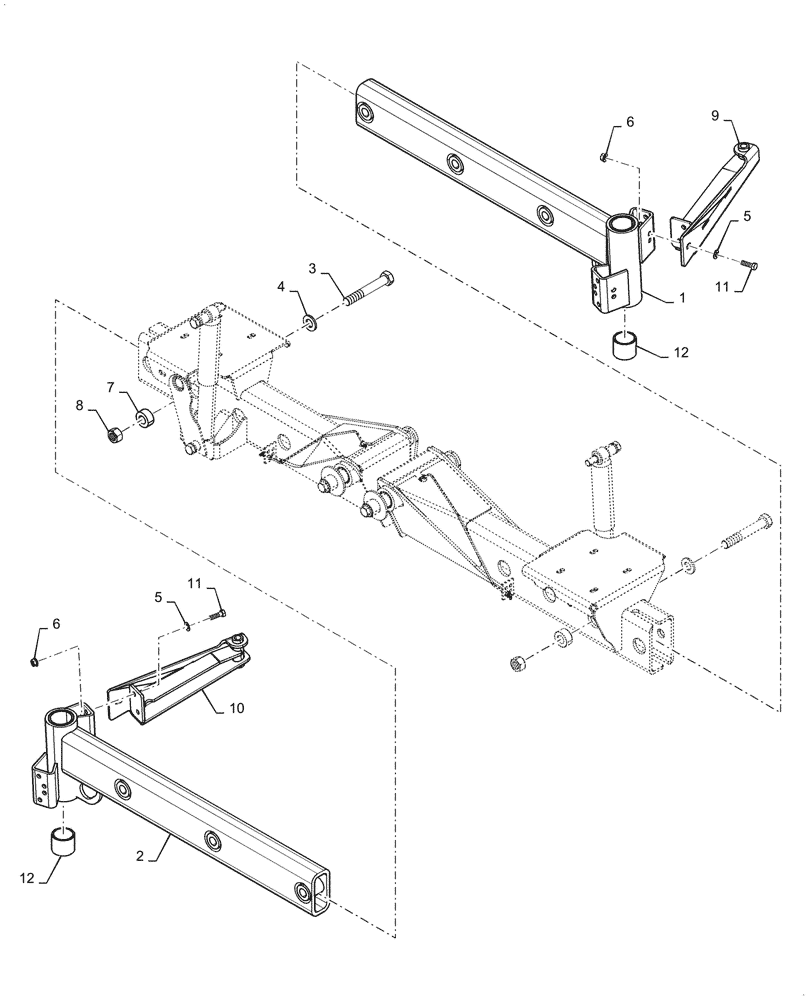

Запчасти Case IH WD2304 (27.551.AJ[02]) - AXLE EXTENSIONS, REAR, WIDE ASN YGG677501 (27) - REAR AXLE SYSTEM

1

47683063

EXTENSION

LH

1шт.

2

47683129

EXTENSION

RH

1шт.

3

18681

BOLT,Hex, 1" - 8 x 6 1/2", Gr 5

4шт.

4

86637954

WASHER,1.06" ID x 2" OD x 0.21" Thk

4шт.

5

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

16шт.

6

86521607

FLANGE NUT,Flg, 1/2"-13, G5

6шт.

7

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

8

9849633

NUT,1"-8, G5

4шт.

9

47965035

MOUNT

LH

1шт.

10

47965030

MOUNT

RH

1шт.

11

88904

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

2шт.

12

87650301

BUSHING,63.75mm ID x 76.2mm OD x 63.5mm L

2шт.
