Запчасти Case IH WD2304 (27.550.AU[01]) - SPINDLE ASSY, REAR AXLE, CAST SUPPORT, BSN YGG677499 (27) - REAR AXLE SYSTEM

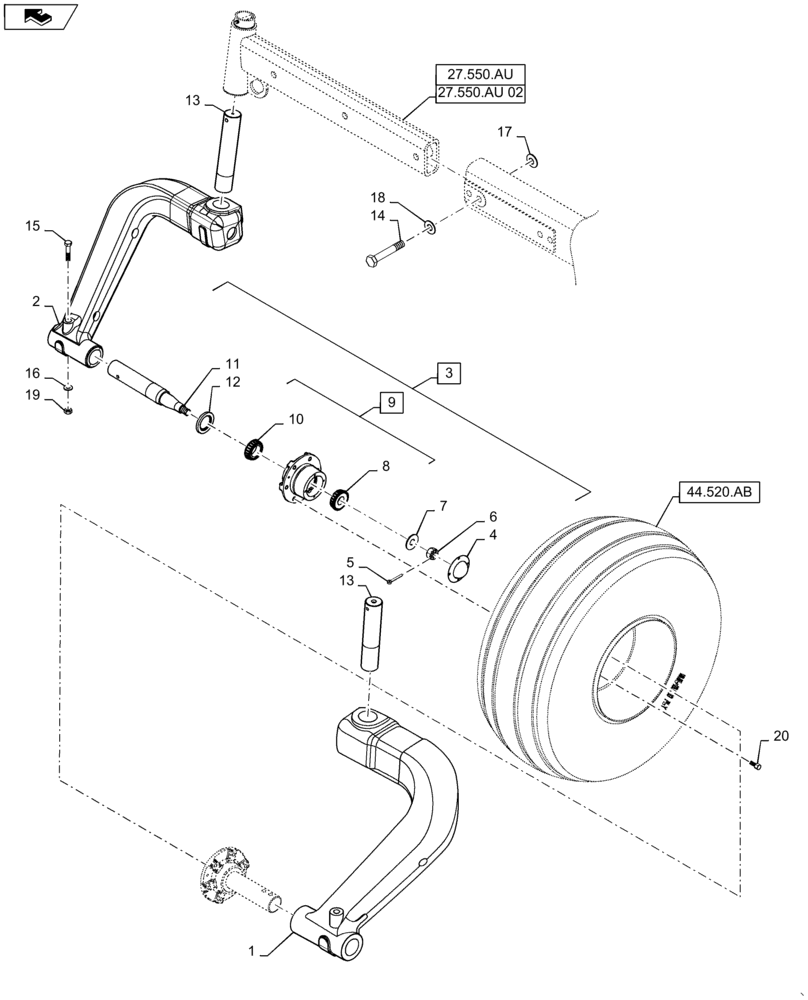

Схема запчастей Case IH WD2304 - (27.550.AU[01]) - SPINDLE ASSY, REAR AXLE, CAST SUPPORT, BSN YGG677499 (27) - REAR AXLE SYSTEM
10
11
14
13
19
27.550.au
7
9
1
3
27.550.au 02
17
2
44.520.ab
13
5
16
8
4
20
6
18
15
12

Артикул

Название

Примечание

Количество

1

47524015

ARM

LH

1шт.

2

47524019

ARM

RH

1шт.

3

84349225

HUB

Complete, Incl Ref 3 - 12

2шт.

4

86900188

CAP

Hub

1шт.

5

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

6

603373

JAM NUT,Slotted, 1" - 14, Gr 2

Slotted 1-14 GR 2 ZND

1шт.

7

87020635

WASHER

1шт.

8

67527

ROLLER BEARING,45.26mm ID x 19.84mm W

1шт.

9

87021258

HUB

Complete, Cups Are NSS From Assembly

1шт.

10

199954

BEARING CONE,50mm ID x 21.5mm W

1шт.

11

84349220

SPINDLE

Spindle Shaft

1шт.

12

245856

OIL SEAL,57.15mm ID x 82.75mm OD x 6.76mm Thk

1шт.

13

47486734

SPINDLE

Kingpin, 1 Per Side

2шт.

14

300809

BOLT,Hex, M12 x 1.75 x 65mm, Cl 8.8

2 Per Side

4шт.

15

86507000

BOLT,Hex, 5/8" - 11 x 6 1/2", Gr 5

1 Per Side

2шт.

16

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1 Per Side

2шт.

17

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2 Per Side

4шт.

18

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2 Per Side

4шт.

19

86521608

FLANGE NUT,Flg, 5/8"-11, G5

1 Per Side

2шт.

20

198056

WHEEL BOLT,1/2" - 20 x 1.031"

6 Per Side

12шт.

Выбрано товаров: 20
