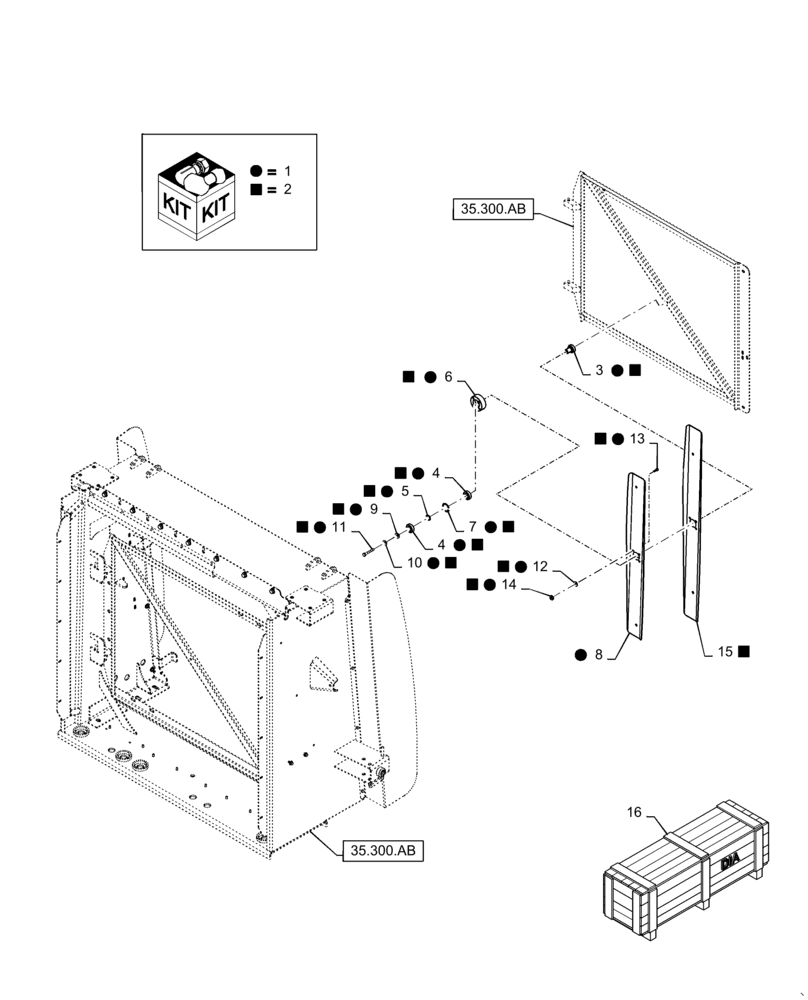

Запчасти Case IH WD2304 (10.418.BC) - WIPER ARM, CHAFF (10) - ENGINE

1

47635720

KIT

Chaff Wiper, Incl 2 - 14

1шт.

2

47635733

KIT

Chaff Wiper, 4 Cylinder, Incl 3 - 7, 9 - 15, Incl with 1

1шт.

3

47561720

SHAFT

Blade, Incl with 1, 2

1шт.

4

86629503

BALL BEARING,17mm ID x 35mm OD x 10mm W

Shaft, Incl with 1, 2

2шт.

5

84334251

WASHER,17.5mm ID x 24mm OD x 2mm Thk

Incl with 1, 2

1шт.

6

47598598

BUSHING

Shaft, Incl with 1, 2

1шт.

7

300642

CIRCLIP,M35 x 1.5mm W, Internal

Incl with 1, 2

1шт.

8

47499754

WIPER BLADE

Incl with 1

1шт.

9

86592711

WASHER,8.4mm ID x 21mm OD x 4mm Thk

Incl with 1, 2

1шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

Incl with 1, 2

1шт.

11

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

Incl with 1, 2

1шт.

12

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

Incl with 1, 2

4шт.

13

84058583

HEX SOC SCREW,BTN HD, M6 x 16mm, Cl 8.8

Incl with 1, 2

4шт.

14

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

Incl with 1, 2

4шт.

15

47499707

WIPER BLADE

Incl with 2

1шт.

16

47490211

KIT

DIA, Chaff Wiper, 6 Cyl; Instruction 47635323

1шт.
