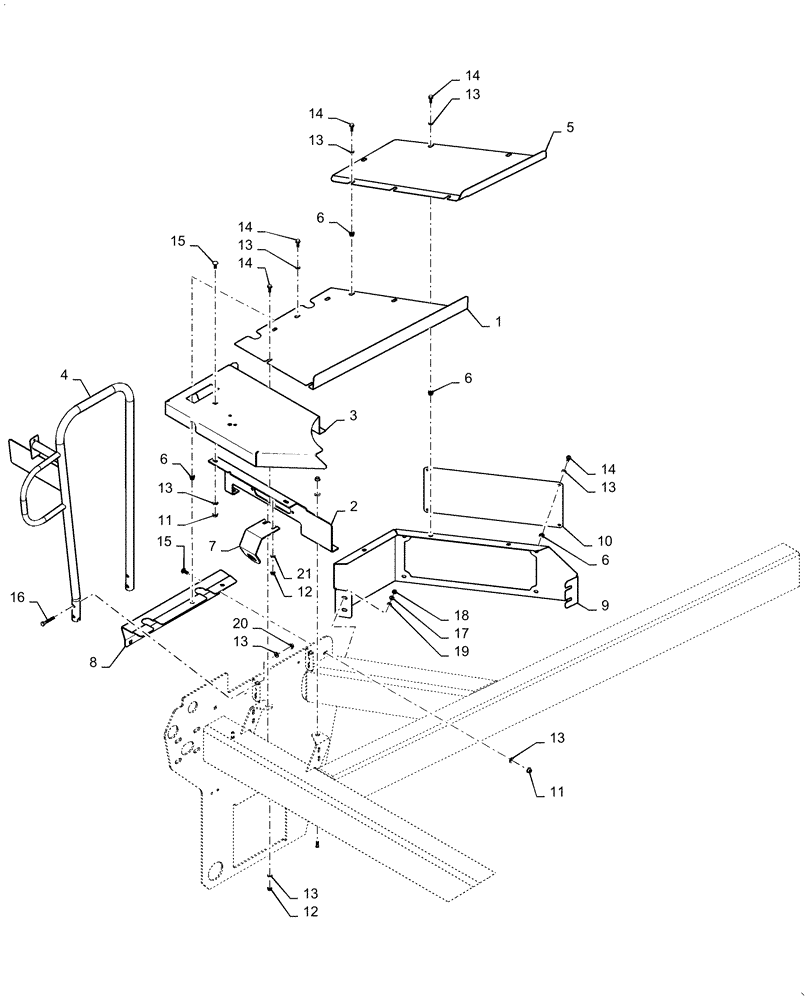

Запчасти Case IH WD2304 (90.118.CB[02]) - PLATFORM, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47573224

PLATE

Dark Grey

1шт.

1

47573226

PLATE

Red

1шт.

2

47614707

PANEL

RH

1шт.

3

47573247

COVER

Dark Grey

1шт.

3

47573253

COVER

Red

1шт.

4

84486461

HANDRAIL

Dark Grey

1шт.

4

84486459

HANDRAIL

Red

1шт.

5

47573234

SUPPORT

Dark Grey

1шт.

5

47573236

SUPPORT

Red

1шт.

6

86539811

SPRING NUT

3/8"-16

12шт.

7

87031861

BRACKET

1шт.

8

47574033

SUPPORT

Dark Grey

1шт.

8

47574035

SUPPORT

Red

1шт.

9

47573218

SUPPORT

Dark Grey

1шт.

9

47573221

SUPPORT

Red

1шт.

10

47573229

PLATE

Dark Grey

1шт.

10

47573230

PLATE

Red

1шт.

11

86521606

FLANGE NUT,Hex, 3/8" - 16, Gr 5

6шт.

12

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

13

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

22шт.

14

280523

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

12шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

4шт.

16

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

17

86513238

LOCK WASHER,.515” ID x 1.070” OD x .120” TK

4шт.

18

86521607

FLANGE NUT,Flg, 1/2"-13, G5

4шт.

19

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

4шт.

20

86521609

FLANGE NUT,Flg, 3/8"-16

4шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.
