Запчасти Case IH WD2304 (55.911.AB[02]) - GPS RECEIVER ANTENNA MOUNTING PARTS, HP/XP (55) - ELECTRICAL SYSTEMS

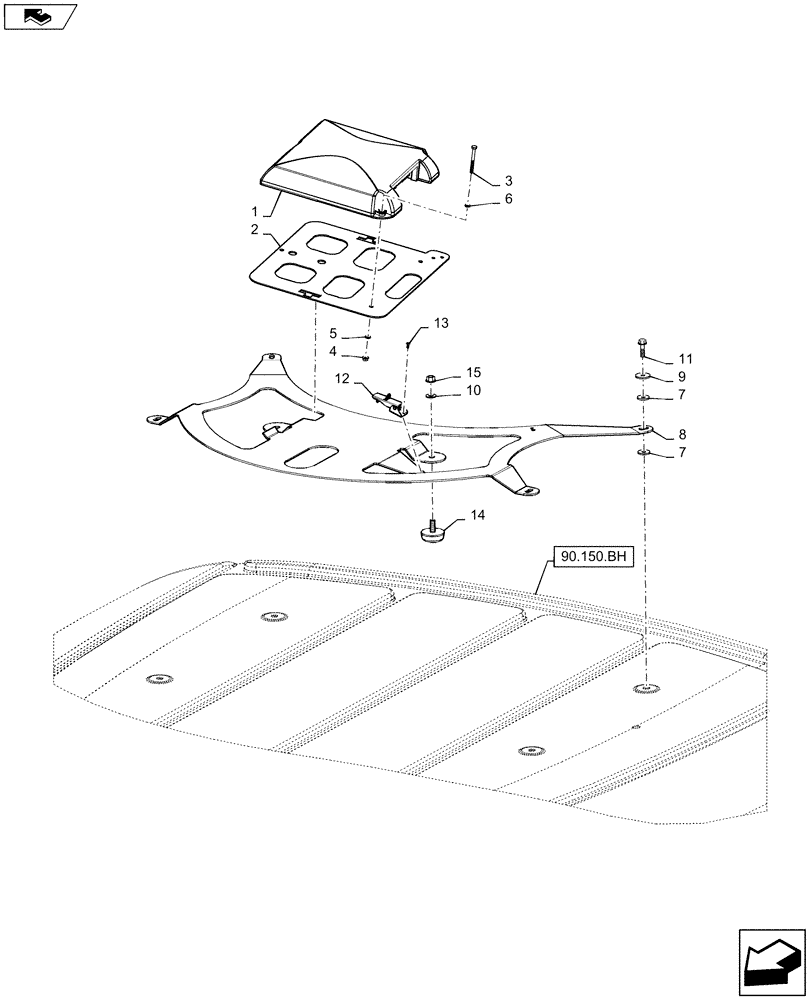

Схема запчастей Case IH WD2304 - (55.911.AB[02]) - GPS RECEIVER ANTENNA MOUNTING PARTS, HP/XP (55) - ELECTRICAL SYSTEMS
12
9
7
14
10
5
1
11
15
8
4
7
13
3
6
90.150.bh
2

Артикул

Название

Примечание

Количество

1

48036755

GPS RECEIVER

AFS 372, W/E/V/HP/XP

1шт.

2

47857473

KIT

GPS

1шт.

3

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

3шт.

4

86511444

FLANGE NUT,Hex, M6 x 1

3шт.

5

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

3шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

7

87026367

RUBBER WASHER

8шт.

8

84401758

SUPPORT

Roof, GPS Mounting

1шт.

9

87013351

WASHER,0.34" ID x 1.25" OD x 0.12" Thk

4шт.

10

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

11

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

12

87308870

LATCH

Undercenter With Padlock Hasp

1шт.

13

425520

RIVET,Pop, 3.96mm OD x 10.4mm L

4x10 AL-ESP3.06

2шт.

14

190029

STOP,M10 x 1.0 x 20mm OD, Rubber

2шт.

15

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 15
